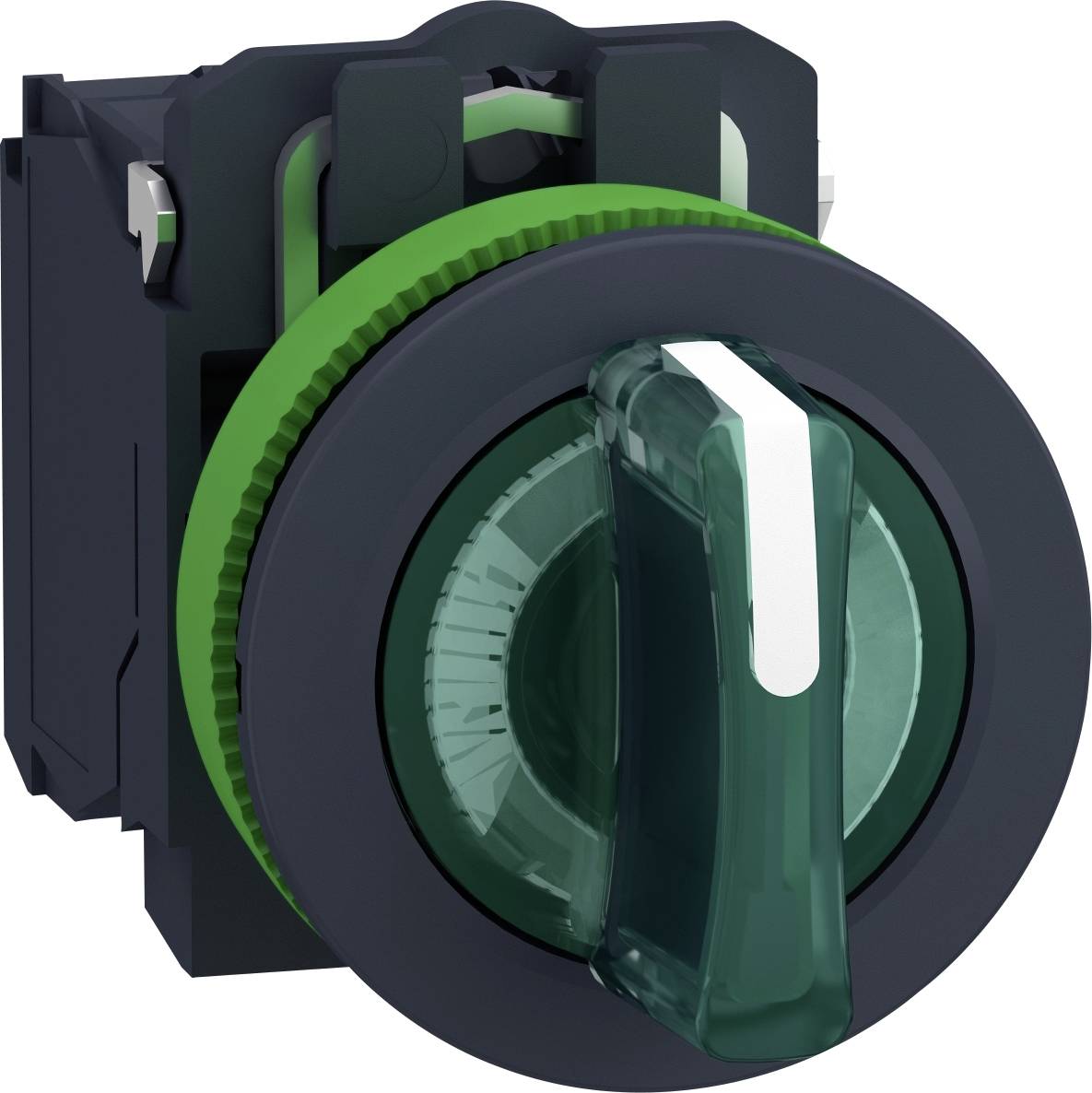

Schneider Electric XB5FK133B5 XB5FK133B5 Selector switch Front ring (PVC) Rotary switch Green 3 x +/- 45 ° 1 pc(s) Piece
EAN:
Part number:
Item no:
Technical specifications
- Material: Dark gray plastic
- Nominal auxiliary voltage [UH,nom]: 24 V AC/DC at 50/60 Hz
- Tightening torque 0.8…1.2 Nm
- Operating position information: 3 positions +/- 45°
- Operation of the contacts: Graduated switching
- Contact material: Silver alloy (AG/Ni)
- Packaging type
Piece
- Product type
Selector switch
- Switch/button features
Front ring (PVC)
- Lighting type
LED
- Bulb type
LED (monochrome)
- Operation type
Rotary switch
- Colour
Green
- Factory colour
Green
- Case colour
Dark grey
- Print motif
Blank
- Connection
Screw terminal
- Shape
Round
- Functions
latch
- Contact type
1 maker
1 breaker
- Durability
1 000 000 cycles
- Recess diameter
30.5 mm
- Type
Complete; flush; standard handle
IP66
IP67
IP69
IP69K
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Switching voltage
600 V
- Switching current (max.)
6 A
- Switching angle
3 x +/- 45 °
- Width
36.6 mm
- Height
42 mm
- (Ø)
30.5 mm
- Content
1 pc(s)
- Dim
(Ø x H) 30.5 mm x 42 mm
- Depth
71 mm
- Type
XB5FK133B5
- UKCA
yes
