Schneider Electric ZB5FL6 ZB5FL6 Pushbutton front piece protruding 1-button Push 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Pushbutton front piece
- Switch/button features
protruding
- Operation type
1-button
- Button Ø
30 mm
- Unlocking mechanism
Push
- Functions
momentary
- Recess diameter
30 mm
IP66
IP67
IP69
IP69K
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
37 mm
- Height
37 mm
- Content
1 pc(s)
- Dim
(W x H x D) 37 x 37 x 30 mm
- Depth
30 mm
- Type
ZB5FL6
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1981564 Schneider Electric ZB5FL6 ZB5FL6 Pushbutton front piece protruding 1-button Push 1 pc(s)
Description

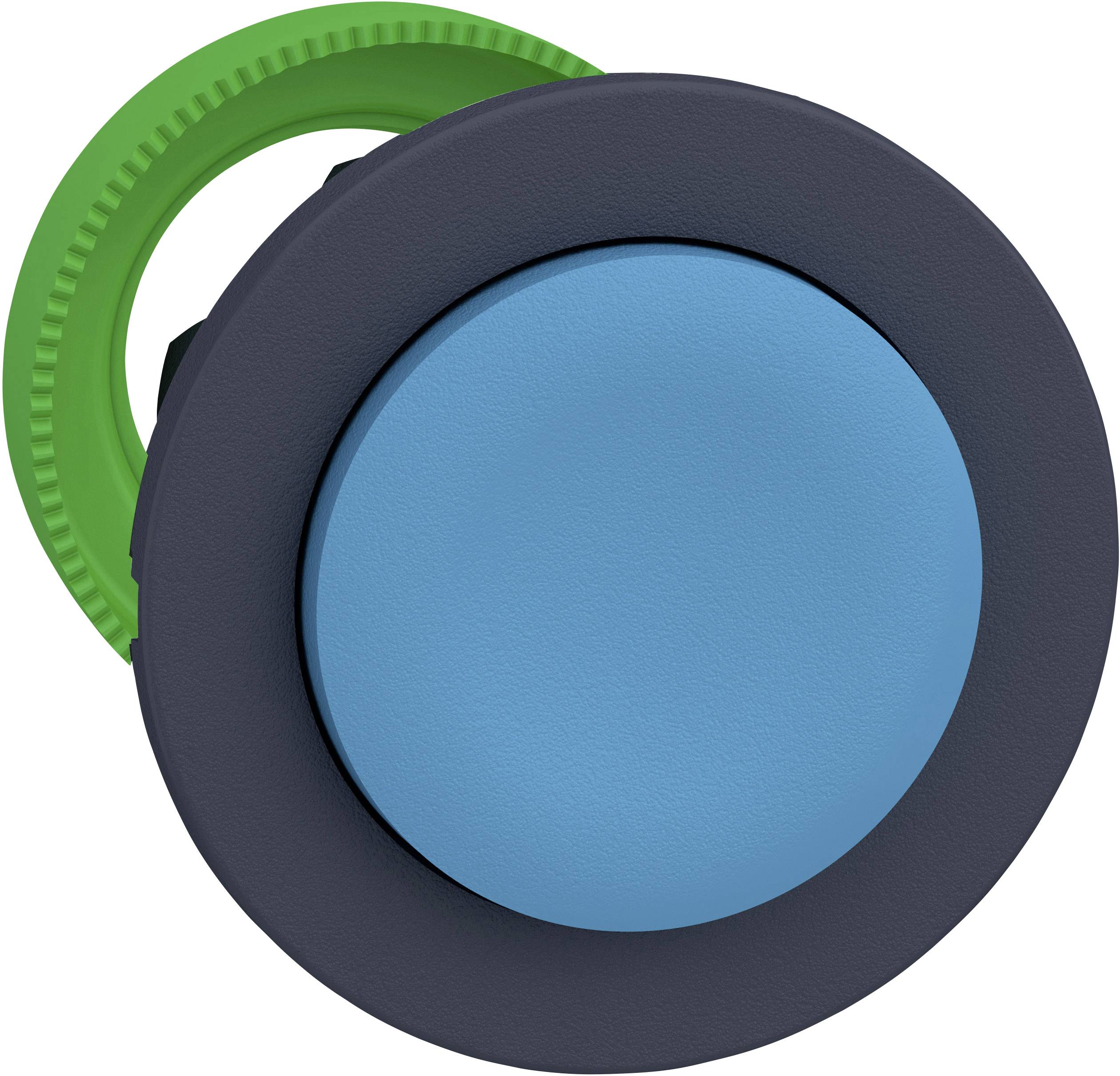

Push button 30mm diameter (prominent) front element made of plastic for flush, flat installation. Compatible with the standard mounting flange and auxiliary contacts of the XB5 series. Designed with the highest degree of ruggedness for industry.
