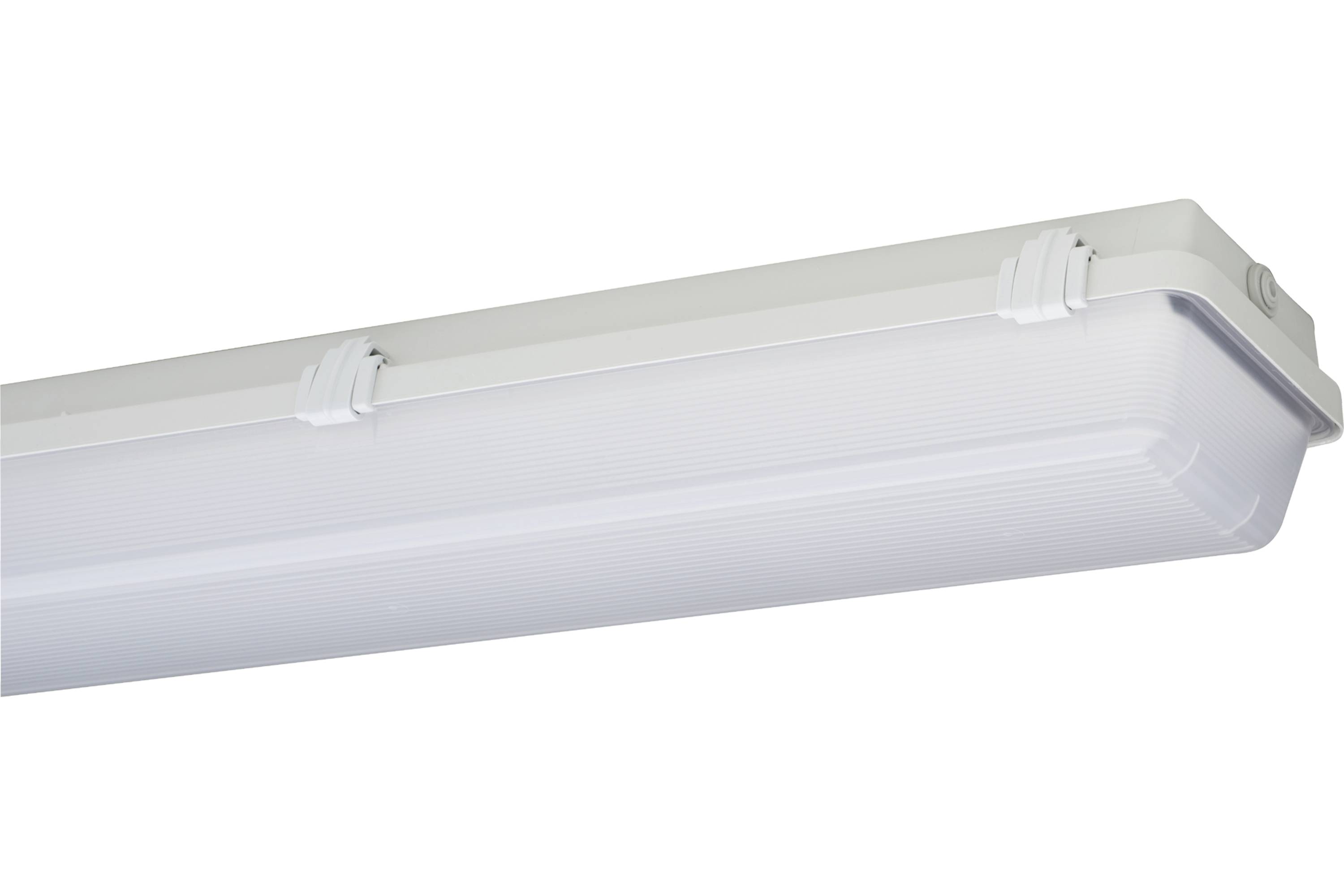

Schuch 162 12L42 T40 H70 LED wet room diffusor LED (monochrome) 26 W White Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 26 W
- Total luminous flux= 4440 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED wet room diffusor
- Bulb type
LED (monochrome)
- Length
1272 mm
26 W
- Height
125 mm
- Width
197 mm
4000 K
- Colour
White
- Total luminous flux
4440 lm
- Light features
Incl. ballast
Direct light emission
Ceiling mount option
Usable as a pendant light
IP65
IK09
- Factory colour
Grey
- Material
Plastic
- Dim

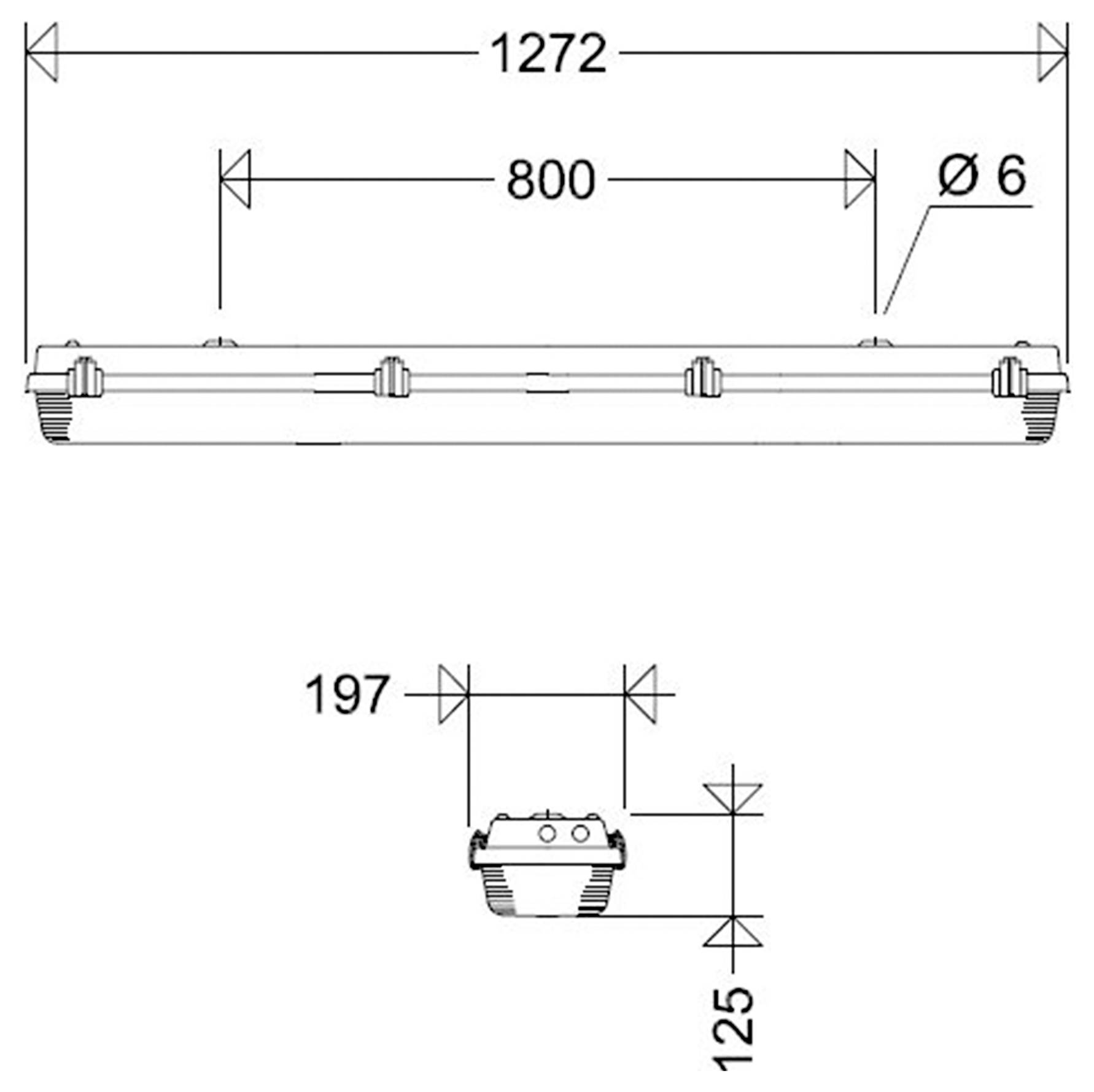

(L x W x H) 1272 x 197 x 125 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770316 Schuch 162 12L42 T40 H70 LED wet room diffusor LED (monochrome) 26 W White Grey
User & Safety Instructions
User & Safety Instructions 3770316 Schuch 162 12L42 T40 H70 LED wet room diffusor LED (monochrome) 26 W White Grey
Description
LED wet room diffusor, 26 W, 4440 lm, SKI, IP65, symmetric-wide-radiation, 4000 K, Ra≥ 80, Ta -40 °C/+70 °C, L90>50000>h (@ Ta 25°C), L80 70000>h (@ Ta max), L70 100000 h (@ Ta max), tub PC satin, shutter plastic, case glass-fiber reinforced polyester, color gray, EAN/GTIN:4041254355931.Robust LED wet-room diffuser lights for high ambient temperatures and wide temperature ranges. High impact resistant glass fiber reinforced polyester housing and satin finish tub with high impact resistance. Multi-part captive fasteners, including two safety catch, silicone seal. Painted aluminum reflector with highly efficient Zhaga-compliant LED modules and electronic ballast with overload and short circuit protection.
