Schuch 162 15L120TB LED wet room diffusor LED (monochrome) 78 W White Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 78 W
- Total luminous flux= 11960 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED wet room diffusor
- Bulb type
LED (monochrome)
- Length
1572 mm
78 W
- Height
125 mm
- Width
197 mm
4000 K
- Colour
White
- Total luminous flux
11960 lm
- Light features
Incl. ballast
Direct light emission
Ceiling mount option
Usable as a pendant light
IP65
IK05
- Factory colour
Grey
- Material
Plastic
- Dim

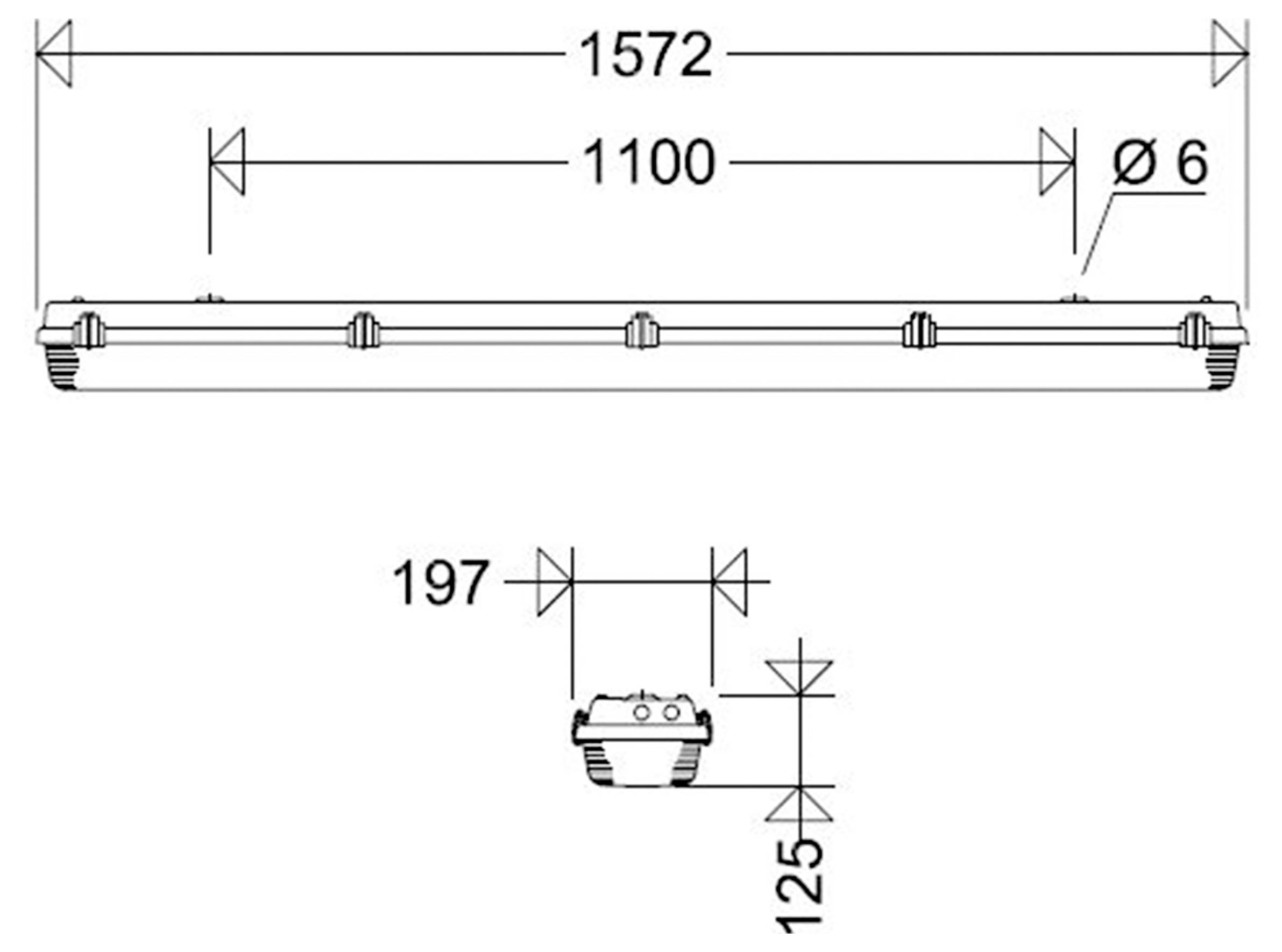

(L x W x H) 1572 x 197 x 125 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770180 Schuch 162 15L120TB LED wet room diffusor LED (monochrome) 78 W White Grey
User & Safety Instructions
User & Safety Instructions 3770180 Schuch 162 15L120TB LED wet room diffusor LED (monochrome) 78 W White Grey
Description
LED wet room diffusor, 78 W, 11960 lm, SKI, IP65, deep-wide radiant, 4000 K, Ra≥ 80, Ta -20 °C/+40 °C, L90>50000 h>(@ Ta 25°C), L80 70000>h (@ Ta max), L70 100000 h (@ Ta max), tank PMMA satin, plastic closure, glass fiber reinforced polyester housing, color gray, EAN/GTIN:4041254276274.Robust LED wet-room diffuser lights with highly impact resistant glass fiber reinforced polyester housing and satin finish tub with high impact resistance. Multi-part captive fasteners, including two safety catch, silicone seal. Painted aluminum reflector with highly efficient Zhaga-compliant LED modules, optics with deep-beam light distribution and electronic ballast with overload and short-circuit protection.
