Schuch 185 06L30 SSK LED sheet steel light LED (monochrome) 22 W White Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 22 W
- Total luminous flux= 3100 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED sheet steel light
- Bulb type
LED (monochrome)
- Length
647 mm
22 W
- Height
109 mm
- Width
294 mm
4000 K
- Colour
White
- Total luminous flux
3100 lm
- Light features
Incl. ballast
Direct light emission
Ceiling mount option
Usable as a pendant light
IP65
IK07
- Factory colour
Grey
- Material
Steel
Glass
- Dim

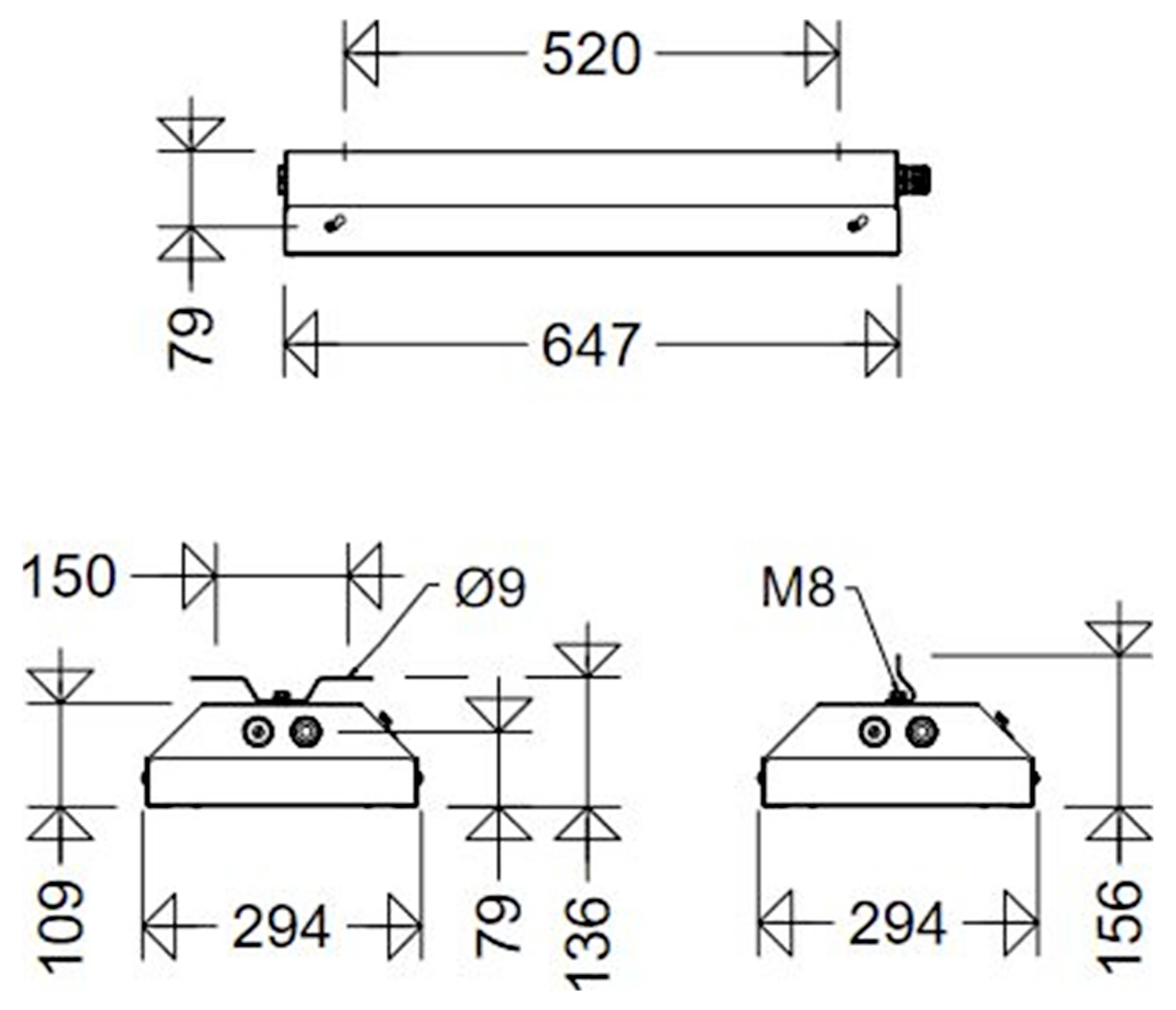

(L x W x H) 647 x 294 x 109 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Colour temperature range
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770265 Schuch 185 06L30 SSK LED sheet steel light LED (monochrome) 22 W White Grey
User & Safety Instructions
User & Safety Instructions 3770265 Schuch 185 06L30 SSK LED sheet steel light LED (monochrome) 22 W White Grey
Description
LED steel plate light, 22 W, 3100 lm, SKI, IP65, symmetric-wide radiation, 4000 K, Ra≥ 80, Ta -20 °C/+55 °C, L90>50000 h (@ Ta 25°C), L80>70000 h>(@ Ta max), L70 100000 h (@ Ta max), clear window, protective cover, steel housing, painted, safety glass Grey color, RAL 7035, pure-out wiring (RR), LABS-tested according to VDMA 24364-C2-L, central shutter, for radiation chambers/cabins (SSK), delivery status: partially assembled!, EAN/GTIN:4041254360225. Extremely flat LED pitched roof lights for use in jet rooms and jet cabins. Steel sheet casing without external locking parts, frameless clear safety glass, central lock with interior hinges as well as pre-set, easily replaceable PC cover with stainless steel frame. Painted steel reflector with Zhaga-compliant LED modules, satin blend elements and EVG with overload and short circuit protection.
