Schuch 3301 L210 330100001 LED pendant light LED (monochrome) 135 W Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
LED pendant light
- Bulb type
LED (monochrome)
135 W
4000 K
- Colour
White
- Total luminous flux
20200 lm
- Light features
Incl. ballast
Incl. cover
- Protection class
I
IP65
IK10
- Factory colour
Grey
- Material
Aluminium
- Dim

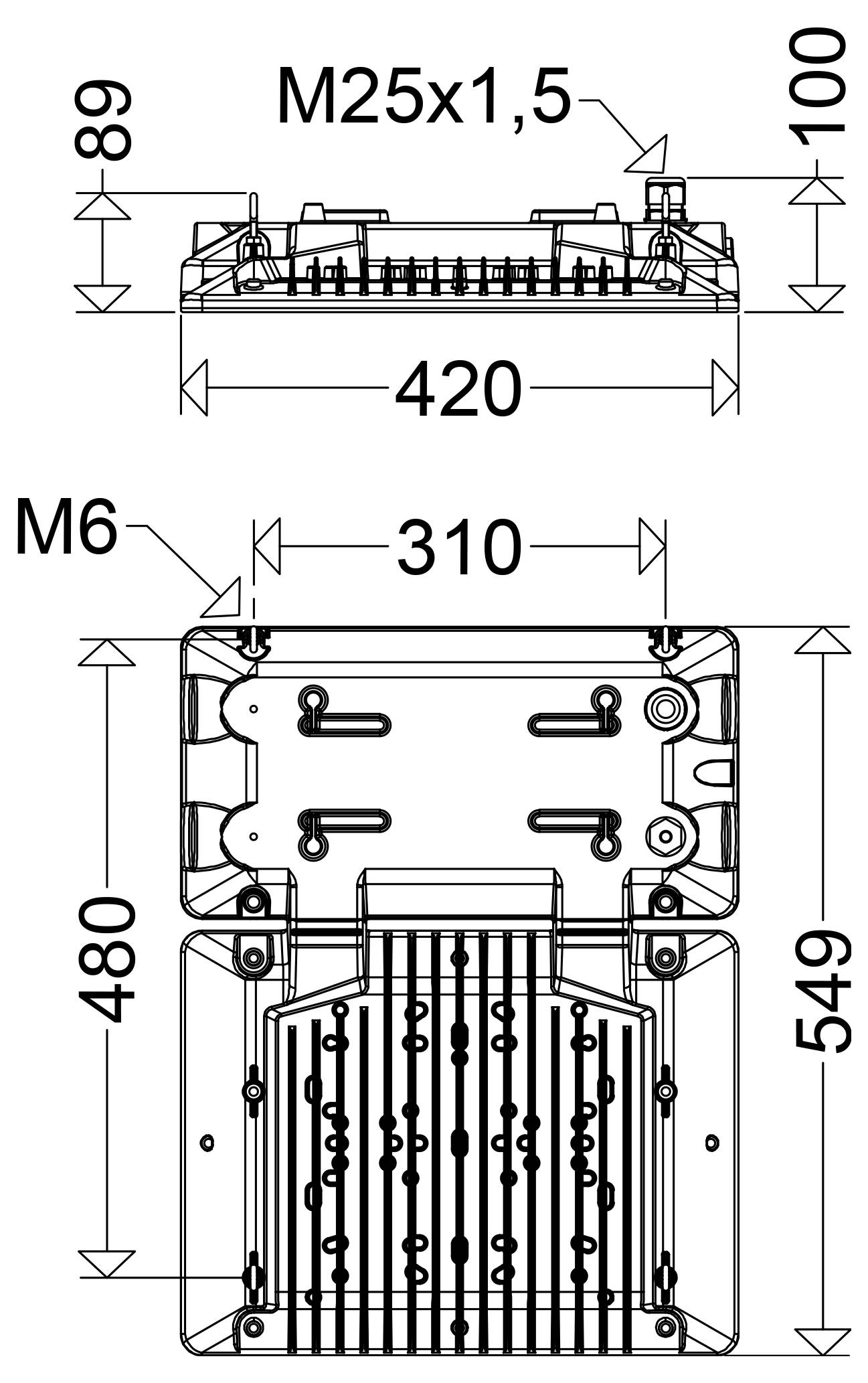

(L x W x H) 549 x 420 x 100 mm
n.rel.
- Colour rendering index
80-89
- Colour temperature range
4000 K
- Width
420 mm
- Height
100 mm
- Length
549 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770106 Schuch 3301 L210 330100001 LED pendant light LED (monochrome) 135 W Grey
User & Safety Instructions
User & Safety Instructions 3770106 Schuch 3301 L210 330100001 LED pendant light LED (monochrome) 135 W Grey
Description

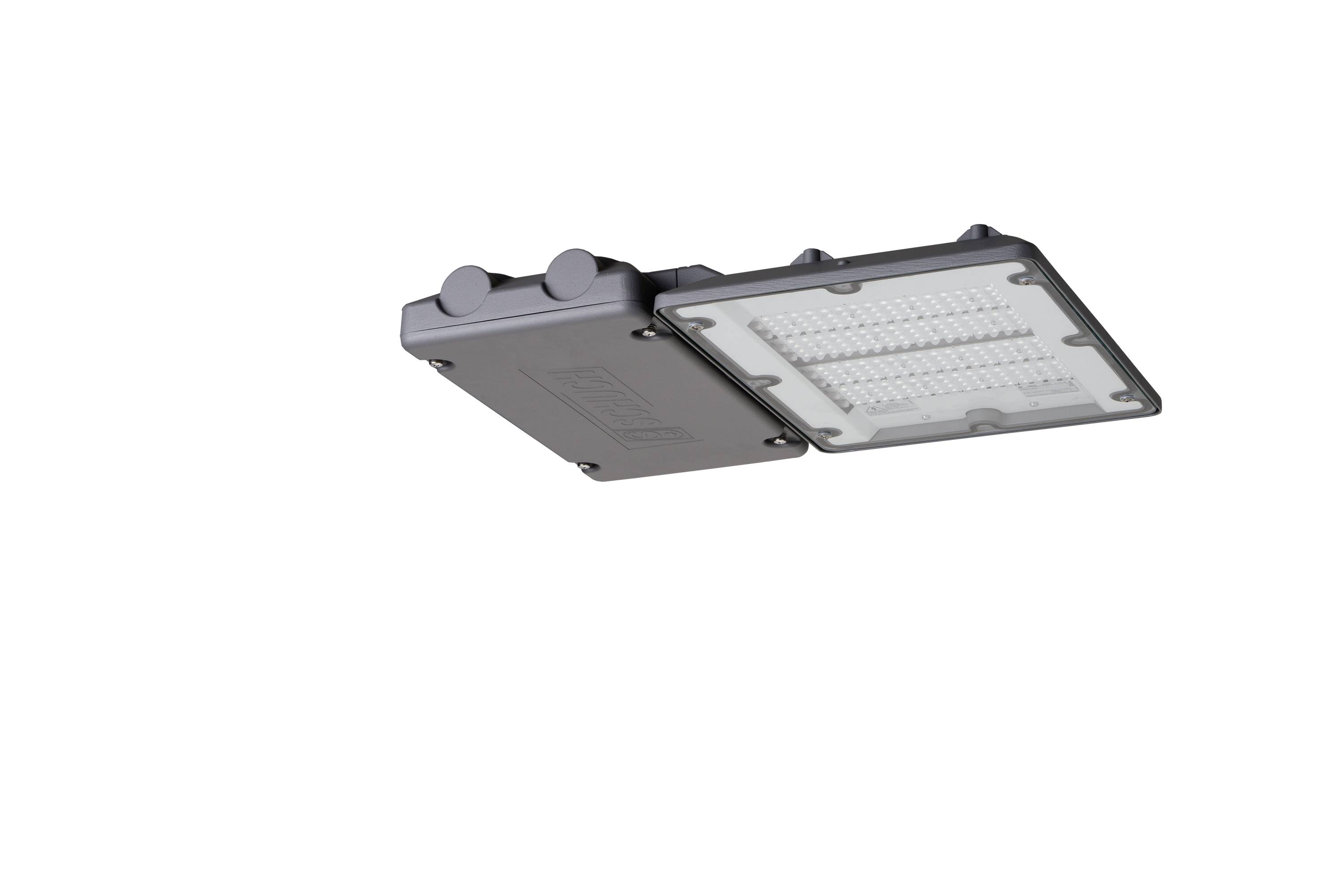

LED hall lamp, DUEVO, 135 W, 20200 lm, SKI, IP65, wide radiation, 4000 K, Ra≥ 80, Ta -25 °C/+50 °C, L70>100000 h (@ Ta max), L90>50000 h (@ Ta 25°C), glass safety glass clear, stainless steel cover (1.4301), die-cast aluminum housing, painted, Colour gray, DB 702, for rooms with increased danger of fire (D), EAN/GTIN:4041254313757.LED hall lamp DUEVO of the GreenLine series with excellent sustainable product design. Casing made of powder-coated aluminum die-cast, multi-part, thermally separated. Housing ready-wired, smooth surface without cooling fins. LED casing with LED modules, frameless, flat safety glass, thermally hardened, upper side of housing with flat cooling rib structure. Zhaga-conforming LED modules, multi-layer technology, with direct connection to the housing for an optimum thermal management. EVG with overload and short-circuit protection. For fixing, see "Optional accessories".
