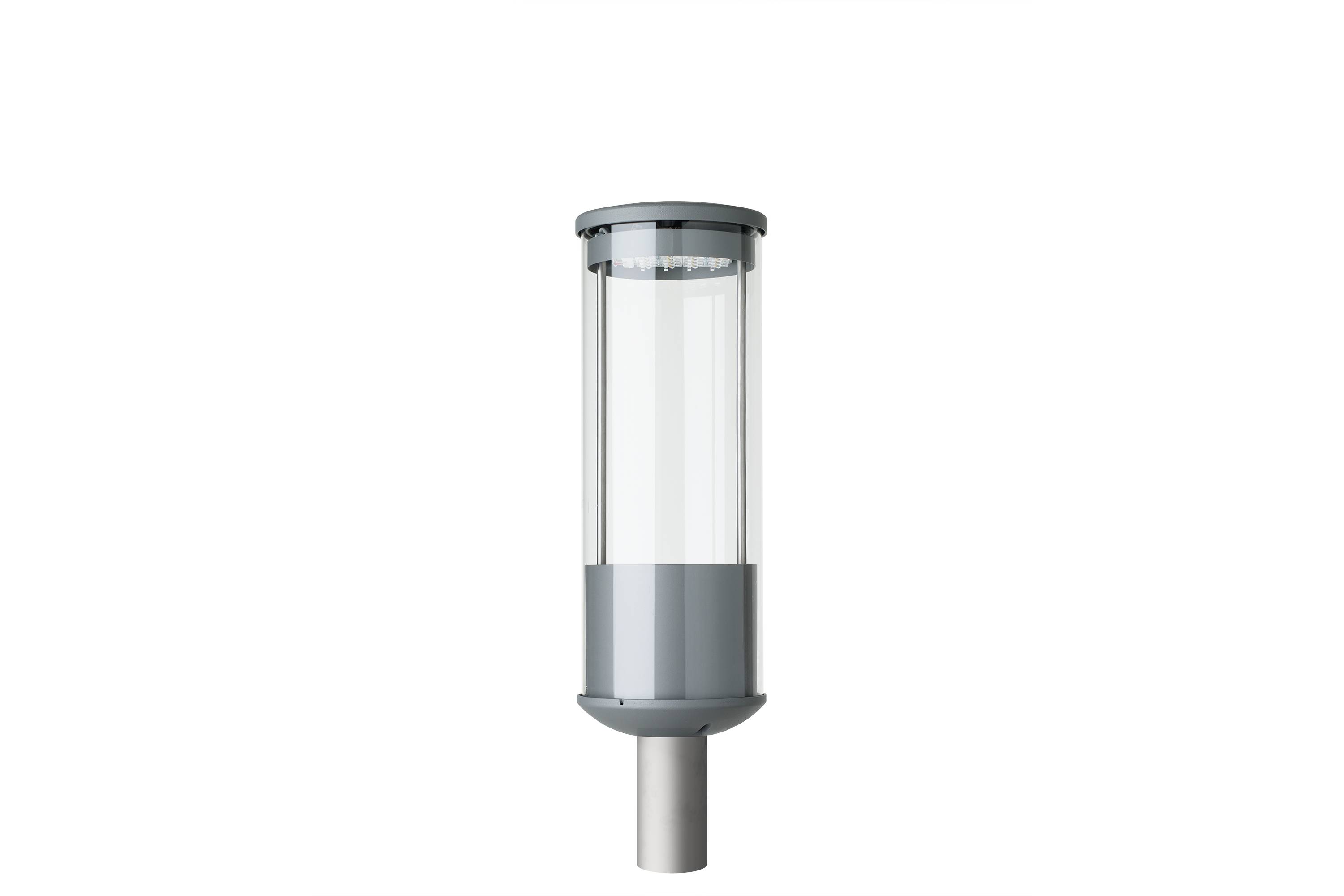

Schuch 558 1601R G2 558010010 LED light attachment LED (monochrome) 17 W Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
LED light attachment
- Bulb type
LED (monochrome)
17 W
4000 K
- Colour
White
- Total luminous flux
2850 lm
- Light features
Incl. ballast
- Protection class
II
IP54
IK06
- Factory colour
Grey
- Material
Aluminium
Plastic

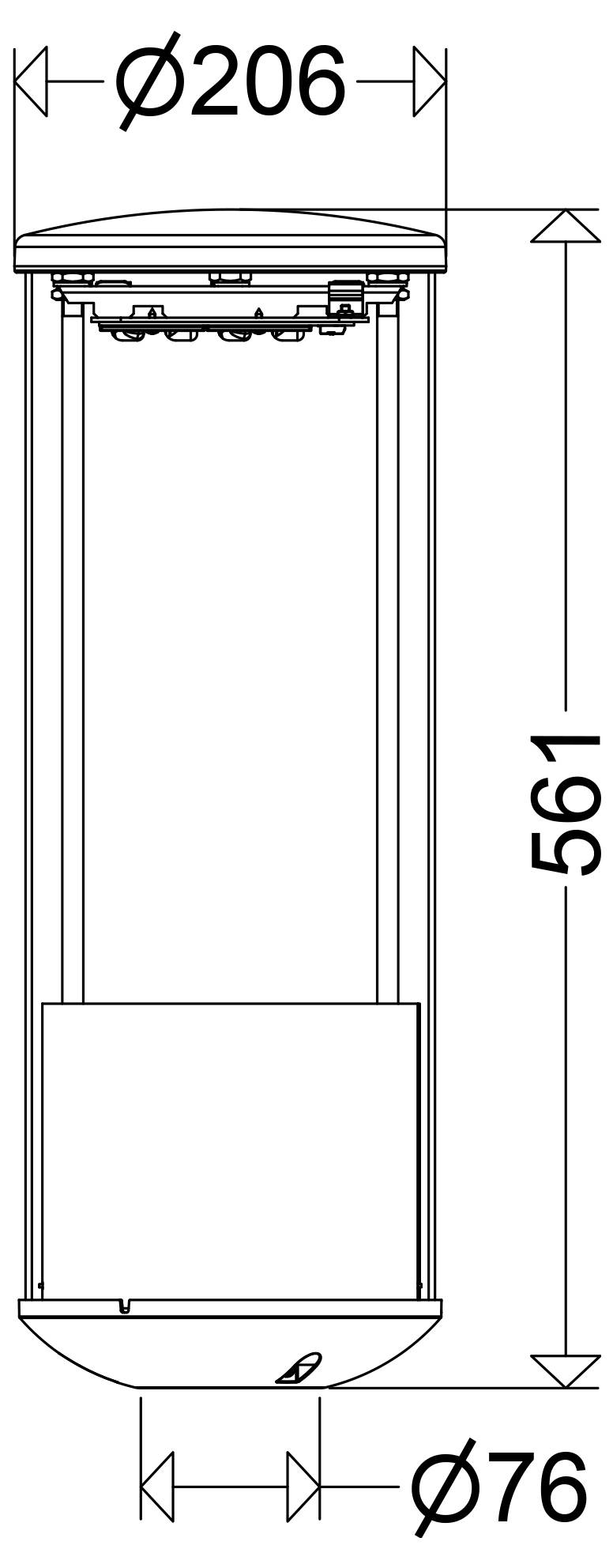

- Dim
(W x H) 206 mm x 561 mm
n.rel.
- Colour rendering index
70-79
- Colour temperature range
4000 K
- Width
206 mm
- Height
561 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3769590 Schuch 558 1601R G2 558010010 LED light attachment LED (monochrome) 17 W Grey
User & Safety Instructions
User & Safety Instructions 3769590 Schuch 558 1601R G2 558010010 LED light attachment LED (monochrome) 17 W Grey
Description
LED-Mushroom lamp, CILA, 17 W, 2850 lm, SKII, IP54, rotational-symmetric-radiation, 4000 K, Ra≥ 70, Ta -40 °C/+35 °C, L95>100000 h (@ Ta max), cylinder PMMA clear, Lamp roof (aluminum), housing aluminum, painted, Colour gray, DB 702, ULOR=0%, EAN/GTIN:4041254395104. Modern LED add-on light CILA, consisting of powder-painted mast base and cover made of aluminum diecast as well as clear PMMA cylinder glass. LED module and EVG-unit wired ready to connect, disconnect plug connection for the network connection terminal and strain relief for connection cable. Zhaga-conforming LED module with highly efficient optics, direct radiating, multi-layer technology. ECG with high surge resistance, overload and short-circuit protection. Mounting on straight light masts Ø 76 mm (for Ø 60 mm see "Optional accessories").
