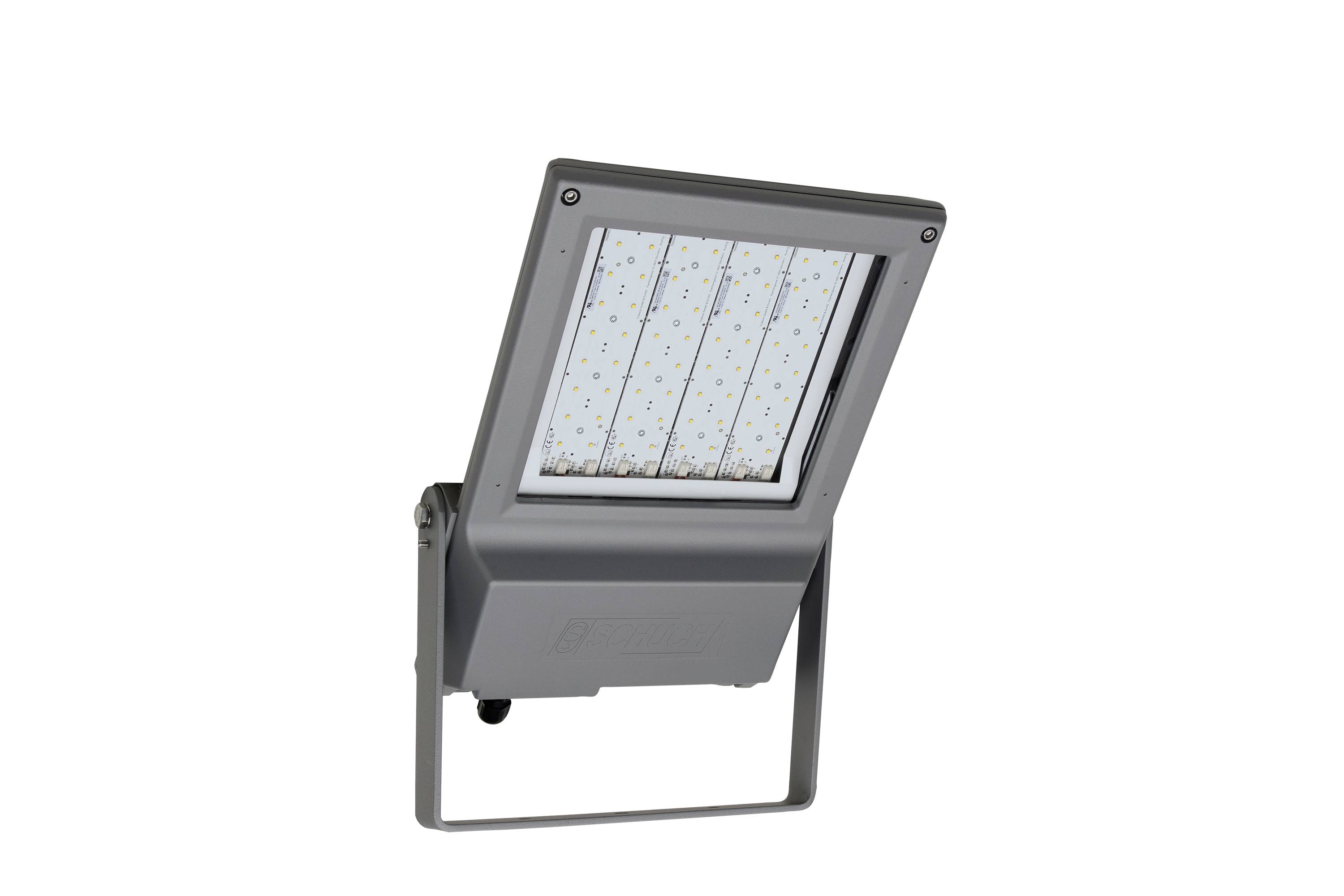

Schuch 7700 3203T 770000014 LED floodlight 70 W Colours (LEDs): White
EAN:
Part number:
Item no:
Highlights & Details
- Power= 70 W
- Total luminous flux= 11360 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED floodlight
- Bulb type
LED (monochrome)
70 W
4000 K
- Colour
White
- Total luminous flux
11360 lm
- Light features
Incl. ballast
Suitable for wall mounting
Ceiling mount option
Pivoted
Swivelling
- Protection class
I
IP66
IK10
- Factory colour
Grey
- Material
Aluminium
Glass
- Dim

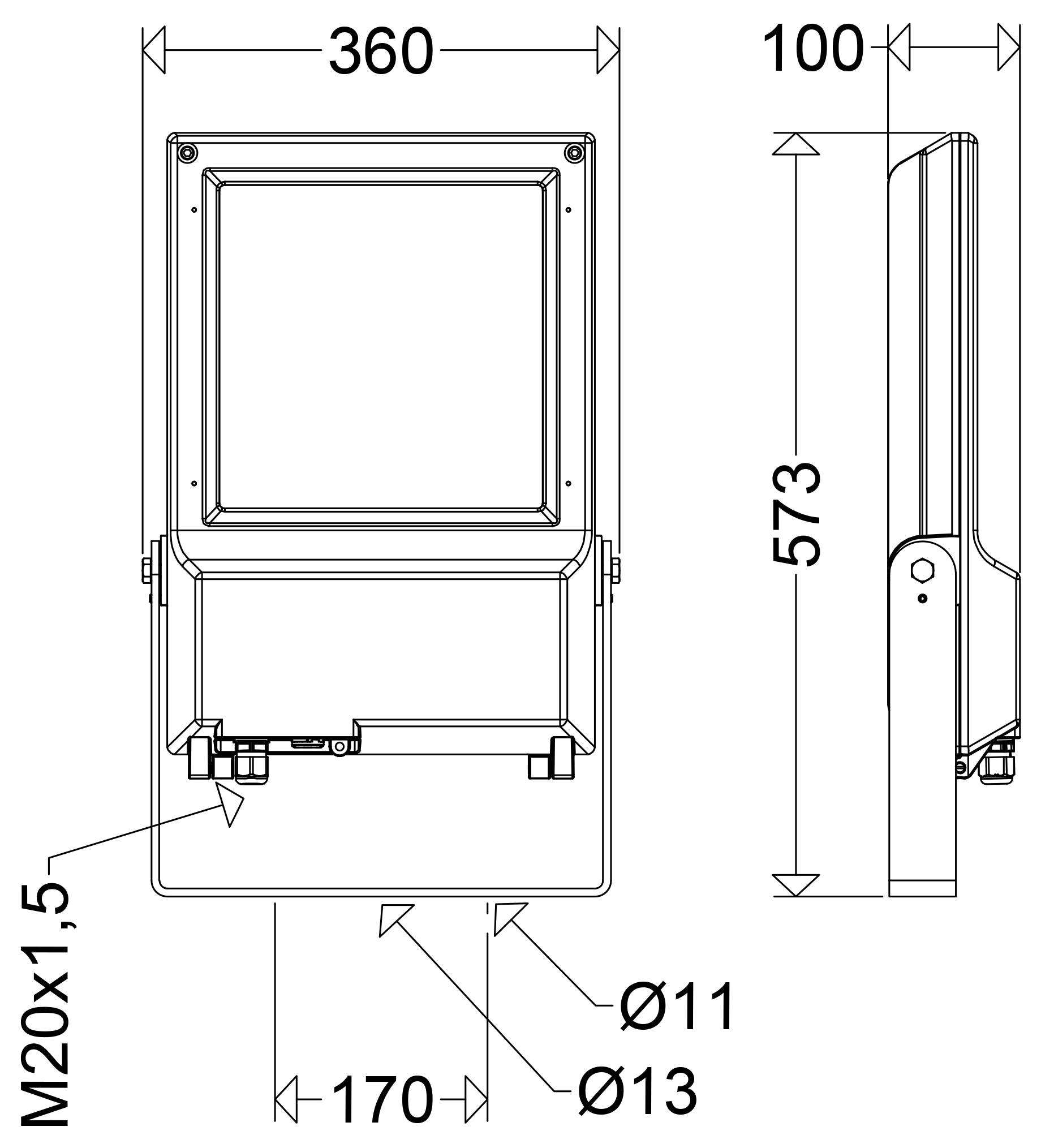

(L x W x H) 573 x 360 x 100 mm
n.rel.
- Type
powder-coated
- Colour rendering index
70-79
- Light bulb included
Yes
- Width
360 mm
- Height
100 mm
- Length
573 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3770427 Schuch 7700 3203T 770000014 LED floodlight 70 W Colours (LEDs): White
Description
LED spotlights, FOCUS L, 70 W, 11360 lm, SKI, IP66, deep radiation, 4000 K, Ra≥ 70, Ta -40 °C/+40 °C, L90>100000 h (@ Ta max), glass safety glass clear, case aluminum die-cast, painted, color gray, DB 702, EAN/GTIN:4041254283548.LED spotlight FOCO L of GreenLine series with excellent sustainable product design. Two-piece, powder-painted aluminum die-cast housing. Upper part with LED modules, lower part with EVG, flat, temperature-resistant safety glass, cable entry and strain relief, can be folded. Zhaga-conforming LED modules, direct radiating, multi-layer technology. ECG with high surge resistance, overload and short-circuit protection. Mounting bracket can be rotated by 180°.
