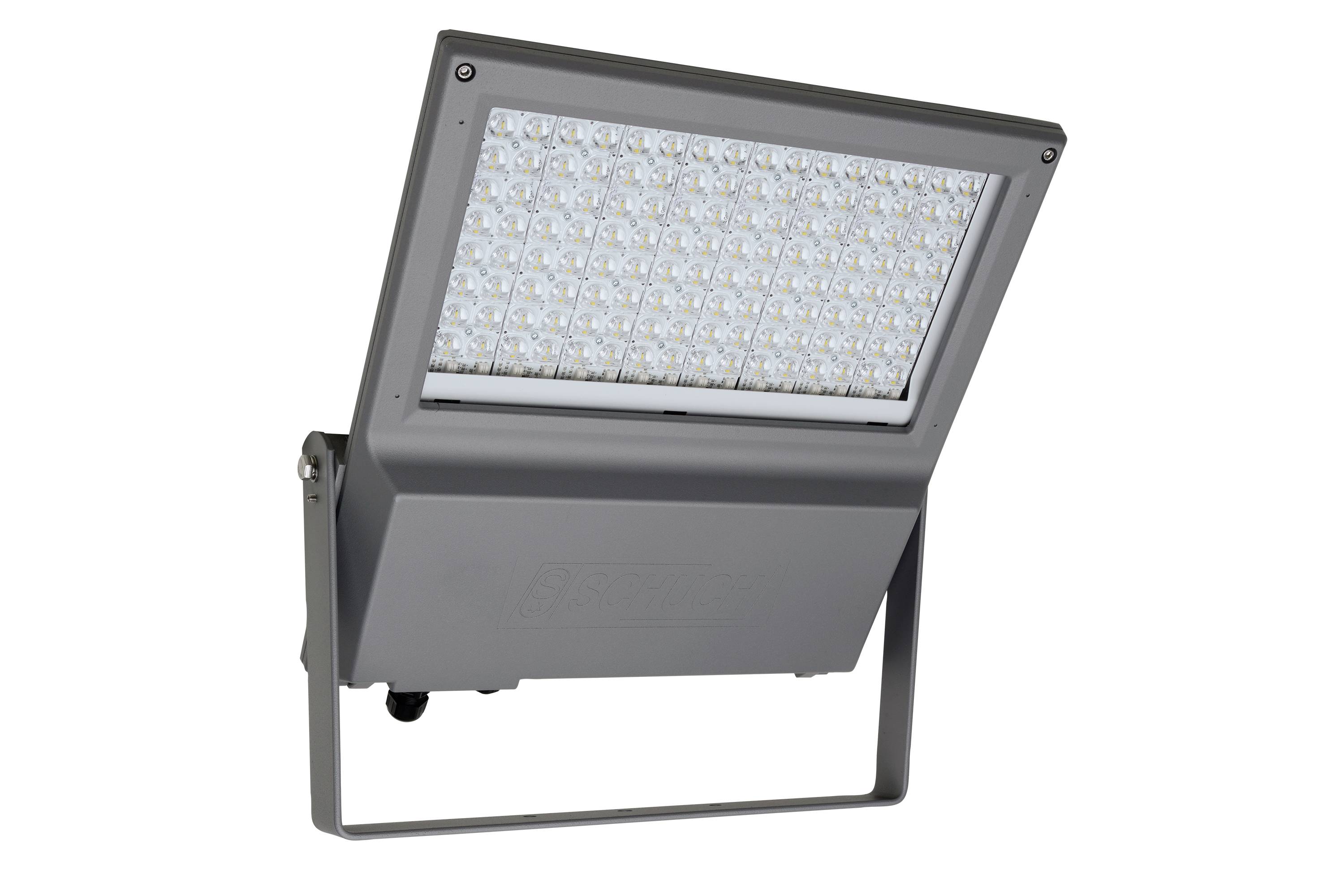

Schuch 7800 12803TB 780000002 LED floodlight 280 W Colours (LEDs): White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 280 W
- Total luminous flux= 43920 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED floodlight
- Bulb type
LED (monochrome)
280 W
4000 K
- Colour
White
- Total luminous flux
43920 lm
- Light features
Incl. ballast
Suitable for wall mounting
Ceiling mount option
Pivoted
Swivelling
- Protection class
I
IP66
IK09
- Factory colour
Grey
- Material
Aluminium
Glass
- Dim

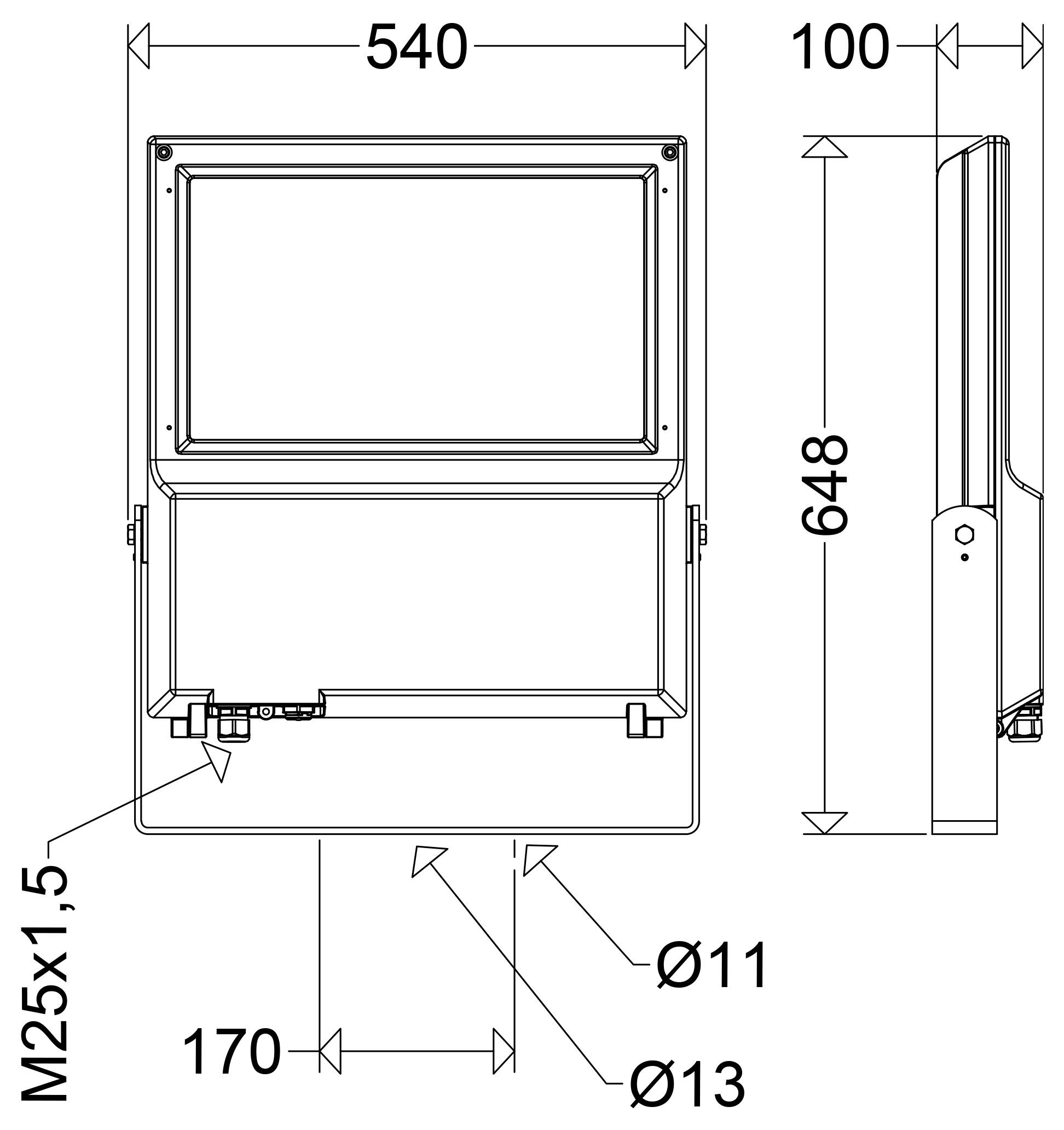

(L x W x H) 648 x 540 x 100 mm
n.rel.
- Type
powder-coated
- Colour rendering index
70-79
- Light bulb included
Yes
- Width
540 mm
- Height
100 mm
- Length
648 mm
Documents & Downloads
Datasheet
Datasheet 3770504 Schuch 7800 12803TB 780000002 LED floodlight 280 W Colours (LEDs): White
User & Safety Instructions
User & Safety Instructions 3770504 Schuch 7800 12803TB 780000002 LED floodlight 280 W Colours (LEDs): White
Description
LED spotlights, FOCO XL, 280 W, 43920 lm, SKI, IP66, deep-wide radiation, 4000 K, Ra≥ 70, Ta -40 °C/+40 °C, L95>100000 h (@ Ta max), glass safety glass clear, housing aluminum die-cast, painted, color gray, DB 702, EAN/GTIN:4041254263502.LED spotlight FOCO XL of GreenLine series with excellent sustainable product design. Two-piece, powder-painted aluminum die-cast housing. Upper part with LED modules, lower part with EVG, flat, temperature-resistant safety glass, cable entry and strain relief, can be folded. Zhaga-conforming LED modules, direct radiating, multi-layer technology. ECG with high surge resistance, overload and short-circuit protection. Mounting bracket can be rotated by 180°.
