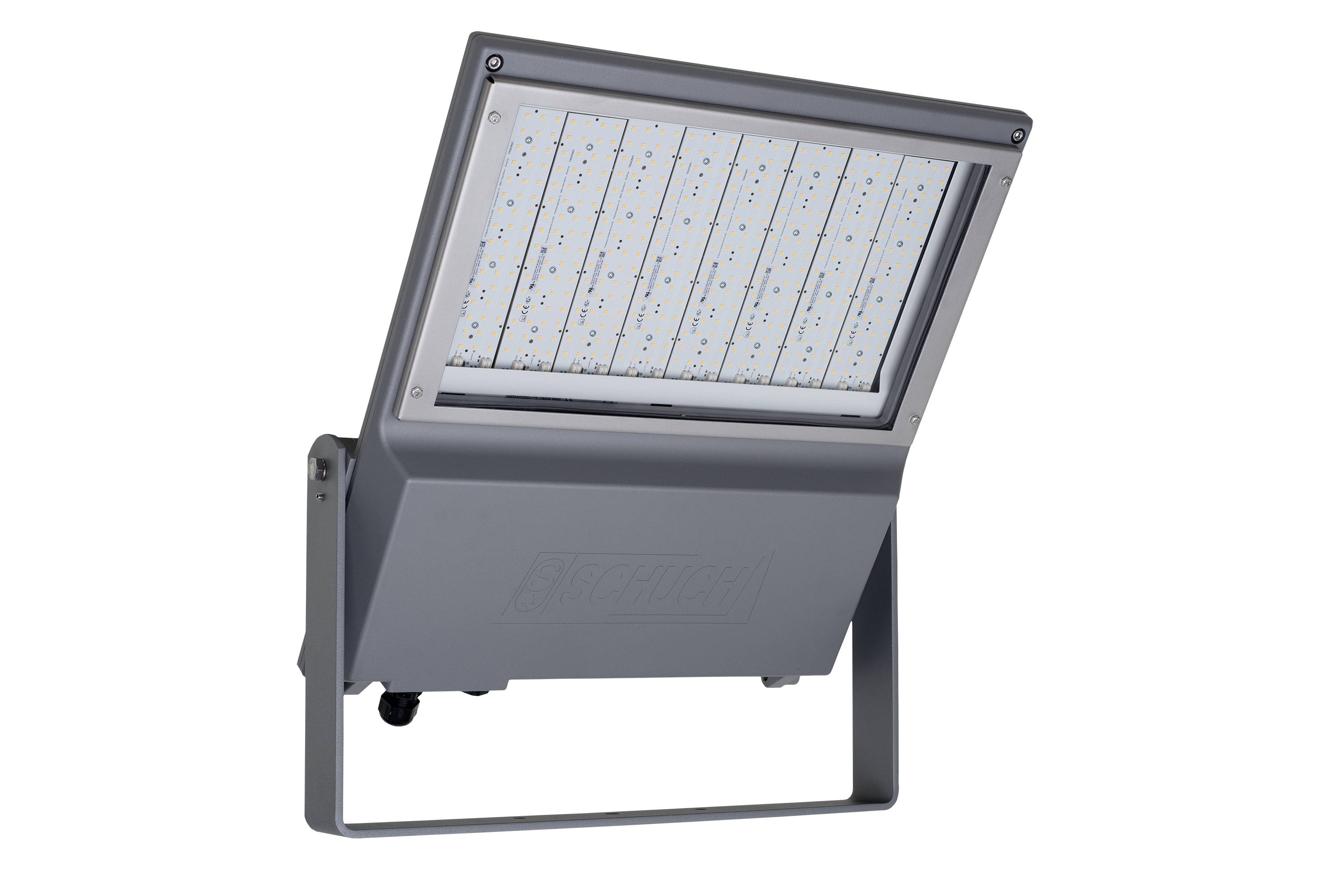

Name: Schuch 7800 L420 SSK 780050001 LED surface-mount light LED (monochrome) 280 W Grey
Brand: Schuch
SKU: 3770211

Technical specifications

Product type: LED surface-mount light

Bulb type: LED (monochrome)

: 280 W

: 4000 K

Colour: White

Total luminous flux: 36720 lm

Light features: Incl. ballast
Incl. cover

Protection class: I

: IP66
IK09

Factory colour: Grey

Material: Aluminium

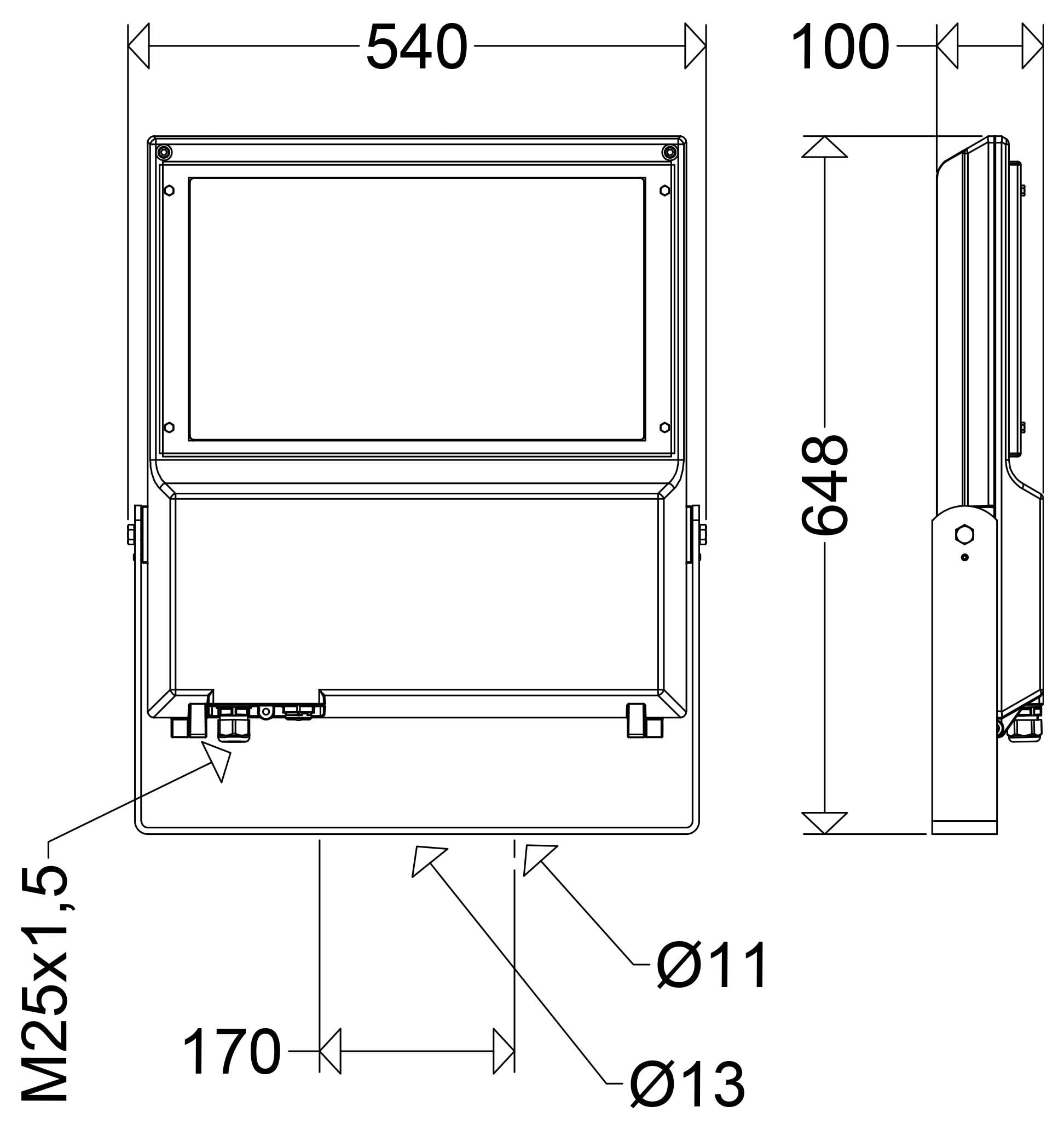

Dim: (L x W x H) 648 x 540 x 100 mm

: n.rel.

Colour rendering index: 80-89

Colour temperature range: 4000 K

Width: 540 mm

Height: 100 mm

Length: 648 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3770211 Schuch 7800 L420 SSK 780050001 LED surface-mount light LED (monochrome) 280 W Grey

User & Safety Instructions

User & Safety Instructions 3770211 Schuch 7800 L420 SSK 780050001 LED surface-mount light LED (monochrome) 280 W Grey

Description

LED hall lamp, FOCUS XL, 280 W, 36720 lm, SKI, IP66, wide radiation, 4000 K, Ra≥ 80, Ta -40 °C/+35 °C, L70>100000 h (@ Ta max), L90>50000 h (@ Ta 25°C), clear glass safety glass, protective cover, die-cast aluminum housing, painted, Grey color, DB 702, for blasting rooms/cabins (SSK), for rooms with increased risk of fire (D), EAN/GTIN:4041254341279.LED spotlight FOCO XL for installation rooms. Two-piece, powder-painted aluminum die-cast housing. Upper part with LED modules, lower part with EVG, flat, temperature-resistant Safety glass with built-in, easily replaceable protective cover made of Polycarbonate in stainless steel frame, silicone Seal, cable inlet and Strain relief, foldable. Zhaga-conforming LED modules, direct radiating, multi-layer technology. ECG with high surge resistance, overload and short-circuit protection. Mounting bracket can be rotated by 180°.

This text is machine translated.

Description

LED hall lamp, FOCUS XL, 280 W, 36720 lm, SKI, IP66, wide radiation, 4000 K, Ra≥ 80, Ta -40 °C/+35 °C, L70>100000 h (@ Ta max), L90>50000 h (@ Ta 25°C), clear glass safety glass, protective cover, die-cast aluminum housing, painted, Grey color, DB 702, for blasting rooms/cabins (SSK), for rooms with increased risk of fire (D), EAN/GTIN:4041254341279.LED spotlight FOCO XL for installation rooms. Two-piece, powder-painted aluminum die-cast housing. Upper part with LED modules, lower part with EVG, flat, temperature-resistant Safety glass with built-in, easily replaceable protective cover made of Polycarbonate in stainless steel frame, silicone Seal, cable inlet and Strain relief, foldable. Zhaga-conforming LED modules, direct radiating, multi-layer technology. ECG with high surge resistance, overload and short-circuit protection. Mounting bracket can be rotated by 180°.

This text is machine translated.
