Schuch e840 12L60 LED wet room light LED (monochrome) Built-in LED 40 W Daylight white Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Schuch LED-Bath light EX Zone 1
- Power= 40 W
- Colour temperature= 6500 K
- Daylight white
Technical specifications
- EX protection
- EX zone: 1 , 21 , 2 , 22
- EX-labeling Gas: II 2 G Ex EB MB op is q IIC T4 GB
- EX-labeling Dust: II 2 D Ex op is TB IIIC T80°C DB
- Product type
LED wet room light
- Operating voltage
220 V
230 V
240 V
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
40 W
- Length
1355 mm
40 W
- Height
150 mm
- Width
226 mm
6500 K
- Colour
Daylight white
5850 lm
IK10
IP66
Protection class I
- Factory colour
Grey
- Material
Polyester
- Weight
8100 g
- Dim

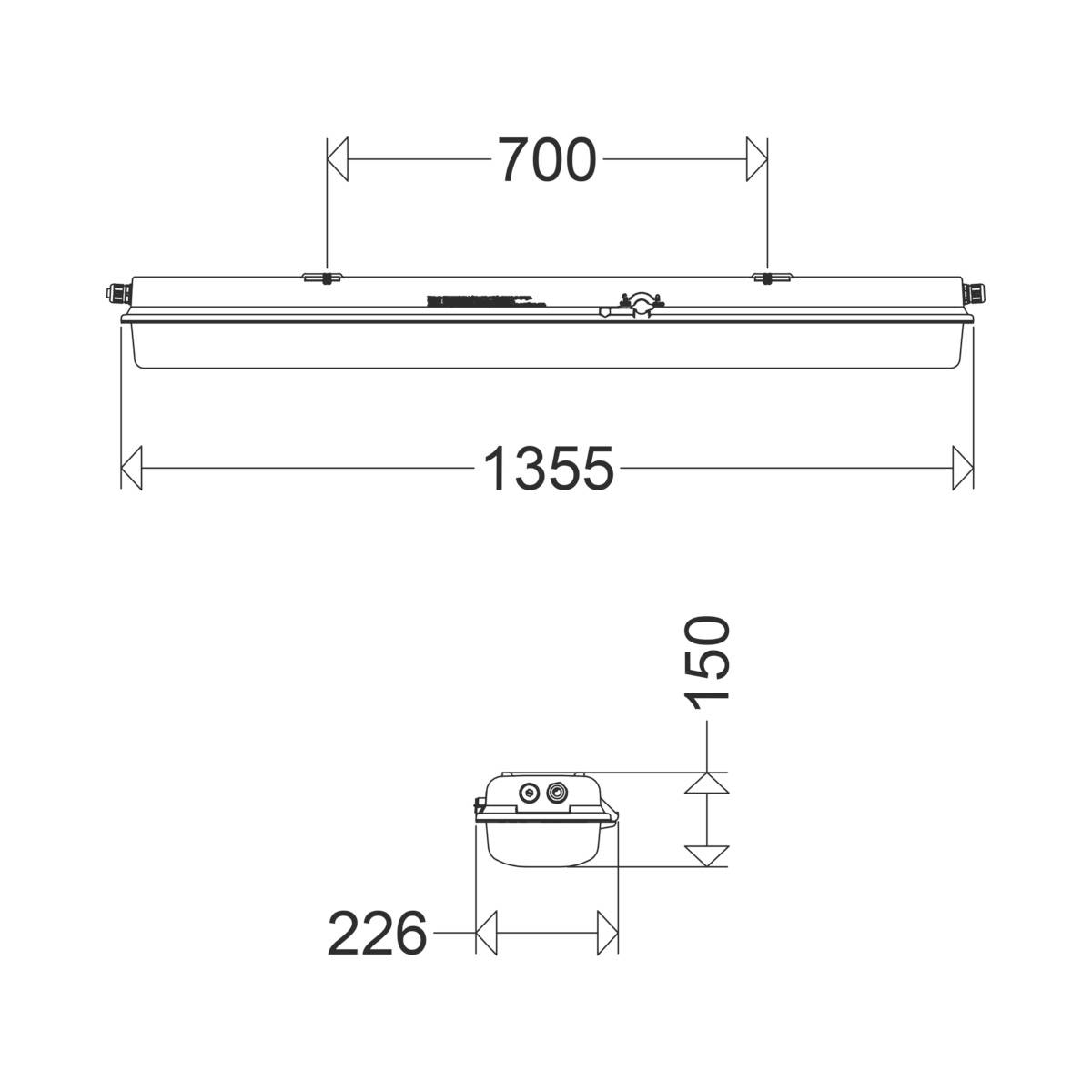

(L x W x H) 1355 x 226 x 150 mm
n.rel.
- Light bulb included
Yes
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
6500 K
- Colour temperature range
6500 - 6500 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3062522 Schuch e840 12L60 LED wet room light LED (monochrome) Built-in LED 40 W Daylight white Grey
Datasheet 3062522 Schuch e840 12L60 LED wet room light LED (monochrome) Built-in LED 40 W Daylight white Grey
User & Safety Instructions
User & Safety Instructions 3062522 Schuch e840 12L60 LED wet room light LED (monochrome) Built-in LED 40 W Daylight white Grey
Description

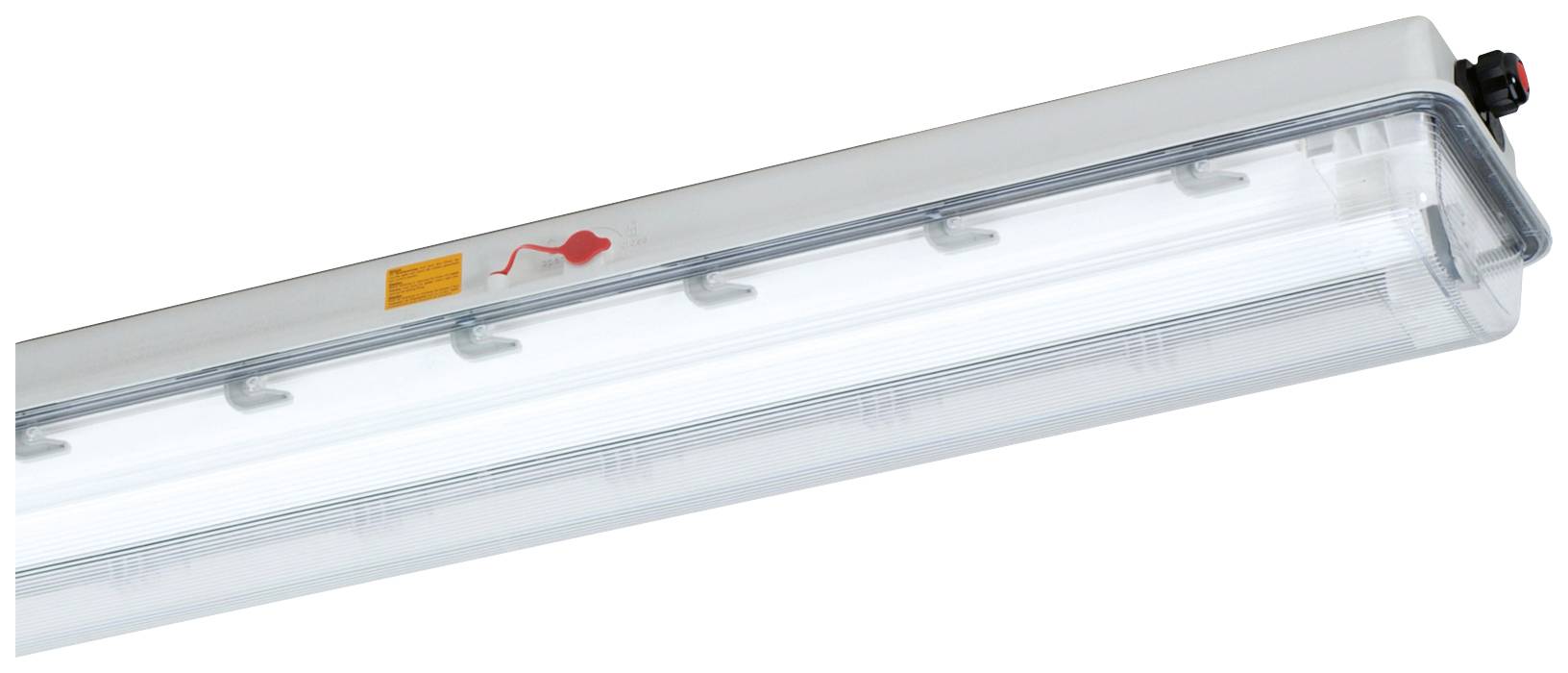

Explosion-proof LED-diffuser light with central closure for zone 1/21. Glass fiber reinforced polyester housing, clear termination tub made of polycarbonate with inner prisms and silicone seal. Aluminium reflector painted, with cast LED modules and satin finish blend elements, folded and removable. Encapsulated EVG with overvoltage, overload and short-circuit protection.
