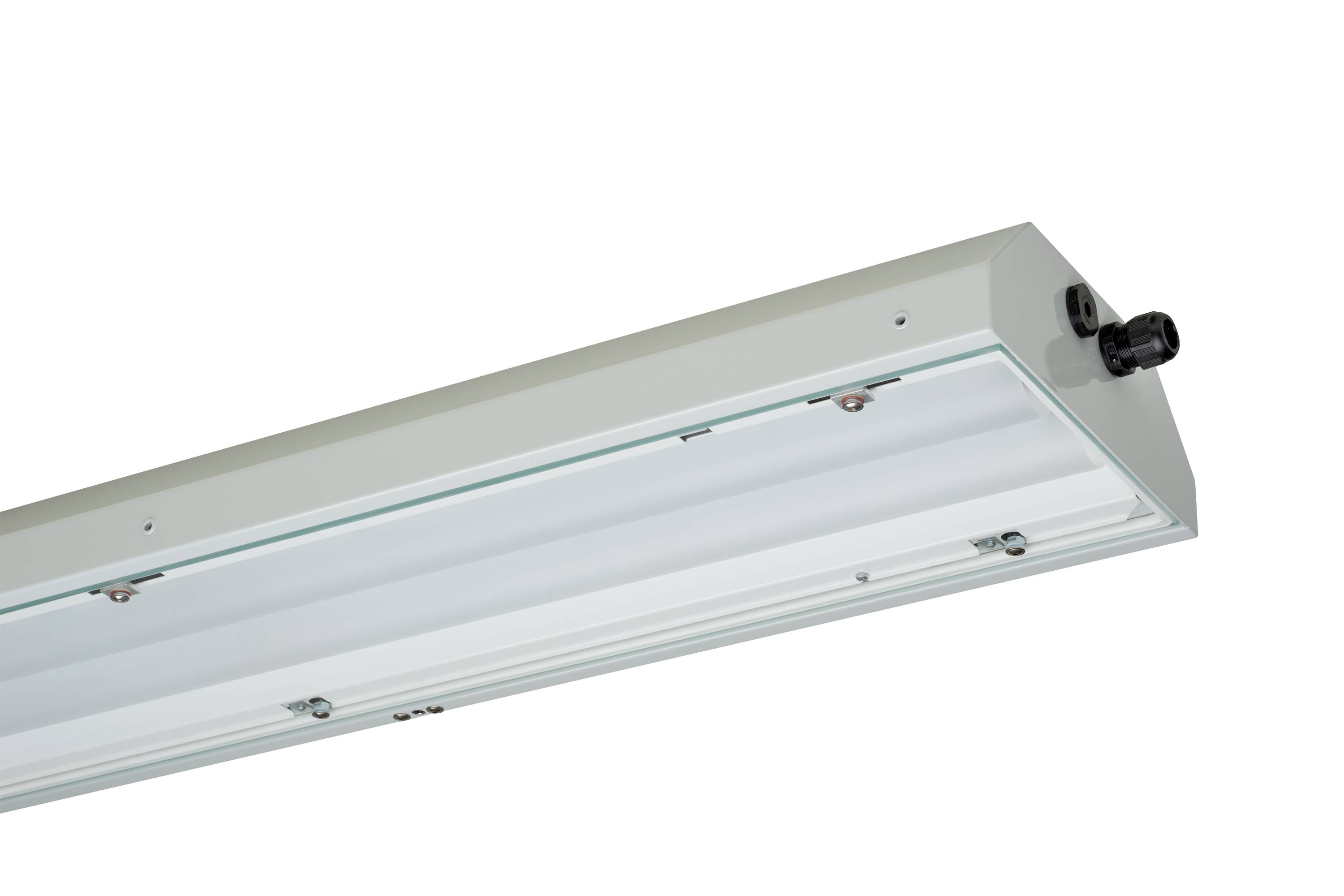

Schuch nD822 12L85 LED sheet steel light LED (monochrome) 54 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 54 W
- Total luminous flux= 8350 lm
- Colour temperature= 5000 K
- White
Technical specifications
- Product type
LED sheet steel light
- Bulb type
LED (monochrome)
- Length
1204 mm
54 W
- Height
99 mm
- Width
282 mm
5000 K
- Colour
White
- Total luminous flux
8350 lm
- Light features
Incl. ballast
Suitable for wall mounting
Ceiling mount option
IP65
IK07
- Material
Steel
Glass
- Dim

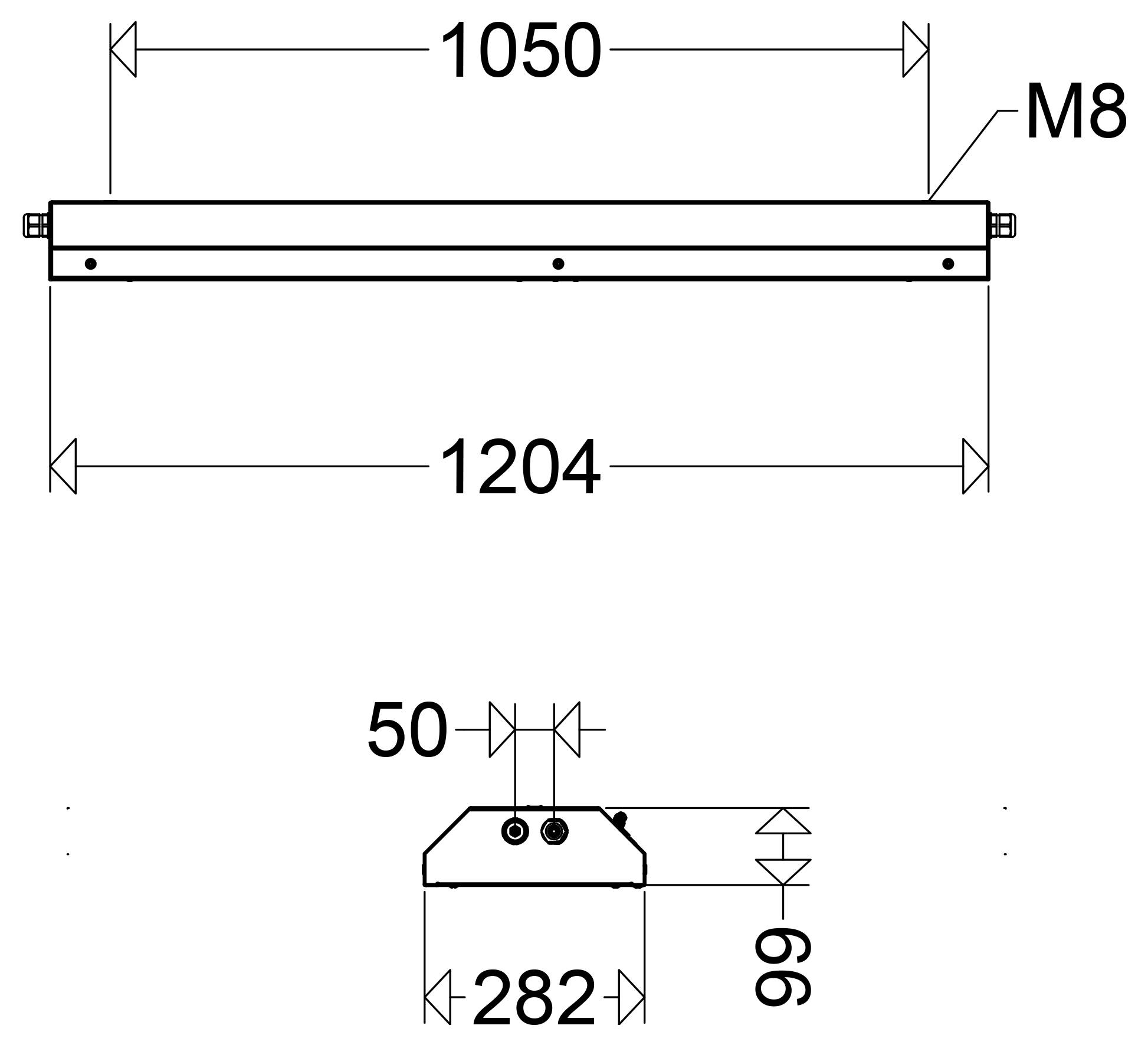

(L x W x H) 1204 x 282 x 99 mm
n.rel.
- Light bulb included
Yes
- Colour temperature range
5000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770281 Schuch nD822 12L85 LED sheet steel light LED (monochrome) 54 W White
User & Safety Instructions
User & Safety Instructions 3770281 Schuch nD822 12L85 LED sheet steel light LED (monochrome) 54 W White
Description
EX LED steel plate light, EX-Zone 2/22, 54 W, 8350 lm, SKI, IP65, wide radiation, 5000 K, Ra≥ 80, Ta -30 °C/+40 °C, L80B50>100000 h (@ Ta max)>, L80B50 100000 h>(@ Ta 25°C), L90B50 75000 h (@ Ta 25°C), clear glass plate, stainless steel seal (1.4305), housing steel, painted, Grey color, RAL 7035, pure-out wiring (RR), LABS-tested according to VDMA 24364-C2-L, EAN/GTIN:4041254343112. Explosion-proof LED pitched roof lights for zone 2/22. Steel plate housing light-gray powder-painted (RAL 7035), frameless hinged safety glass, central lock with opposite interior hinges, silicone seal. Reflector made of sheet steel painted white, can be folded and removed with LED modules and glare elements. EVG with overvoltage, overload and short-circuit protection.
