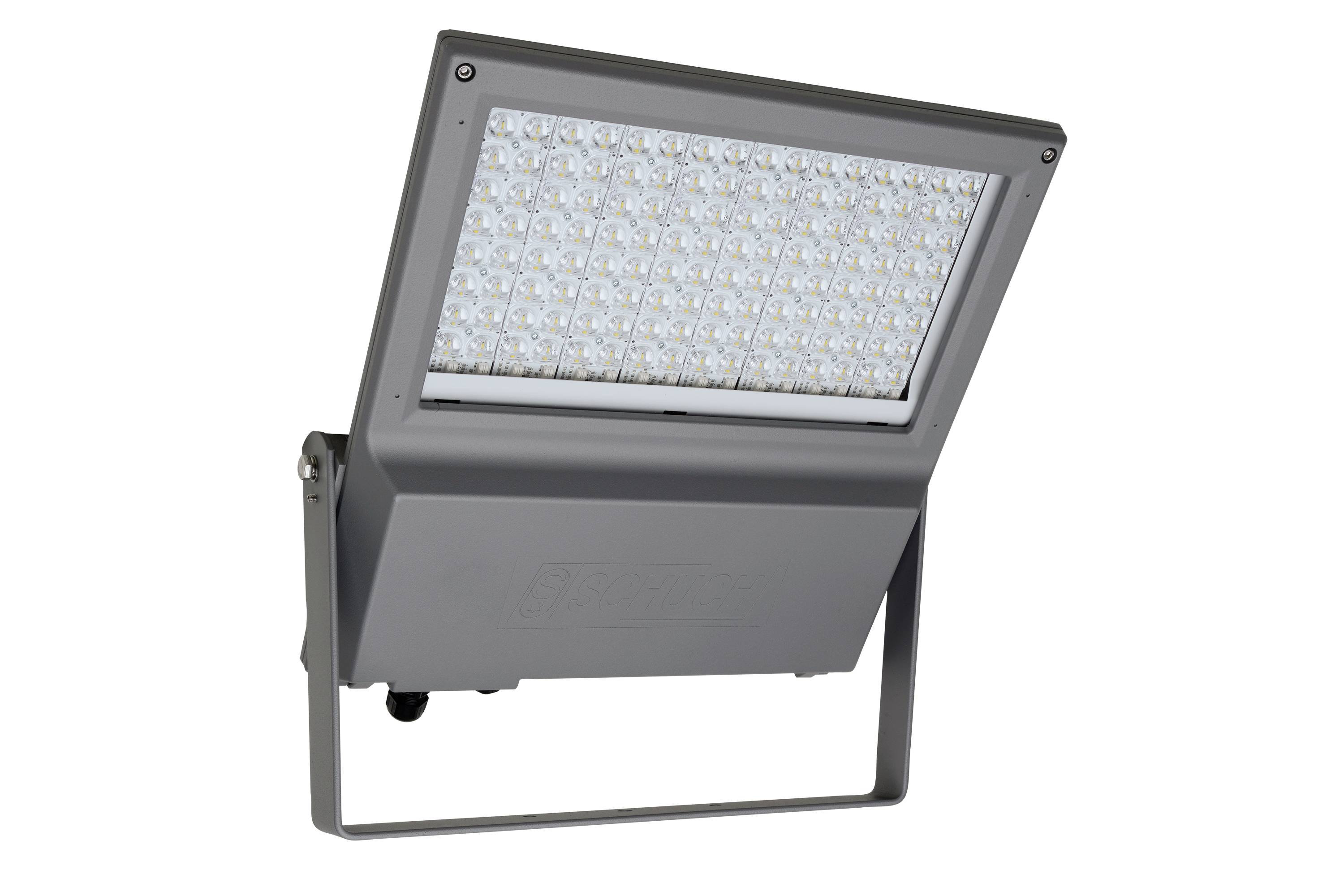

Schuch nD8800 6403TB 880000002 LED floodlight 140 W Colours (LEDs): White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Power= 140 W
- Total luminous flux= 22650 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED floodlight
- Bulb type
LED (monochrome)
140 W
4000 K
- Colour
White
- Total luminous flux
22650 lm
- Light features
Incl. ballast
Suitable for wall mounting
Ceiling mount option
- Protection class
I
IP66
IK09
- Material
Aluminium
Glass
- Dim

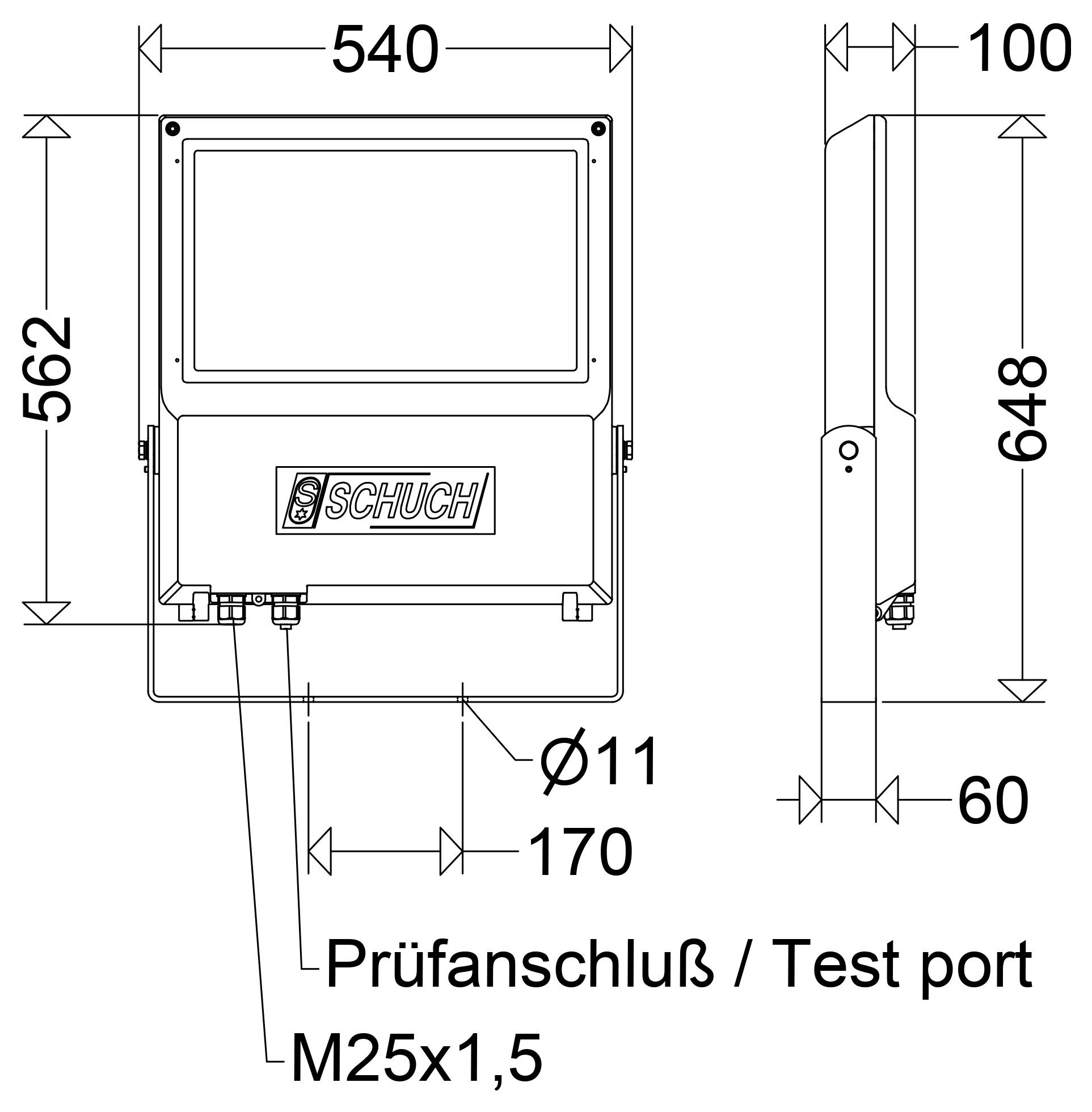

(L x W x H) 648 x 540 x 100 mm
n.rel.
- Type
adjustable
- Light bulb included
Yes
- Width
540 mm
- Height
100 mm
- Length
648 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3770662 Schuch nD8800 6403TB 880000002 LED floodlight 140 W Colours (LEDs): White
User & Safety Instructions
User & Safety Instructions 3770662 Schuch nD8800 6403TB 880000002 LED floodlight 140 W Colours (LEDs): White
Description
EX LED Spotlight, ExFoco XL, EX Zone 2/22, 140 W, 22650 lm, SKI, IP66, deep-wide radiation, 4000 K, Ra≥ 70, Ta -30 °C/+40 °C, L80>100000 h (@ Ta max), L80>100000 h (@Ta 25°C), glass safety glass clear, stainless steel cover (1.4301), die-cast aluminum housing, painted, DB 702, EAN/GTIN:4041254286334. Explosion-proof LED spotlight ExFOCO XL of GreenLine series with excellent sustainable product design for zone 2/22. Housing and glass holder frame made of die-cast aluminum, powder-painted. Glass-holder frame with flat, temperature-resistant safety glass, hinges, foldable and silicone seal. LED module with highly efficient optics, direct radiation, multi-layer technology. Direct connection of the LED to the housing to ensure an optimal thermal management. EVG with overload and short-circuit protection as well as temperature monitoring of the LED-modules. Mounting bracket for tower, wall or ceiling mounting can be swiveled by 180°.
