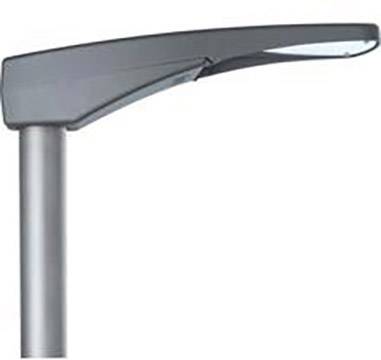

Schuch Vario 480010 703 LED street light 35 W Colours (LEDs): Neutral white
EAN:
Part number:
Item no:
Highlights & Details
LED street light Vario
- Power= 35 W
- Total luminous flux= 4620 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Product type
LED street light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
35 W
35 W
4000 K
- Colour
Neutral white
4620 lm
- Total luminous flux
4620 lm
- Light features
Selectable luminous flux
Incl. magnetic fasteners
Swivelling
Selectable colour
- Protection class
I
IP66
- Factory colour
Anthracite
- Material
Aluminium (die-cast)
- Weight
7.6 kg
- Dim
(L x W x H) 61 x 25.1 x 15.5 cm
n.rel.
- Type
Rectangular
- Light bulb included
Yes
- Width
25.1 cm
- Height
15.5 cm
- Length
61 cm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1991978 Schuch Vario 480010 703 LED street light 35 W Colours (LEDs): Neutral white
Information
Information 1991978 Schuch Vario 480010 703 LED street light 35 W Colours (LEDs): Neutral white
Description
Application areas:
Residential, semi-residential, adjacent and main roads, cycle and footpaths, traffic-restricted zones, industrial plant roads, parking lots etc.
Format:
Housing: Die-cast aluminum, two-part, powder-coated DB 702N (ice-cream). Top with LED module, optics, cover glass and ECG, clip-on and removable. Lower part with mast fixing system, inclination adjustment, cable entry, strain relief and pressure compensation system.
Glass: Flat safety glass, impact resistance IK 08. Switch for adjusting the luminous flux in the lamp.
Light distribution: Asymmetric wide beam.
Terminal clamp: With disconnect plug connection and strain relief.
Attachment: Die-cast aluminum, universal for mast attachment Ø 60/76mm as well as mast attachment Ø 42/60mm x 100mm.
Tilt angle adjustment: For attachment mounting 0°, 5° and 10° (standard 0°). When mounting the attachment 0°, -5°, -10° and -15° depending on the inclination of the boom arm.
This text is machine translated.
Residential, semi-residential, adjacent and main roads, cycle and footpaths, traffic-restricted zones, industrial plant roads, parking lots etc.
Format:
Housing: Die-cast aluminum, two-part, powder-coated DB 702N (ice-cream). Top with LED module, optics, cover glass and ECG, clip-on and removable. Lower part with mast fixing system, inclination adjustment, cable entry, strain relief and pressure compensation system.
Glass: Flat safety glass, impact resistance IK 08. Switch for adjusting the luminous flux in the lamp.
Light distribution: Asymmetric wide beam.
Terminal clamp: With disconnect plug connection and strain relief.
Attachment: Die-cast aluminum, universal for mast attachment Ø 60/76mm as well as mast attachment Ø 42/60mm x 100mm.
Tilt angle adjustment: For attachment mounting 0°, 5° and 10° (standard 0°). When mounting the attachment 0°, -5°, -10° and -15° depending on the inclination of the boom arm.
This text is machine translated.
Features
- LED module can be folded up and removed
- Angle of inclination adjustable
- Blendarme optics
- Sea water-resistant design
- for connection to group or central battery systems
- Bird protection.
Scope of delivery
- LED street light
- Fitting Material
- User manual.
