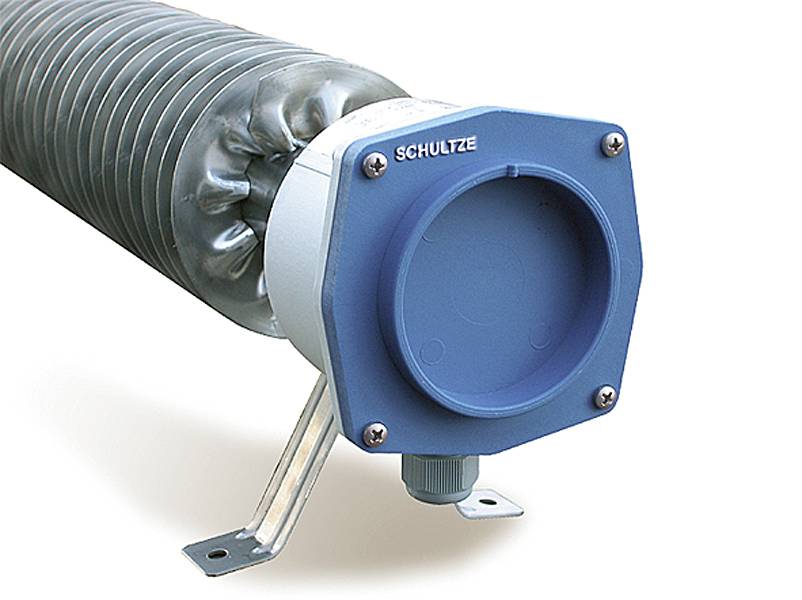

Schultze U 0500E Electric trace heating RiRo u 500E
EAN:
Part number:
Item no:
Technical specifications
- Output: 500 W
- Number of phases: 1
- Voltage: 230 V
- Ribbed diameter 110 mm
- Automatic temperature controller: No.
- Low surface temperature: No.
- PROTECTION CLASS (IP) IP66/IP67
- Height: 170 mm
- Width 130 mm
- Length: 440 mm
- Explosion-proof: No.
- Product type
Electric trace heating
- Operating voltage
230 V
500 W
IP66/IP67
- Dim
(L x W x H) 440 x 130 x 170 mm
- Width
130 mm
- Height
170 mm
- Length
440 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3795868 Schultze U 0500E Electric trace heating RiRo u 500E
User & Safety Instructions
User & Safety Instructions 3795868 Schultze U 0500E Electric trace heating RiRo u 500E
Information
Information 3795868 Schultze U 0500E Electric trace heating RiRo u 500E
Description
Universal stainless steel rib pipe heater, 500 W, 230 V, external control. In the power stages from 1000 W to 3000 W the connection can take place optionally at 230 V or 400 V 3 (N). Dust and water proof protection class IP66 / IP67. Impact resistant connector housing made of glass-fiber reinforced polyamide, including quick mounting base for wall or floor mounting and M20 cable fitting.
