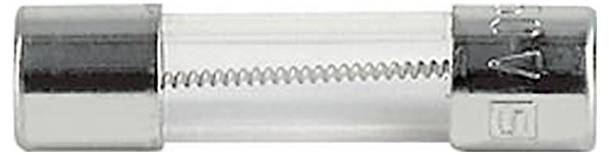

Schurter 0034.5042 G fuse insert (Ø x L) 5 mm x 20 mm 0.8 A Super time delay -TT- Content 1 pc(s) Piece
Packaging type
Piece
Product type
G fuse insert
Nominal current - rounded value
800 mA
Release characteristics
Super time delay -TT-
Length
20 mm
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Fuse FTTT 5x20 TT 0.8A
- UL standard fuse (UL 248-14 )
- Deep breaking capacity
Technical specifications
- Series: FTP
- Trigger time: Super-slow
- 5 x 20 mm case
- Applications: As primary protection in devices
- Casing material: Glass
- Climate category IEC 40/85/21
- Melting Integral: 19.6 A²/s.
- Rated breaking capacity 35 A.
- RATED VOLTAGE V/AC 250 V/AC
- Voltage drop 160 mV
- Packaging type
Piece
- Product type
G fuse insert

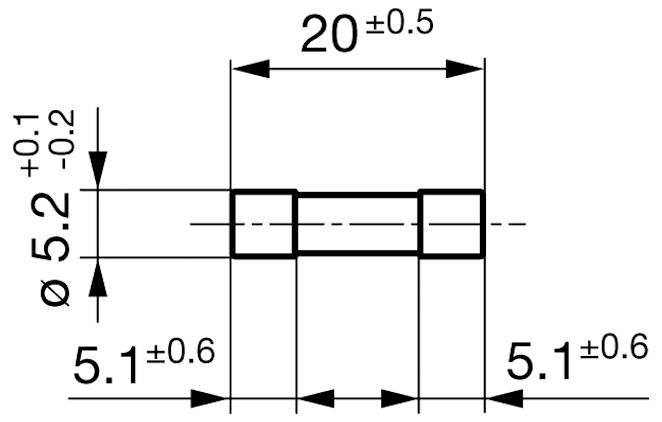

- Dim
(Ø x L) 5 mm x 20 mm
- Nominal current
0.8 A
- Nominal current - rounded value
800 mA
- Switch-off capacity
35 A
- Release characteristics
Super time delay -TT-
- Length
20 mm
- (Ø)
5 mm
- Certification marks
UL 248-14, CSA22.2 No. 248.14, IEC/UL 62368-1
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
0034.5042
- Power dissipation
540 mW
- Contact material
Copper alloy tin plated
- Max. temperature
85 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 3738107 Schurter 0034.5042 G fuse insert (Ø x L) 5 mm x 20 mm 0.8 A Super time delay -TT- Content 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3738107 Schurter 0034.5042 G fuse insert (Ø x L) 5 mm x 20 mm 0.8 A Super time delay -TT- Content 1 pc(s) Piece
Description
Schurter G-fuse link 5x20mm FTP super-inert 250Vac 0,8A
