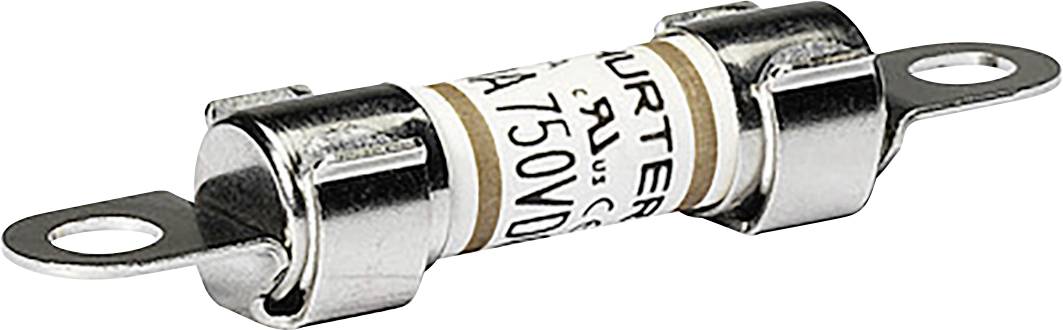

Schurter 3-151-015 AMO 10.3x38 Fuse (Ø x L) 10.3 mm x 65 mm 25 A 800 V DC Quick response -F- Content 1 pc(s)
Product type
Fuse
Nominal voltage
800 V DC
Nominal current - rounded value
25 A
Release characteristics
Quick response -F-
Length
65 mm
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Product type
Fuse
- Nominal voltage
800 V DC
- Dim
(Ø x L) 10.3 mm x 65 mm
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Reverse switching current
20000 A
- Switch-off capacity
20 kA
- Release characteristics
Quick response -F-
- Fuse layout
+ screw lugs
- Length
65 mm
- (Ø)
10.3 mm
- Content
1 pc(s)
- Industrial packaging
Yes
- RoHS-compliant
Yes
- Type
AMO 10.3x38
