Schurter 3-156-035 Micro fuse (Ø x H) 10.3 mm x 11 mm 50 A Content 1 pc(s) Piece
Packaging type
Piece
Product type
Micro fuse
Nominal current - rounded value
50 A
Length
65 mm
(Ø)
10.3 mm
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
EV fuse ADO 10x38 bolt-on a 750 50A
- EV fuse 10.3 x 38 mm
- High breaking capacity of 20kA @ 1000V DC
- Multiple installation variants
- High temperature resistance: -40...+125°C
- Mechanical vibration and shock resistance
- Resistance to chemical load
Technical specifications
- Series ADO
- Mounting: Screw mounting
- 10.3 x 38 mm case
- Applications: For automotive applications: Battery management systems, onboard chargers, DC/DC converters, air condition compressors and PTC heating systems as well as various control systems (e.g. motor control).
- Casing material: Ceramic
- Melting Integral: 828 A²/s.
- Rated breaking capacity 20 kA
- RATED VOLTAGE V/DC 750 V/DC
- Design: Screw locking
- Packaging type
Piece
- Product type
Micro fuse

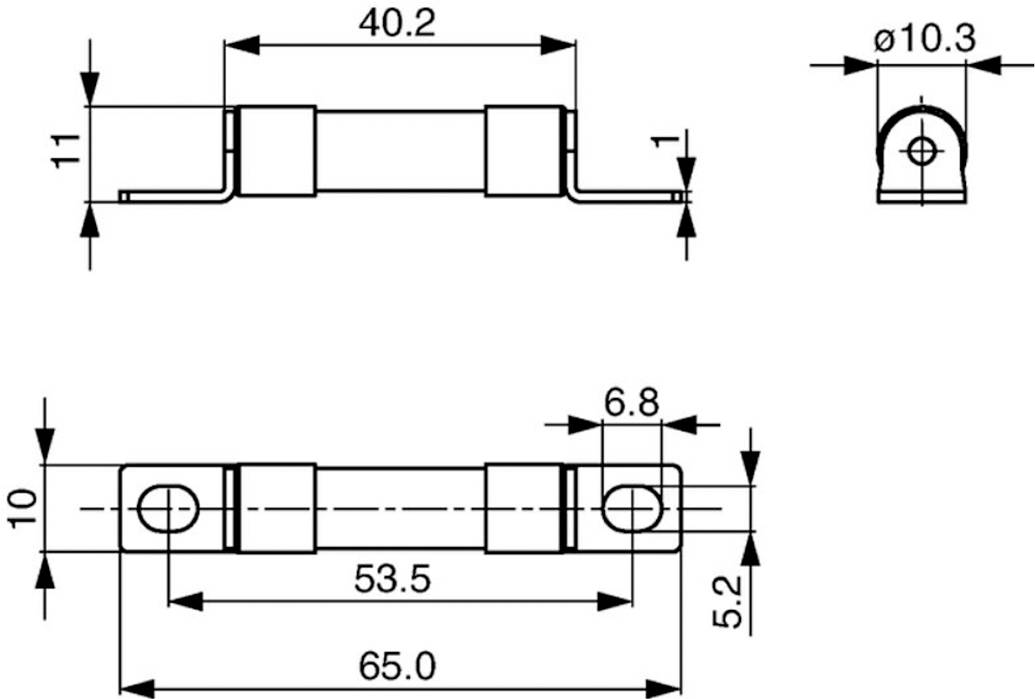

- Dim
(Ø x H) 10.3 mm x 11 mm
- Nominal current
50 A
- Nominal current - rounded value
50 A
- Switch-off capacity
20 kA
- Fuse layout
Ceramic tube
- Length
65 mm
- (Ø)
10.3 mm
- Certification marks
UL 248-20, ISO 8820-8, GB/T31465.6, JASO D622
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3-156-035
- Height
11 mm
- CS
53.5 mm
- Power dissipation
11 W
- Contact material
Copper alloy tin plated
- Max. temperature
125 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 3738338 Schurter 3-156-035 Micro fuse (Ø x H) 10.3 mm x 11 mm 50 A Content 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3738338 Schurter 3-156-035 Micro fuse (Ø x H) 10.3 mm x 11 mm 50 A Content 1 pc(s) Piece
Description
Schurter EV-fuse ADO 10.3x38mm 750VDC 50A
