Schurter 3-156-076 Micro fuse (Ø x H) 10.4 mm x 16.7 mm 20 A Content 1 pc(s) Piece
Packaging type
Piece
Product type
Micro fuse
Nominal current - rounded value
20 A
Length
39.3 mm
(Ø)
10.4 mm
Datasheet (PDF)
Part number:
Item no:
Highlights & Details

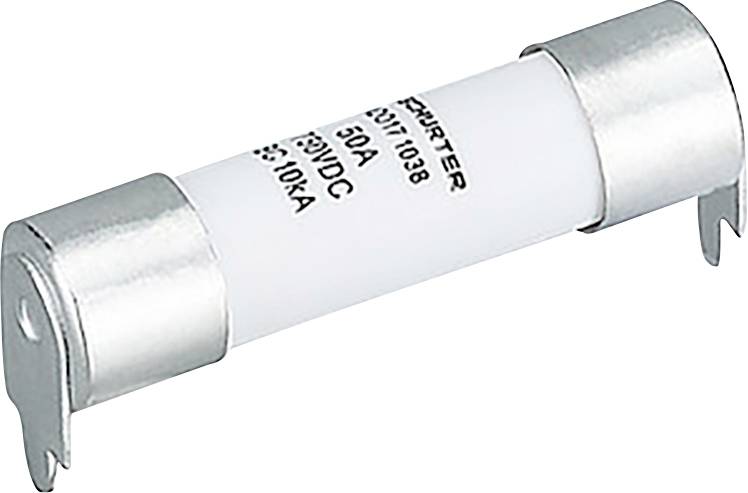

EV fuse ADO 10x38 PCB 1000 20A
- EV fuse 10.3 x 38 mm
- High breaking capacity of 20kA @ 1000V DC
- Multiple installation variants
- High temperature resistance: -40...+125°C
- Mechanical vibration and shock resistance
- Resistance to chemical load
Technical specifications
- Series ADO
- Mounting: PCB mounting
- 10.3 x 38 mm case
- Applications: For automotive applications: Battery management systems, onboard chargers, DC/DC converters, air condition compressors and PTC heating systems as well as various control systems (e.g. motor control).
- Casing material: Ceramic
- Melting Integral: 390 A²/s.
- Rated breaking capacity 20 kA
- RATED VOLTAGE V/DC 1,000 V/DC
- Design PCB
- Packaging type
Piece
- Product type
Micro fuse

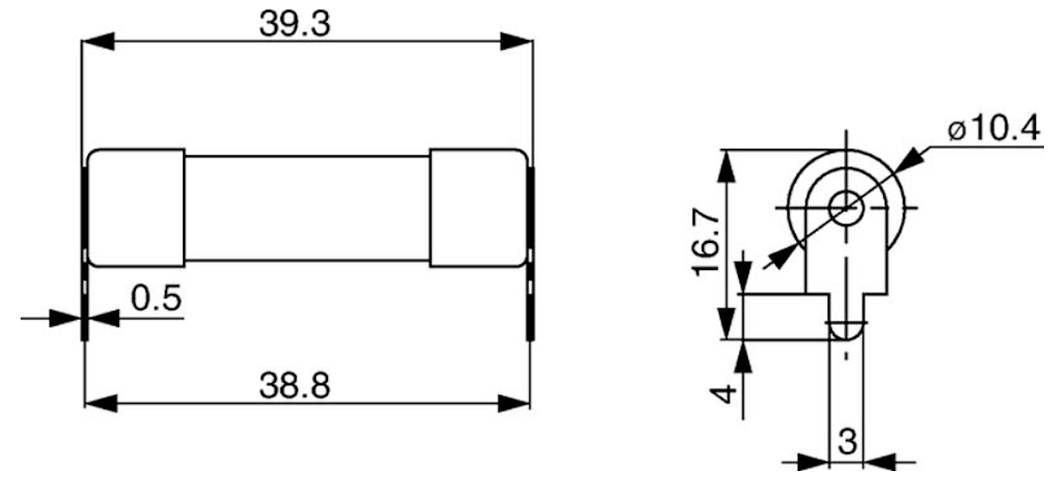

- Dim
(Ø x H) 10.4 mm x 16.7 mm
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Switch-off capacity
20 kA
- Fuse layout
Ceramic tube
- Length
39.3 mm
- (Ø)
10.4 mm
- Certification marks
UL 248-20, ISO 8820-8, GB/T31465.6, JASO D622
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3-156-076
- Height
16.7 mm
- CS
38.8 mm
- Power dissipation
3.5 W
- Contact material
Copper alloy tin plated
- Max. temperature
125 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 3738377 Schurter 3-156-076 Micro fuse (Ø x H) 10.4 mm x 16.7 mm 20 A Content 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3738377 Schurter 3-156-076 Micro fuse (Ø x H) 10.4 mm x 16.7 mm 20 A Content 1 pc(s) Piece
Description
Schurter EV-fuse ADO 10.3x38mm 1.000VDC 20A
