Schurter 3-156-353 Micro fuse (Ø x L) 38 mm x 92.5 mm 300 A Content 1 pc(s) Piece
Packaging type
Piece
Product type
Micro fuse
Nominal current - rounded value
300 A
Length
92.5 mm
(Ø)
38 mm
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
EV Si. ALO55 3853-R screw C 500VDC 300A
- For power electronics in the automotive industry
- High breaking capacity of 50kA @ 1000V DC
- Axial or bottom screw fastening
- High temperature resistance: -40...+125°C
- Vibration resistance according to IEC 60068-2-6, Test FC
- Mechanical shock according to MIL-STD-202, Method 213 Condition C.
- Resistance to chemical load
Technical specifications
- Series ALO
- Mounting: Screw mounting
- 38 x 53 mm case
- Applications: Typical applications are battery management systems, drive controls and other components in the high-voltage system of electric vehicles.
- Housing material: Epoxy resin
- Melting Integral: 79,300 A²/s.
- Rated breaking capacity 20 kA
- RATED VOLTAGE V/DC 500 V/DC
- Design: Screw locking
- Packaging type
Piece
- Product type
Micro fuse

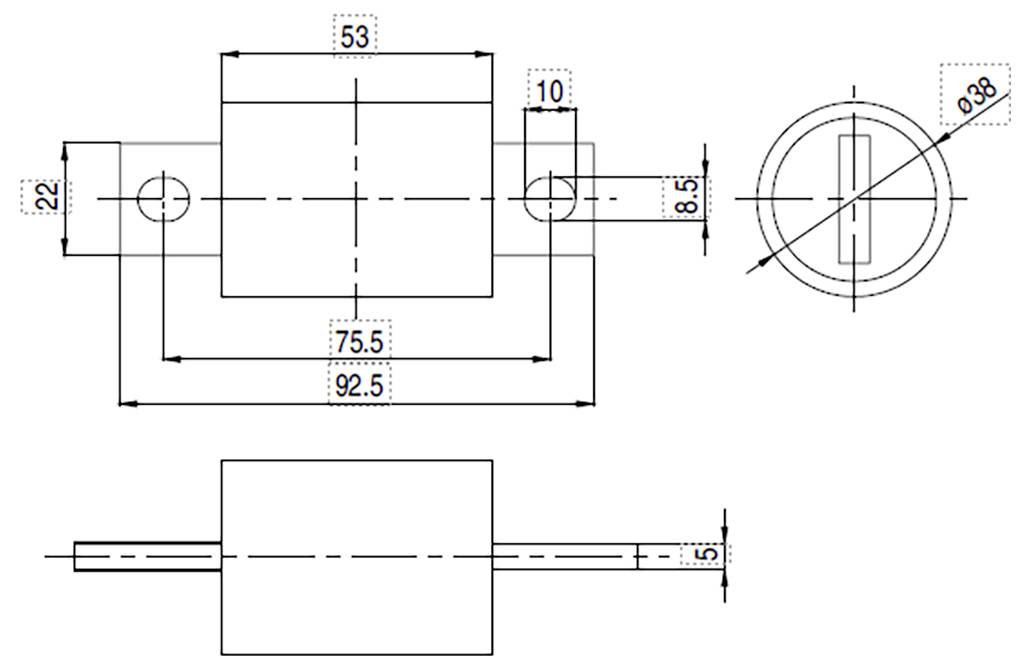

- Dim
(Ø x L) 38 mm x 92.5 mm
- Nominal current
300 A
- Nominal current - rounded value
300 A
- Switch-off capacity
20 kA
- Length
92.5 mm
- (Ø)
38 mm
- Certification marks
UL 248-20, ISO 8820-8, GB/T31465.6, JASO D622
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3-156-353
- CS
75.5 mm
- Power dissipation
48 W
- Contact material
Copper alloy tin plated
- Max. temperature
125 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 3738468 Schurter 3-156-353 Micro fuse (Ø x L) 38 mm x 92.5 mm 300 A Content 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3738468 Schurter 3-156-353 Micro fuse (Ø x L) 38 mm x 92.5 mm 300 A Content 1 pc(s) Piece
Description
Schurter EV-fuse ALO 38x53mm 500VDC 300A
