Schurter 3-156-392 Micro fuse (Ø x L) 50 mm x 129 mm 350 A Content 1 pc(s) Piece
Packaging type
Piece
Product type
Micro fuse
Nominal current - rounded value
350 A
Length
129 mm
(Ø)
50 mm
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
EV Si. ALO58 5072-R screw A 750VDC 350A
- For power electronics in the automotive industry
- High breaking capacity of 50kA @ 1000V DC
- Axial or bottom screw fastening
- High temperature resistance: -40...+125°C
- Vibration resistance according to IEC 60068-2-6, Test FC
- Mechanical shock according to MIL-STD-202, Method 213 Condition C.
- Resistance to chemical load
Technical specifications
- Series ALO
- Mounting: Screw mounting
- 50 x 72 mm case
- Applications: Typical applications are battery management systems, drive controls and other components in the high-voltage system of electric vehicles.
- Housing material: Epoxy resin
- Melting Integral: 153,615 A²/s.
- Rated breaking capacity 50 kA
- RATED VOLTAGE V/DC 750 V/DC
- Design: Screw locking
- Packaging type
Piece
- Product type
Micro fuse

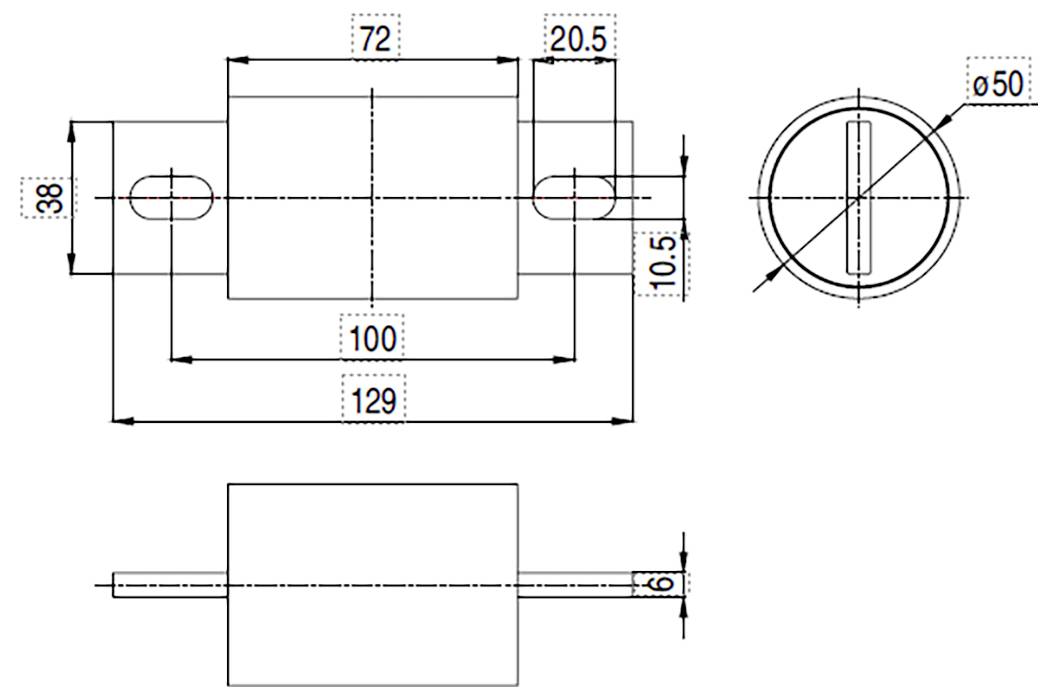

- Dim
(Ø x L) 50 mm x 129 mm
- Nominal current
350 A
- Nominal current - rounded value
350 A
- Switch-off capacity
50 kA
- Length
129 mm
- (Ø)
50 mm
- Certification marks
UL 248-20, ISO 8820-8, GB/T31465.6, JASO D622
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3-156-392
- CS
100 mm
- Power dissipation
44 W
- Contact material
Copper alloy tin plated
- Max. temperature
125 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 3738493 Schurter 3-156-392 Micro fuse (Ø x L) 50 mm x 129 mm 350 A Content 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3738493 Schurter 3-156-392 Micro fuse (Ø x L) 50 mm x 129 mm 350 A Content 1 pc(s) Piece
Description
Schurter EV fuse ALO 50x72mm 750VDC 350A
