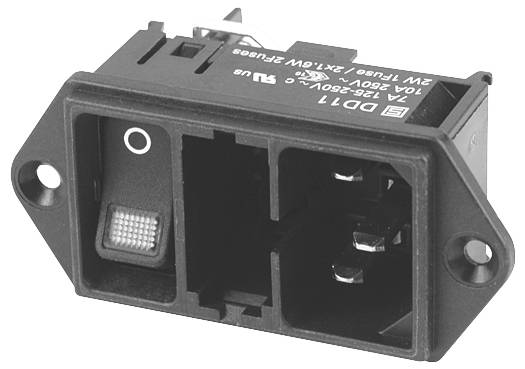

Schurter DD11.0124.1111 IEC connector Plug, straight Total number of pins: 3 10 mA Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
IEC connector
Plug standard (IEC 60320)
C14
Connector type
Plug, straight
Total no. of pins
3
Connection
Type C CEE 7/16 plug 4.8 mm
Datasheet (PDF)
Technical specifications
- Design: Board
- Locking: Yes
- Locking type: Latch
- Approvals: ENEC 10|cURus|CCC
- Housing material: Thermoplastic
- Flammability class UL 94 V-0
- Contact: Plug
- Rocker color: Green, illuminated
- Features: - Combination comprising of cold-device plug C14 and 2-pin rocker switch with fuse holder for a device fuse (5x20mm) with pocket for spare fuse
- - With protective cover
- Earth wire: Yes
- Board thickness, max. 8
- Pin temperature 70
- Spade connection 4.8
- Flange hole spacing 56
- Starting torque: 0.5
- Contacts
C14
- Product type
IEC connector
- Plug standard (IEC 60320)
C14
- Type
C14
- Connector type
Plug, straight
- Total no. of pins
3
- Connection
Type C CEE 7/16 plug 4.8 mm
- Nominal voltage
250
- Factory colour
Black
- Content
1 pc(s)
- Nominal current
10 mA
- Nominal current - rounded value
10 mA
- Case material
Plastic
- Manufacturer part #
DD11.0124.1111
- Fitting type (details)
Screw fixing
- Certification marks
IEC 60320-1|IEC 60127-6|IEC 61058-1|UL 60320-1|CSA C22.2 NO. 60320-1
- Number of pins
3
- Width
30.5 mm
- Height
36.5 mm
- Length
65.0 mm
- RoHS-compliant
Yes
IP40
- Type
DD11.0124.1111
- Mounting type
Front
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3345648 Schurter DD11.0124.1111 IEC connector Plug, straight Total number of pins: 3 10 mA Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3345648 Schurter DD11.0124.1111 IEC connector Plug, straight Total number of pins: 3 10 mA Black 1 pc(s)
Description
Combination consisting of cold-device plug C14 and 2-pole rocker switch with fuse holder for a device fuse (5x20mm) with pocket for spare fuse
With protective cover
This text is machine translated.
With protective cover
This text is machine translated.
Hints
Fuse drawer is not included in the scope of delivery and must be ordered separately
