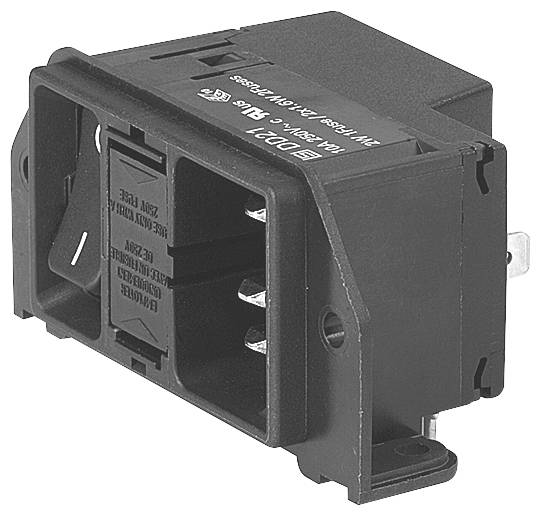

Schurter DD21.0123.1111 IEC connector Plug, straight Total number of pins: 3 + PE 10 mA Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
IEC connector
Plug standard (IEC 60320)
C14
Connector type
Plug, straight
Total no. of pins
3 + PE
Datasheet (PDF)
Technical specifications
- Design: Board
- Locking: Yes
- Locking type: Latch
- Approvals: ENEC 10|cURus
- Housing material: Thermoplastic
- Flammability class UL 94 V-0
- Contact: Plug
- Wippe color: Red, illuminated
- Features: Combination comprising of IEC plug C14 and 2-pole rocker switch with 2-pole fuse holder for two device fuse (5x20mm)
- Earth wire: Yes
- Board thickness, max. 3
- Pin temperature 70
- Spade connection 4.8
- Flange hole spacing 56
- Starting torque: 0.5
- Packaging type
Piece
- Contacts
C14
- Product type
IEC connector
- Plug standard (IEC 60320)
C14
- Type
C14
- Connector type
Plug, straight
- Total no. of pins
3 + PE
- Connection
Type C CEE 7/16 plug 4.8 mm
- Nominal voltage
250
- Factory colour
Black
- Content
1 pc(s)
- Nominal current
10 mA
- Nominal current - rounded value
10 mA
- Case material
Plastic
- Manufacturer part #
DD21.0123.1111
- Fitting type (details)
Screw fixing
- Certification marks
IEC 60320-1|IEC 60127-6|IEC 61058-1|UL 60320-1|CSA C22.2 NO. 60320-1
- Number of pins
3
- Width
32.5 mm
- Height
36.5 mm
- Length
65.0 mm
- RoHS-compliant
Yes
IP40
- Type
DD21.0123.1111
- Leading contact (PE)
Yes
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3345650 Schurter DD21.0123.1111 IEC connector Plug, straight Total number of pins: 3 + PE 10 mA Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3345650 Schurter DD21.0123.1111 IEC connector Plug, straight Total number of pins: 3 + PE 10 mA Black 1 pc(s) Piece
Description
Combination consisting of cold-device plug C14 and 2-pole rocker switch with 2-pole fuse holder for two device fuse (5x20mm)
This text is machine translated.
This text is machine translated.
Hints
Fuse drawer is not included in the scope of delivery and must be ordered separately
