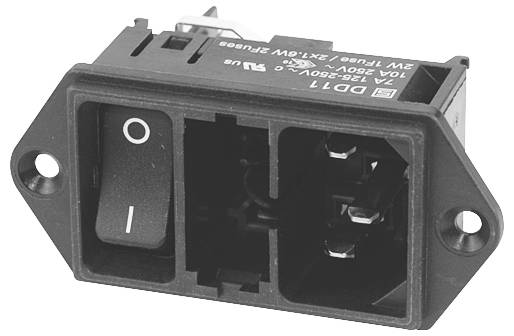

Schurter KM00.1105.11 IEC connector Plug, straight Total number of pins: 3 + PE 10 mA Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
IEC connector
Plug standard (IEC 60320)
C14
Connector type
Plug, straight
Total no. of pins
3 + PE
Datasheet (PDF)
Technical specifications
- Design: Board
- Lock: No.
- Approvals: ENEC 10|cURus|CCC
- Housing material: Thermoplastic
- Flammability class UL 94 V-0
- Contact: Plug
- Rocker color: Black
- Features: - Combination comprising of IEC plug C14 with 2-pole rocker switch and 2-pole fuse holder for two device fuses (5x20mm)
- - With protective cover
- Earth wire: Yes
- Board thickness, min.: 1
- Board thickness, max. 2.5
- Pin temperature 70
- Spade connection 4.8
- Connection coating: Tin-plated
- Packaging type
Piece
- Contacts
C14
- Product type
IEC connector
- Plug standard (IEC 60320)
C14
- Type
C14
- Connector type
Plug, straight
- Total no. of pins
3 + PE
- Connection
Type C CEE 7/16 plug 4.8 mm
- Nominal voltage
250
- Factory colour
Black
- Content
1 pc(s)
- Nominal current
10 mA
- Nominal current - rounded value
10 mA
- Case material
Plastic
- Manufacturer part #
KM00.1105.11
- Contact material
Tin plated
- Fitting type (details)
Snap-In
- Certification marks
IEC 60320-1|IEC 60127-6|IEC 61058-1|UL 60320-1|CSA C22.2 NO. 60320-1
- Number of pins
3
- Width
30.5 mm
- Height
32.9 mm
- Length
50.0 mm
- RoHS-compliant
Yes
IP40
- Type
KM00.1105.11
- Leading contact (PE)
Yes
- Mounting type
Front
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3345659 Schurter KM00.1105.11 IEC connector Plug, straight Total number of pins: 3 + PE 10 mA Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3345659 Schurter KM00.1105.11 IEC connector Plug, straight Total number of pins: 3 + PE 10 mA Black 1 pc(s) Piece
Description
Combination consisting of cold-device plug C14 with 2-pole rocker switch and 2-pole fuse holder for two device fuses (5x20mm)
With protective cover
This text is machine translated.
With protective cover
This text is machine translated.
Hints
Fuse drawer is not included in the scope of delivery and must be ordered separately
