Name: Schwaiger FEB4004 531 Earth terminal
Brand: Schwaiger
SKU: 1497084

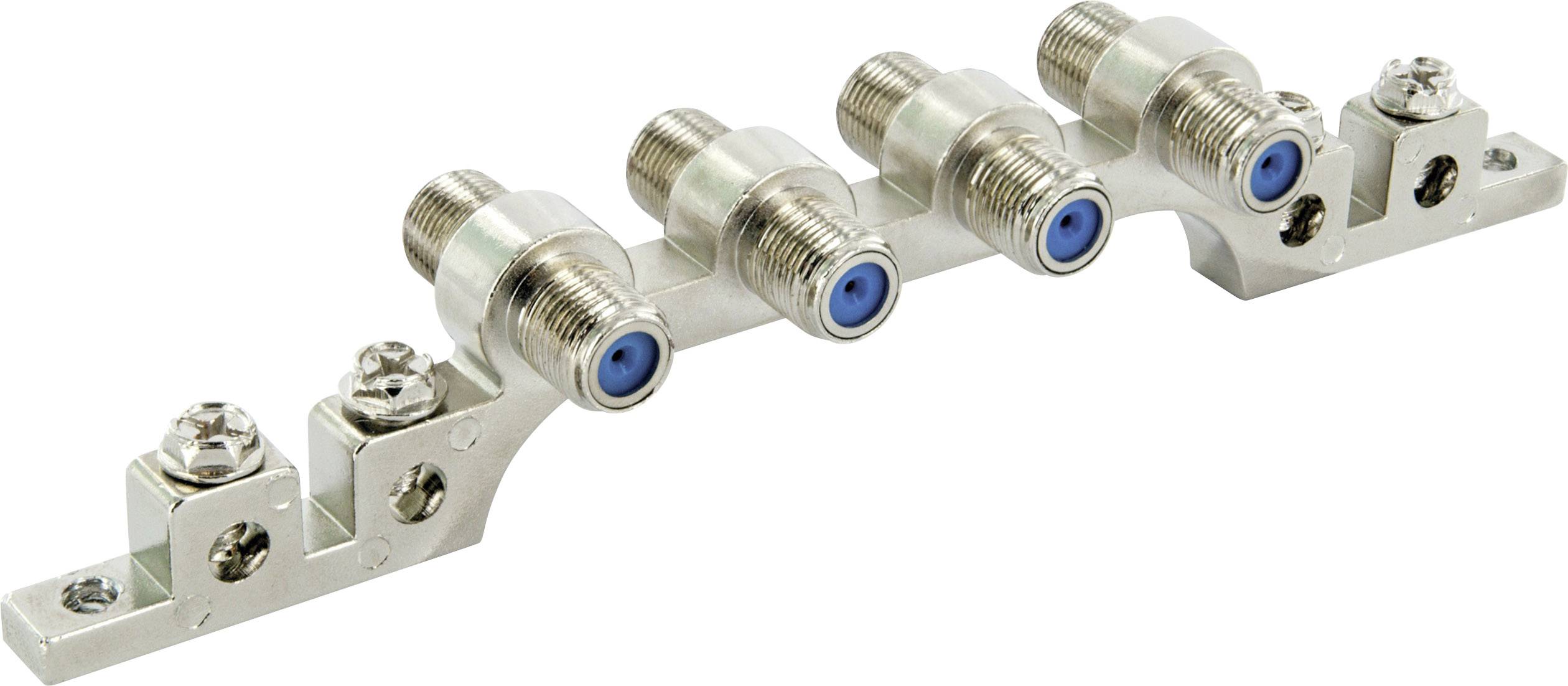

A metallic distribution block with five coaxial connectors in a row, mounted on a mounting plate with screws.

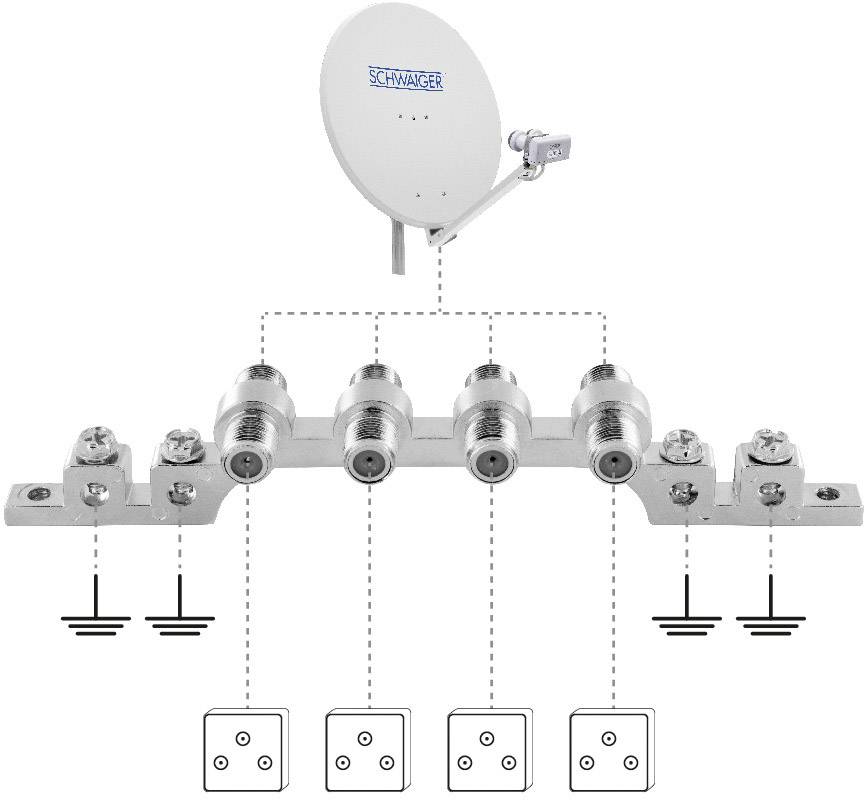

'Diagram of a satellite dish with wiring to a distributor with five outlets leading to ground inputs.'

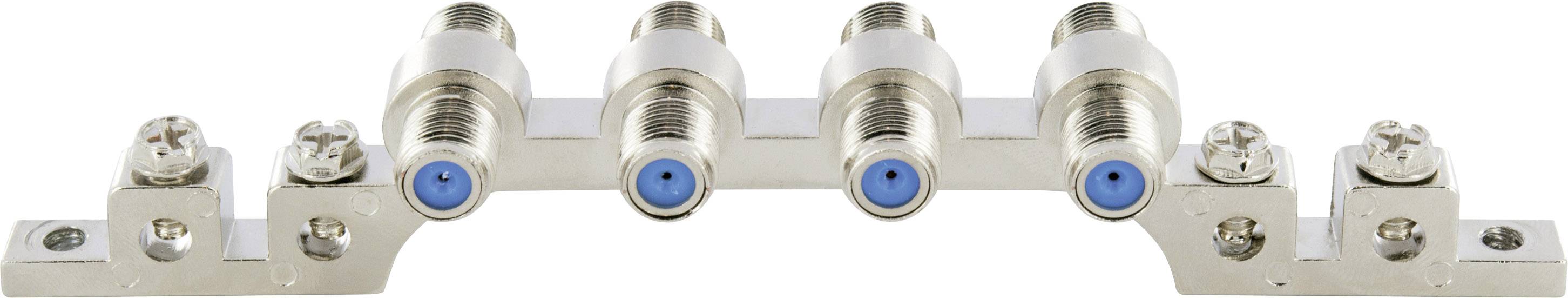

Metal distribution block with four coaxial connections, suitable for distributing television signals.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Schwaiger FEB 4004 531 4-way F-earthing block

Central equipotential bonding via the shielding of the coaxial cable
Prevention of voltage differences in cables in BK, antenna and satellite systems
Not for lightning current dimensioned!

Technical specifications

Content: 1 pc(s)

Product type: Earth terminal

Factory colour: Silver

Material: Metal

UKCA: yes

Description

This schwaiger ® 4-way earthing block is used for grounding and the equipotential bonding of coaxial cables as well as metal housings of multi-switches. The equipotential bonding is in BK, antenna and satellite systems always required. In satellite systems without multi-switch or with multi-switch, without their own ground terminal, the shields of all coaxial cable via the earthing block, and therefore voltage differences are avoided. From there then carries out the ground cable to the equipotential bonding rail.
