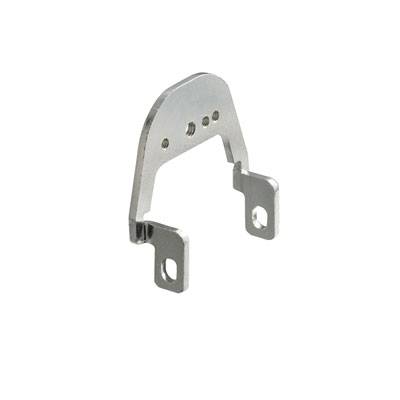

Screen holder HDC SHIELD LEVER 3 SC Weidmüller Content: 1 pc(s) Screen bracket
EAN:
Part number:
Item no:
Product type
Screen bracket
Type
HDC SHIELD LEVER 3 SC
Manufacturer part #
1867390000
Content
1 pc(s)
Height
45 mm
Datasheet (PDF)
Highlights & Details
Screen holder
- HDC SHIELD lever 3 SC
Technical specifications
- Type
HDC SHIELD LEVER 3 SC
- Product type
Screen bracket
- Manufacturer part #
1867390000
- Content
1 pc(s)
- Height
45 mm
- Length
10 mm
- Width
40 mm
- Weight
18 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204365 Screen holder HDC SHIELD LEVER 3 SC Weidmüller Content: 1 pc(s) Screen bracket
User & Safety Instructions
User & Safety Instructions 204365 Screen holder HDC SHIELD LEVER 3 SC Weidmüller Content: 1 pc(s) Screen bracket
Description
Shield bracket. Heavy plug connector for the shield support in connectors, there are numerous requirements. In order to these requirements, there are several coordinated solutions to choose from: Screen dissipation via a EMC cable gland. Use of shield mounts in connection with shield clips. The screen holder may vary depending on the type with the standard inserts, modular system ConCept with plastic frame or modular system ConCept with metal frame can be used. The mounting of the shielded conductors on the screen holder is done with shield clips. The shield clips are available in various sizes depending on the type of conductor available..
