SECH EDLC Radial lead 25 F 3.0 V 20 % (Ø x H) 16 mm x 25.0 mm 1 pc(s)
Product type
EDLC
Type
Radial lead
Capacity (elec.)
25 F
Nominal voltage
3.0 V
Dim
(Ø x H) 16 mm x 25.0 mm
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
SECH SA ultracap-Elko 25F 3V 25x16mm RM7.5
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series C16S
- Weight: 7.5 g
- Solder-able 260°C / 5s
- Name: UltraCap
- Design_1: Radial
- Technology: Electric double-layer capacitor (EDLCs)
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: Small cell ultra capacitors, solderable type
- Nominal voltage: 3V/DC
- Tolerance 10...+20%
- High capacity and low ESR
- High cycle life of 500,000 cycles
- Outstanding DC life: 1000h @65°C.
- Anti-wetting design
- Small size
- Wire diameter 0.8 mm.
- Pitch_1:7.5 mm
- Capacity 25 F
- Capacity_1: 25
- Unit of capacity: F
- Capacity Tolerance 20%
- Max. current 23.1 A.
- Equivalent Series Resistance (ESR): 0.015 ohms
- Nominal voltage DC 3.0 V
- Lifetime_1: 1,000 h
- Capacitor type low ESR
- Product type
EDLC
- Type
Radial lead
- Dim
(Ø x H) 16 mm x 25.0 mm
- Capacity (elec.)
25 F
- Nominal voltage
3.0 V
- Tolerance ±
20 %
- Height
25.0 mm
- (Ø)
16 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
C16S-3R0-0025
- Operating temperature (max.)
65 °C
- Operating temperature (min.)
-40 °C
- Certification marks
Shock and Vibration: MIL-STD-202, Procedure 213, Fig. 1, Condition C.; Procedure 204 (according to AEC-Q200)
Documents & Downloads
Datasheet
Datasheet 3463519 SECH EDLC Radial lead 25 F 3.0 V 20 % (Ø x H) 16 mm x 25.0 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3463519 SECH EDLC Radial lead 25 F 3.0 V 20 % (Ø x H) 16 mm x 25.0 mm 1 pc(s)
Description

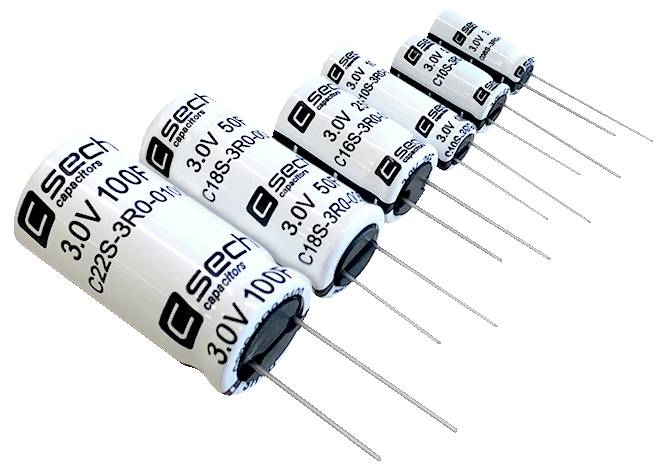

Ultracap series C_Sund M00S_
