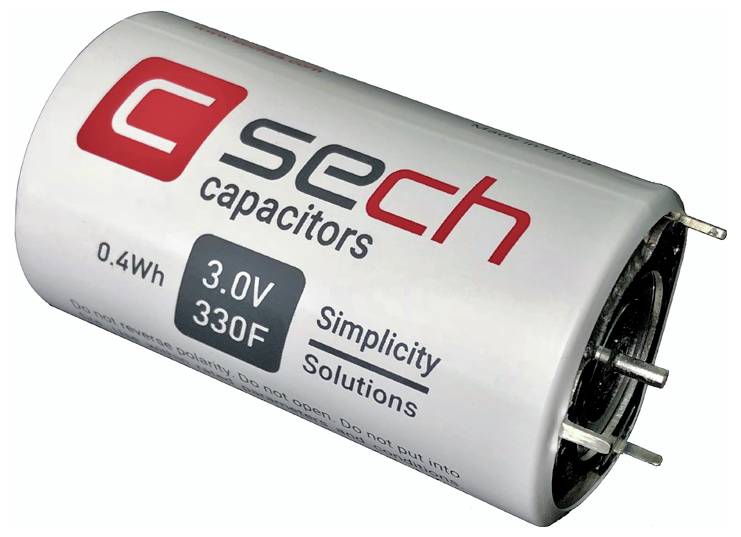

SECH EDLC Radial lead 330 F 3.0 V 20 % 1 pc(s)
Product type
EDLC
Type
Radial lead
Capacity (elec.)
330 F
Nominal voltage
3.0 V
Tolerance ±
20 %
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
SECH SA Ultracap electrolytic capacitor 330F 3V 62.7x35.3mm
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series: C35S
- Weight: 70 g
- Solder-able 260°C / 5s
- Name: UltraCap
- Design_1: Radial
- Technology: Electric double-layer capacitor (EDLCs)
- Mounting type_1: THT
- Delivery form_1: Loose
- Properties_1: Ultra capacitors with Ø 35mm
- Nominal voltage: 3V/DC
- Tolerance 0...+20%
- Highest power density based on extremely low ESR
- High cycle life of 1 million cycles
- Outstanding DC life: 1500h @65°C.
- Hermetically sealed cell
- Radial clamps for PCB mounting
- Laser-welded design of robust cells
- Capacity 330 F
- Capacity_1: 330
- Unit of capacity: F
- Capacity Tolerance 20%
- Max. current 355 A.
- Equivalent Series Resistance (ESR): 0.0009 ohms
- Nominal voltage DC 3.0 V
- Lifetime_1: 1,500 h
- Capacitor type low ESR
- Product type
EDLC
- Type
Radial lead
- Capacity (elec.)
330 F
- Nominal voltage
3.0 V
- Tolerance ±
20 %
- Height
62.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
C35S-3R0-0330
- Operating temperature (max.)
65 °C
- Operating temperature (min.)
-40 °C
- Certification marks
Shock: IEC 60068-2-27: Vibration: ISO 16750 Table 12
Documents & Downloads
Datasheet
Datasheet 3463520 SECH EDLC Radial lead 330 F 3.0 V 20 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3463520 SECH EDLC Radial lead 330 F 3.0 V 20 % 1 pc(s)
Description
Ultracap series C_Sund M00S_
