SelfChill Air Indoor 45/75 A-F 03.2529.00.00 Solar cooling unit
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

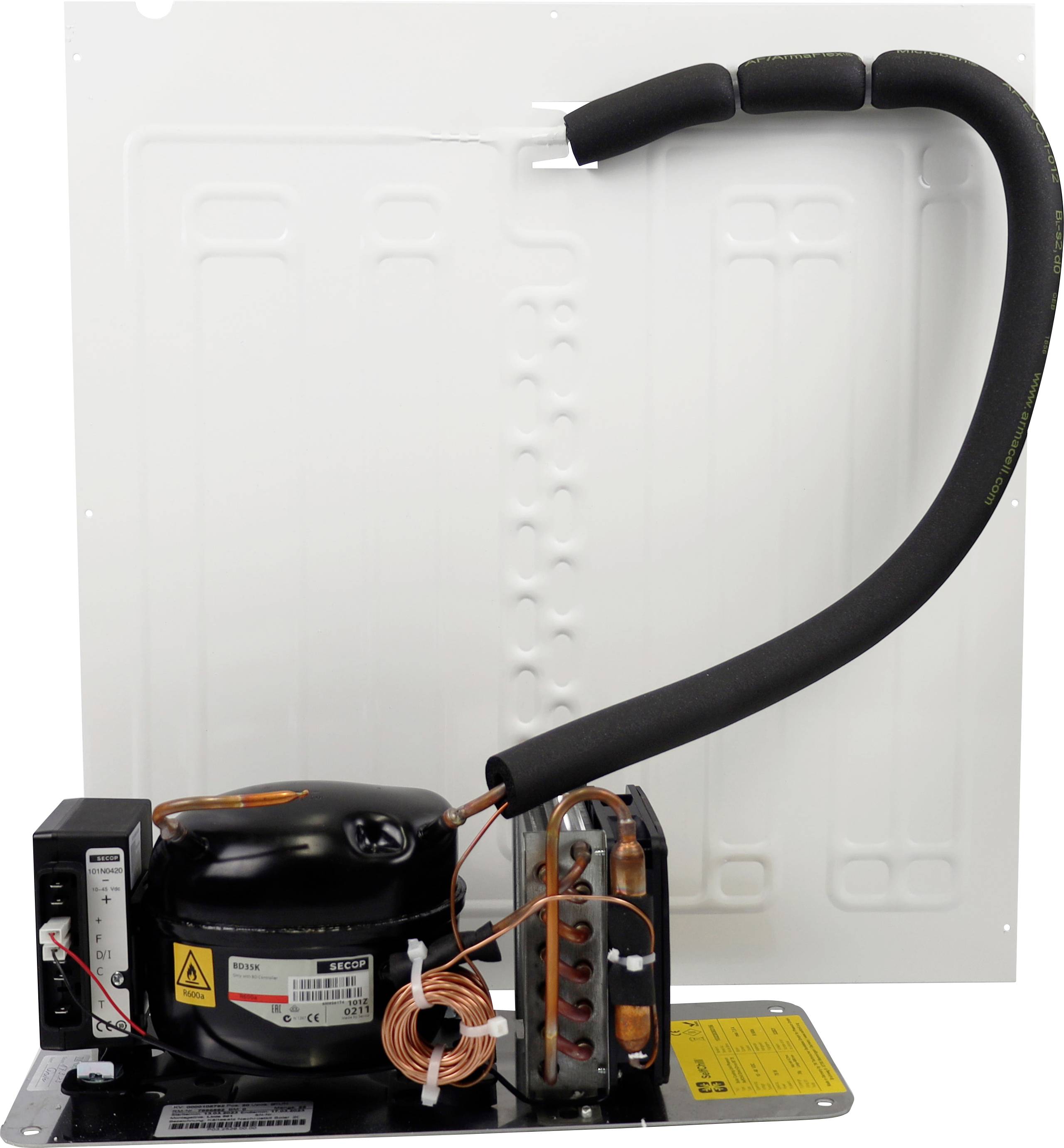

SelfChill Air Indoor 45/75 A-F Solar cooling unit
- Solar direct drive cooler, 10-45 VDC, 50-75 W
- Forced convection capacitor for indoor applications
- White evaporator plate 515 x 502 mm for air cooling
- Plug & Play and filled with R600A
- 10 - 40 VDC, 75 W max. Consumption
Technical specifications
- Power consumption 45 W (at 2000 1/min) - 75 W (at 3500 1/min)
- Temperature range:
- Evaporator: -5°C to 15°
- Surroundings: 10°C to 45°C.
- Voltage range 10 - 45 VDC
- Refrigerant R-600a (Isobutane), 35 g
- Dim. Evaporator plate (H x W) 515.8 x 502.6 mm
- Suction line between compressor and evaporator (diameter/length): 0.8 / 600 mm
- Product type
Solar cooling unit
- Dim
(W x H) 502.6 mm x 515.8 mm
- Width
502.6 mm
- Height
515.8 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3375290 SelfChill Air Indoor 45/75 A-F 03.2529.00.00 Solar cooling unit
User & Safety Instructions
User & Safety Instructions 3375290 SelfChill Air Indoor 45/75 A-F 03.2529.00.00 Solar cooling unit
Description
The SelfChill Air/Liquid cooling units are hermetically sealed cooling units that operate as a steam compression heat pump.
They are filled with refrigerant and can be connected to a PV system with or without batteries for various cooling applications.
The units consist of the following components: Compressor (SECOP BD35K), condenser, evaporator plate and control unit (SECOP 101N042).

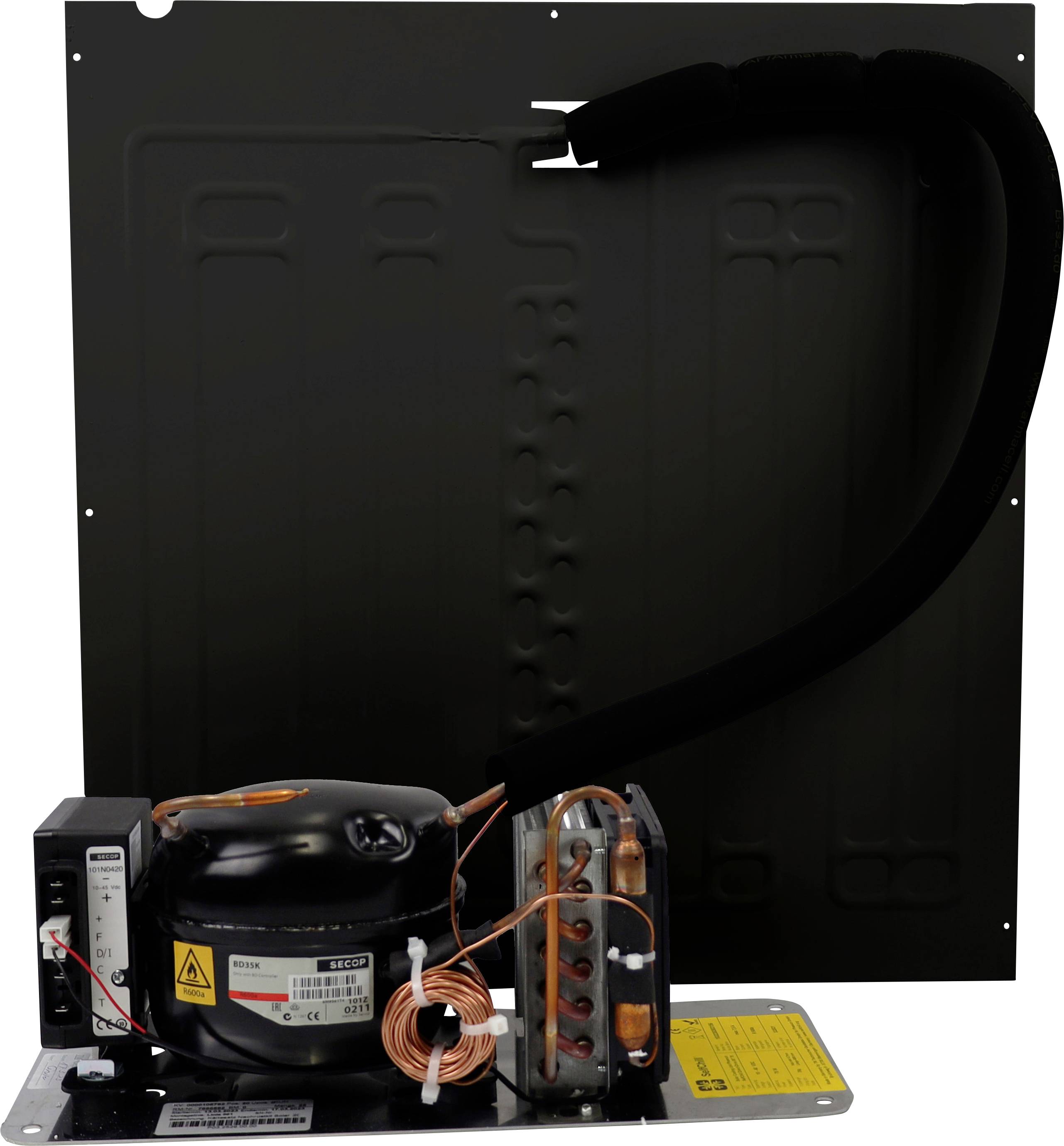

The indoor versions use a forced air capacitor (322021, 322110). The indoor version is available with two different coatings on the evaporator plate. Article 322021 shall have a white anti-corrosive coating for applications in contact with air or solid parts, during which Article 322110 shall have a special rubber coating designed for applications where water or liquids are to be cooled.
Benefits:
Combine your own solar-powered cooling system with climate-friendly refrigerants
Direct connection to PV modules under 45 V DC open circuit voltage or 12/24 V DC batteries
Automatic speed control depending upon the current cooling requirement.
