SelfSat H30 D SAT system w/o receiver No. of participants: 1
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

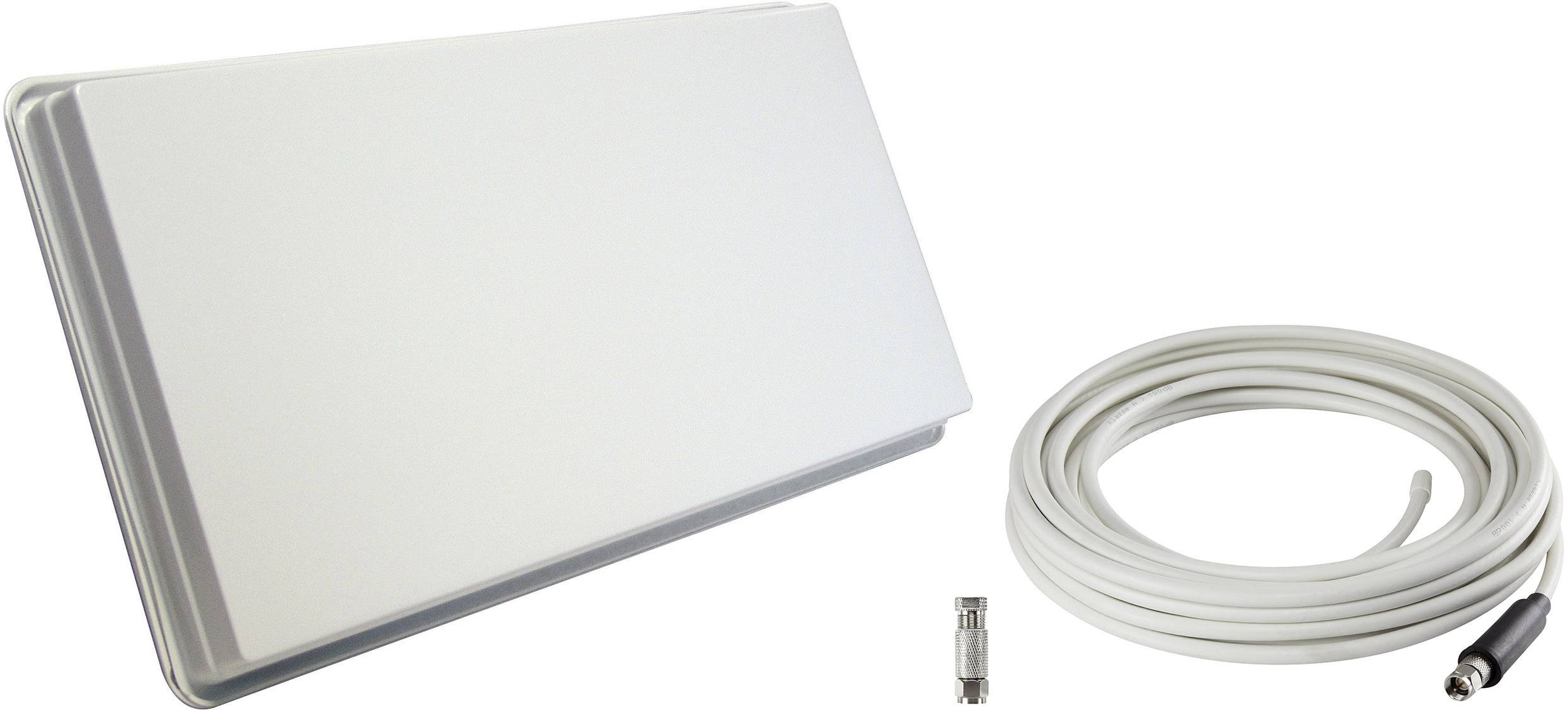

SelfSat H30 D including Satellite connection kit premium line
- Extremely flat
- Single LNB integrated and pre-mounted
- Easy to use
- Cable 4-way shielded
Technical specifications
- Participants
1
- Product type
SAT system w/o receiver
Single LNB
- Factory colour
White
- Pole mount (max.)
60 mm
- Pole mount (min.)
40 mm
- Width
512 mm
- Height
272 mm
- Depth
52 mm
- Reflective material
Plastic
- Satellites
1
- Package content
LNB
SAT dish
Documents & Downloads
Datasheet
Datasheet 1400633 SelfSat H30 D SAT system w/o receiver No. of participants: 1
User & Safety Instructions
User & Safety Instructions 1400633 SelfSat H30 D SAT system w/o receiver No. of participants: 1
Description
Completely in white, the shapely, unbelievably small satellite antenna provides the desired reception freedom to every television consumer completely inconspicuously.
Below is a selection of satellite positions for TV satellites than can be received for Europe:
Eutelsat (Hot Bird), 13° east from reflector diameter 60 cm
Astra, 19.2° east, from dia. 35 cm
Astra, 23.5° east, from dia. 50 cm
The specified reflector diameter is the minimum for normal satellite antennas, and no bad weather reserve has been taken into account. It has also been assumed that you only wish to receive digital programmes. If in doubt, take a reflector one size larger to receive the corresponding satellite without any problems
Satellite connection kit premium line
This SAT-Set place the foundation stone for a stable, interference-free signal transmission. It is equally suitable for tv and radio broadcasts, as well as for high-speed internet via cable. The connection kit consisting of highly shielded SAT cable with waterproof F-plugs. Perfect for extremely long cable runs.
This text is machine translated.
Below is a selection of satellite positions for TV satellites than can be received for Europe:
Eutelsat (Hot Bird), 13° east from reflector diameter 60 cm
Astra, 19.2° east, from dia. 35 cm
Astra, 23.5° east, from dia. 50 cm
The specified reflector diameter is the minimum for normal satellite antennas, and no bad weather reserve has been taken into account. It has also been assumed that you only wish to receive digital programmes. If in doubt, take a reflector one size larger to receive the corresponding satellite without any problems
Satellite connection kit premium line
This SAT-Set place the foundation stone for a stable, interference-free signal transmission. It is equally suitable for tv and radio broadcasts, as well as for high-speed internet via cable. The connection kit consisting of highly shielded SAT cable with waterproof F-plugs. Perfect for extremely long cable runs.
This text is machine translated.
Features
- Compact design, almost invisible through stickable motives
- Universal application possibilities
- Reception of digital Sat- and radio programmes
- Reception power (Gain) 33.7 dB at 12.75 GHz
- Temperature resistant from -30 to +60ºC
- Reception frequency 10.7 - 12.75 GHz
- Oscillation frequency 9.75 / 10.6 GHz
- Cable: shielding 100 dB
- Diameter (insulation) 7.5 mm
- Type A: open end
- Type B: F-plug
Scope of delivery
- Flat antenna
- Fixings
- 1 F-plug with rubber bushings installed
- 1 F-plug included
- 10 Meter Cable
- User manual.
