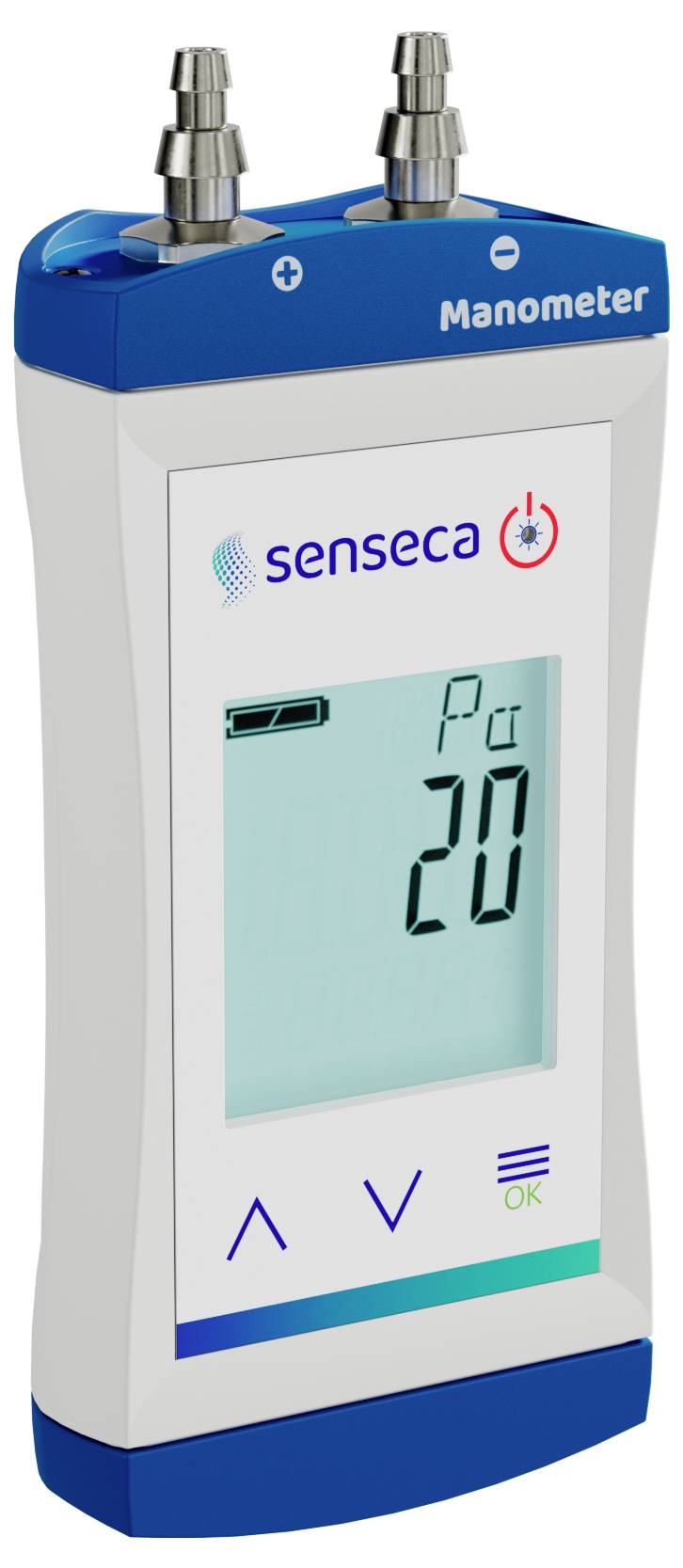

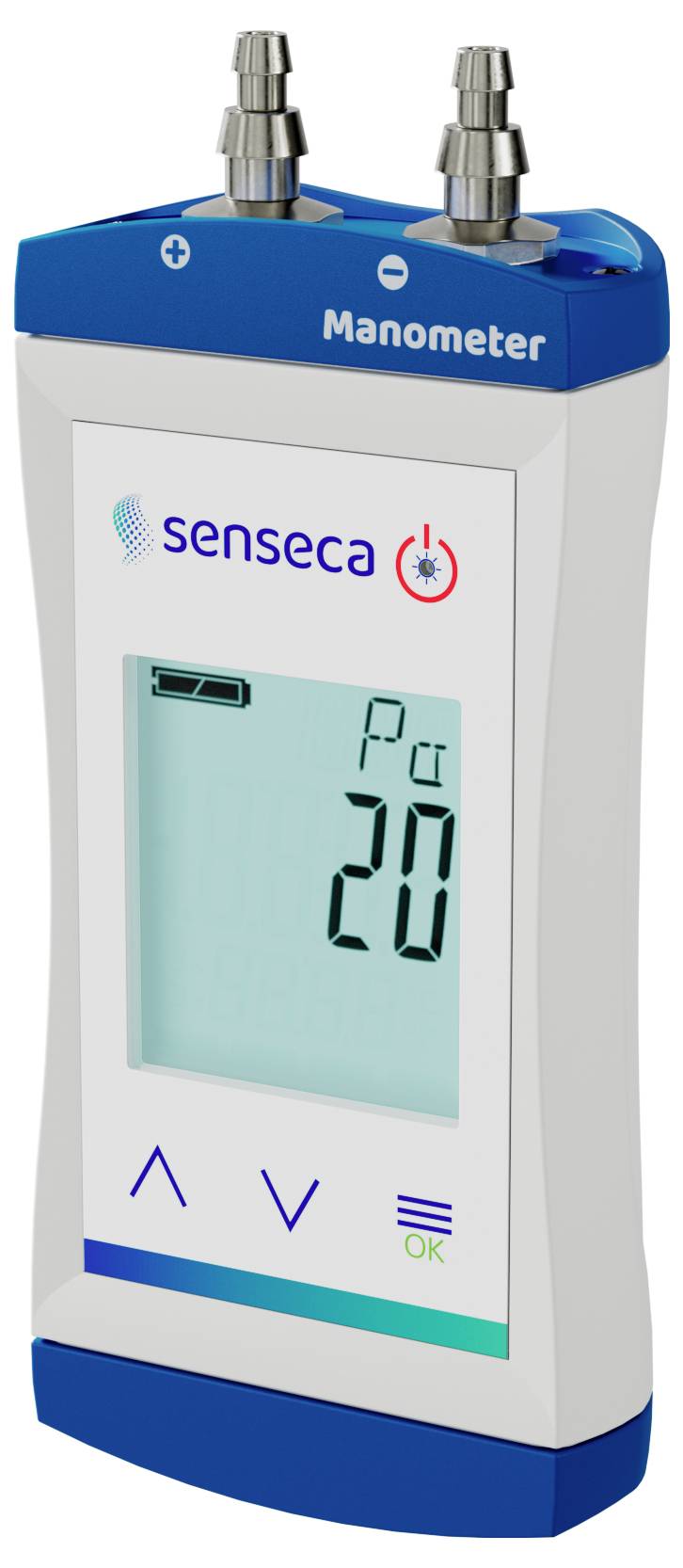

Senseca ECO 210-5-UT Pressure gauge Pressure 2000 hPa (max)

While developing the new ECO-line the main focus was placed on the essential functions of the measurement technology. The heart of the device - the sensor - is a high-quality component - which is characterized in this device class. The high reliability, speed and precision of the ECO-line versions, packed in a compact and water-protected casing makes the devices an ideal partner for industry and trade, Made in Germany. ECO 210-3 Fine pressure manometer for use in heating, ventilation and air conditioning systems (HVAC). The measurement range up to 200 hPa (mbar) / 20 kPa and the high resolution up to 0.1 Pascal in optimized fine pressure mode cover the main applications for gas pressure 150 hPa (mbar) and burner setting with a single device. The high precision makes it easier, for example, to set compressed air or draft air measurements. The measurement is independent of the orientation of the device - better than with many, also far more expensive, competitors.


Display
3-line segment LCD
Additional symbols
Illuminated (white, light-on time adjustable)
Overhead display at the touch of a button

Standard functions
Min/Max/Hold
Auto power-off function / If activated, the product switches off automatically

Reconciliation
Zero point and slope setting

Housings
Unbreakable ABS casing
Protection type IP67 (pressure connections must be protected against contamination and moisture)
