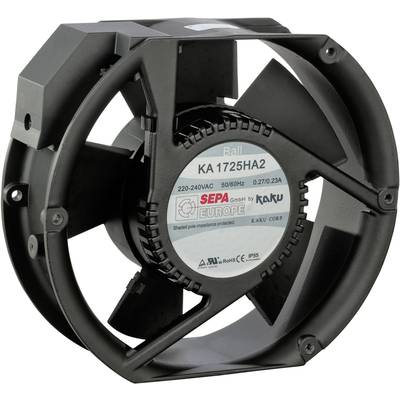

SEPA KA1725HA2BMT/Mg Axial fan 230 V AC 340 m³/h (L x W x H) 173 x 150 x 51 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
50 W
Type of bearing
Double ball bearing
Air flow rate
340 m³/h
Datasheet (PDF)
118 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€
Highlights & Details
SEPA KA1725HA2BMT/Mg Axial fan 230 V AC 340 m³/h (L x W x H) 173 x 150 x 51 mm
- Designed for industrial use
- Remarkable air flow performance
- High shock and vibration resistance
Technical specifications
- MTTF: 120000 h
- Product type
Axial fan
- Type
KA1725HA2BMT/Mg
- Nominal voltage
230 V AC
50 W
- Type of bearing
Double ball bearing
- Rotational speed
2700 U/min
- Noise emission (max.)
57 dB
- Air flow rate
340 m³/h
- Connection
Type C CEE 7/16 plug 2.8 mm
- Pressure (max.)
127 Pa
- Factory colour
Black
- Material
Metal
(L10) 40000 h
IP55
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Length
173 mm
- Width
150 mm
- Height
51 mm
- Dim
(L x W x H) 173 x 150 x 51 mm
50 W
- Output (max.) (details)
340 m³/h
- Max. noise generation
57 dBa
- Nominal voltage (details)
230 V AC
- Type
KA1725HA2BMT
- Temperature range
-40 - +80 ºC °C
- Operating voltage
198 - 253 V AC
Documents & Downloads
Datasheet
Datasheet 189493 SEPA KA1725HA2BMT/Mg Axial fan 230 V AC 340 m³/h (L x W x H) 173 x 150 x 51 mm
Datasheet 189493 SEPA KA1725HA2BMT/Mg Axial fan 230 V AC 340 m³/h (L x W x H) 173 x 150 x 51 mm
User & Safety Instructions
User & Safety Instructions 189493 SEPA KA1725HA2BMT/Mg Axial fan 230 V AC 340 m³/h (L x W x H) 173 x 150 x 51 mm
Conformity certificate
Conformity certificate 189493 SEPA KA1725HA2BMT/Mg Axial fan 230 V AC 340 m³/h (L x W x H) 173 x 150 x 51 mm
Description
The SEPA KA1725HA2BMT/Mg Axial fan 230 V AC 340 m³/h (L x W x H) 173 x 150 x 51 mm is high quality, ball bearing powerful exhaust for extreme demands. It has permanent electronic protection against blocking and thermal overloading. Other features of this fan are, extremely rugged and dimensionally stable aluminium casing, magnesium blades as well as the ball bearings made of special steel. Clockwise rotation; blows over bars
