1/8

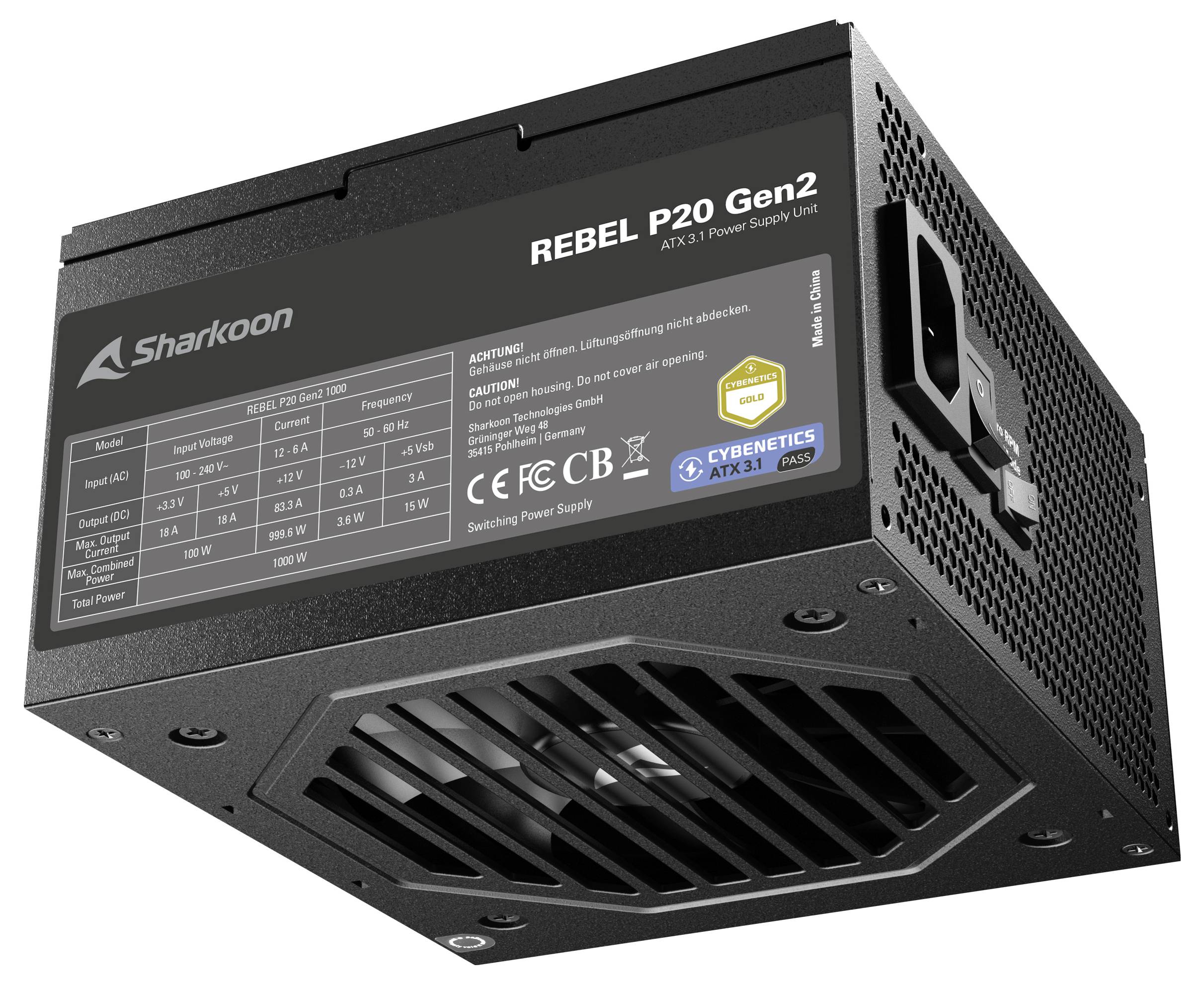

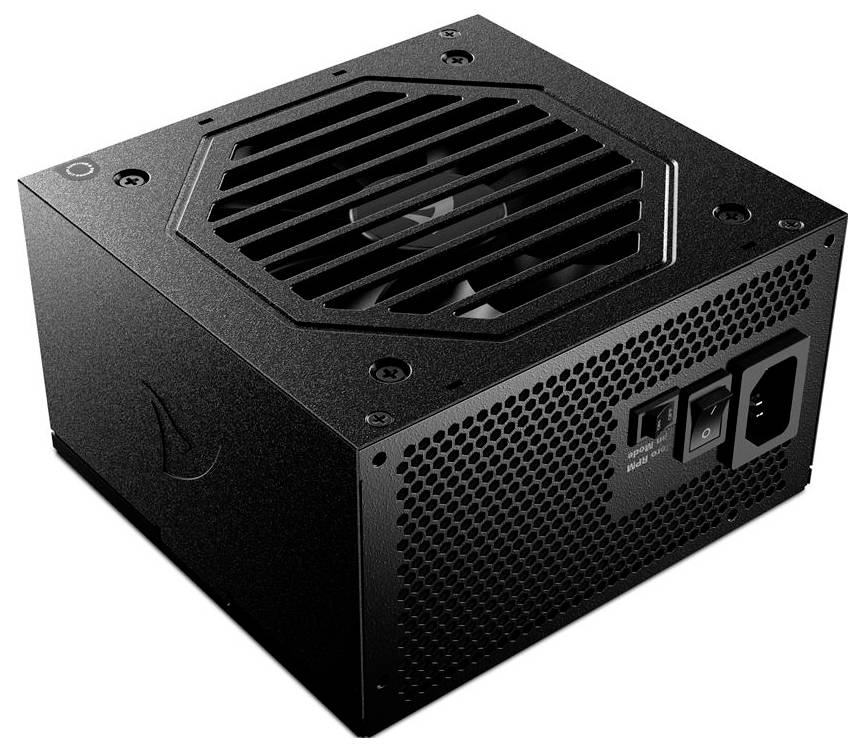

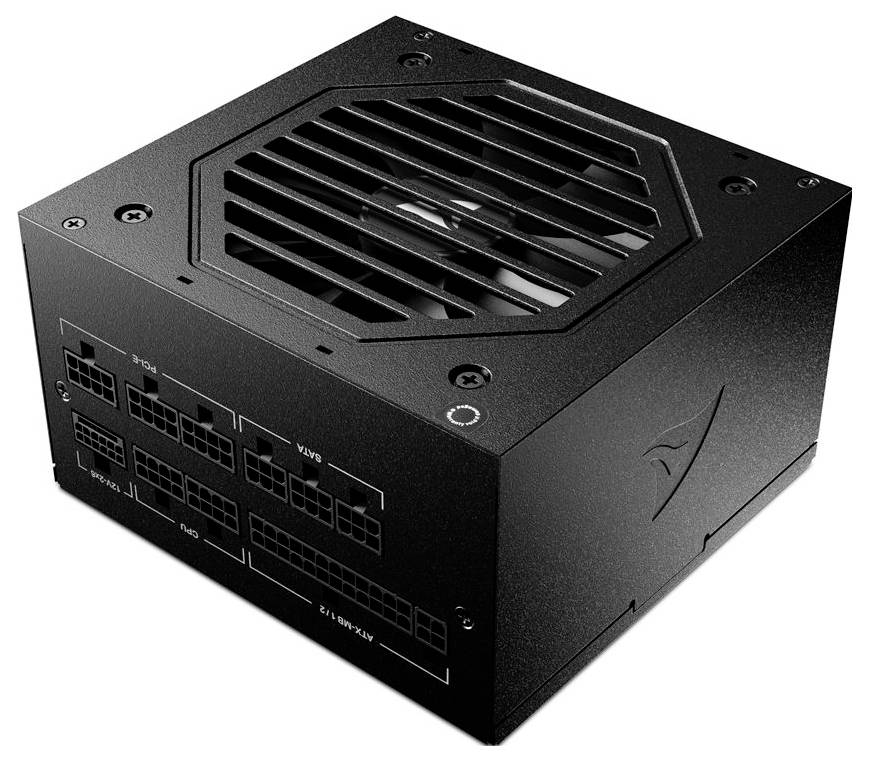

Sharkoon Sharkoon Netzteil Rebel P20 Gen2 1000W H PC power supply unit 1000 W ATX Cybenetics Gold
Product type
PC power supply unit
PSU output power
1000 W
Modular
Yes
Certification
Cybenetics Gold
Form factor
ATX
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Sharkoon Sharkoon Netzteil Rebel P20 Gen2 1000W H PC power supply unit
- Power supply unit output 1000 W
- PCI-Express (6+2-Pin) 3x
- Cable management Yes
- Cybenetics Gold
Technical specifications
- Operating temperature: 0 to +40 °C
- Japanese capacitors only: Yes
- Average life: Min. 100,000 hours
- INPUT CURRENT (110/230 V) 12 A / 6 A
- Max. Combined power 3.3 V + 5 V: 100 W
- Max. Combined power 12 V: 999.6 W.
- Load 12V-2x6 600 W
- Flat cables: Yes
- Maximal cable length 97 cm
- Bearing type: Hybrid magnetic bearing
- Protection functions: Overcurrent protection, overvoltage protection, undervoltage protection, short-circuit protection, overheating protection, Overload protection
- Product type
PC power supply unit
- PSU output power
1000 W
- Modular
Yes
- Certification
Cybenetics Gold
- Form factor
ATX
- Factory colour
Black
- ATX version
ATX 3.1
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
1.374 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
83.3 A
- 5 V DC
18 A
- +5V / DC SB
3 A
- 24-pin
1
- 4-pin Molex
1
- 4+4 pin ATX/EPS 12V
2
- 6-pin PCIe
3
- 5-pin SATA
7
- Power rating
751 W -
- Fan size
120 mm
- 3.3V DC
18 A
- Operating voltage
100 - 240 V / AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3820448 Sharkoon Sharkoon Netzteil Rebel P20 Gen2 1000W H PC power supply unit 1000 W ATX Cybenetics Gold
User & Safety Instructions
User & Safety Instructions 3820448 Sharkoon Sharkoon Netzteil Rebel P20 Gen2 1000W H PC power supply unit 1000 W ATX Cybenetics Gold
Description
With the Rebel P20 Gen2 Sharkoon relies on a powerful and reliable power supply for modern gaming and high-performance systems. Thanks to ATX-3.1 compatibility, Cybenetics Gold certification and fully modular cable management, the power supply offers high efficiency as well as a clean and flexible system integration. High-quality Japanese capacitors, a quiet hybrid magnetic bearing fan and comprehensive protection features ensure stable and safe operation.
ATX-3.1 compatibility with Cybenetics Gold certification
The Rebel P20 Gen2 meets the current ATX 3.1 standard and meets high requirements for efficiency and stability. The Cybenetics Gold certification stands for an efficient power supply and supports a reliable performance for modern PC systems.

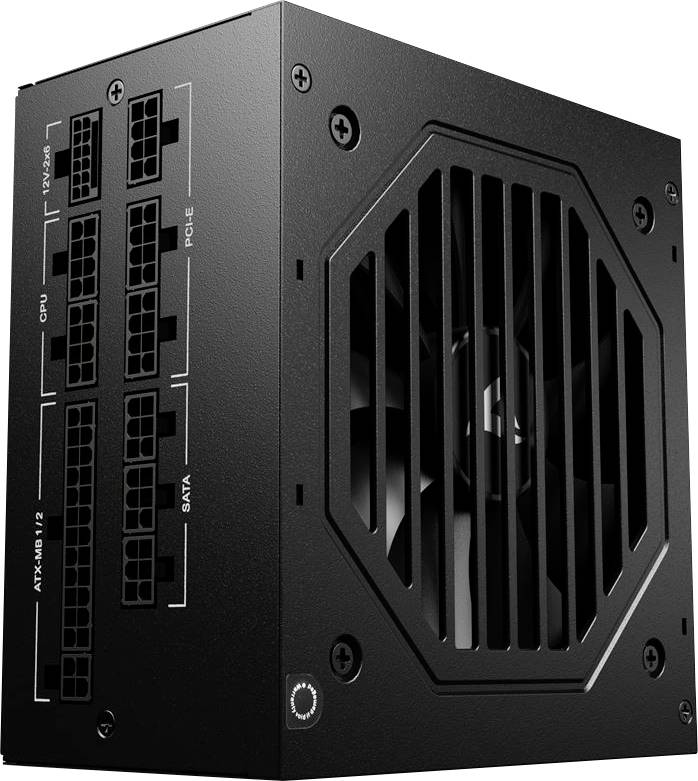

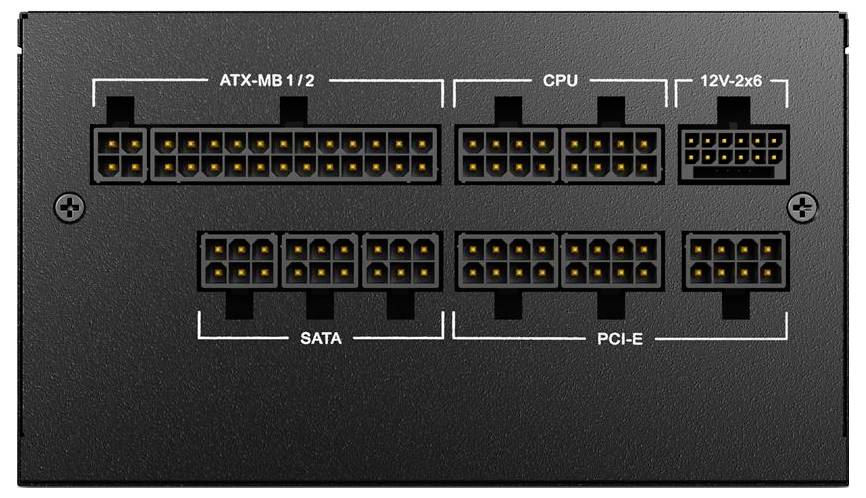

Fully modular cable management
Thanks to a fully modular cable management, only the cables actually needed are connected. The flexible cables enable a comfortable installation and provide for a tidy system structure as well as an improved air flow in the housing.
High quality Japanese capacitors
Only Japanese capacitors are used inside the Rebel P20 Gen2. These stand for a particularly high reliability, stable voltage supply and a long service life of the power supply.
Support of modern graphics cards
With a native 12V-2×6 port, the power supply is optimally prepared for current and future generations of high performance graphics cards and enables a direct and stable power supply of modern GPUs.

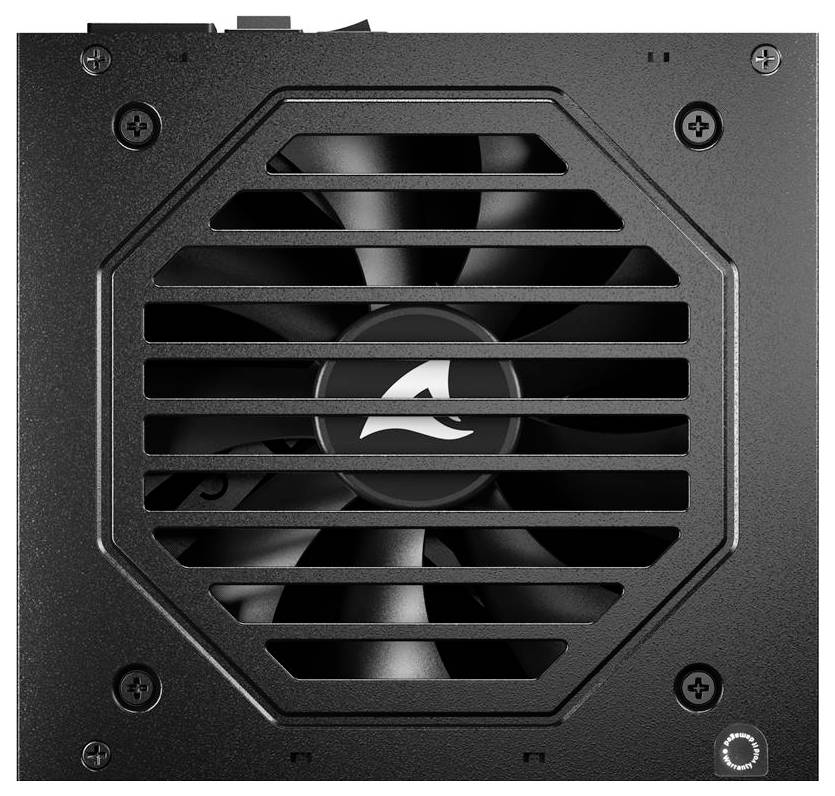

Quiet operation with hybrid magnetic bearing fan

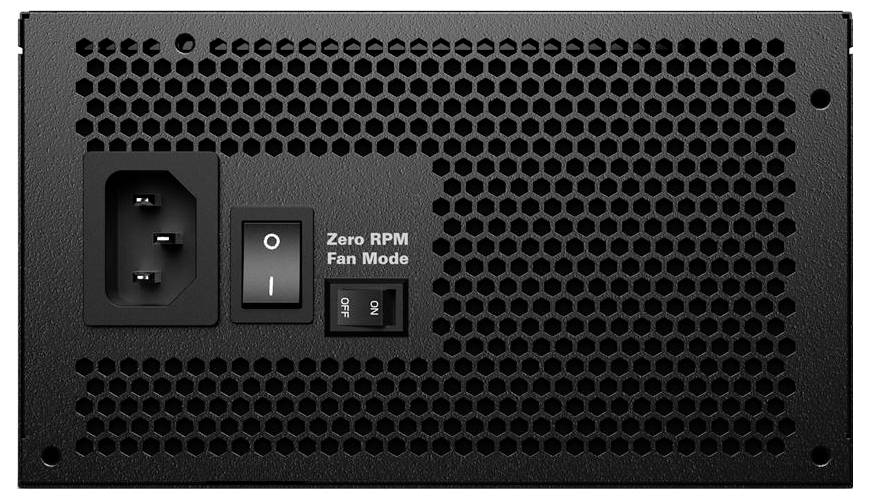

The 120-mm fan with hybrid magnetic bearing ensures efficient cooling with low operating noise. The integrated Zero RPM mode switches off the fan completely under low load and thus enables an almost noiseless Operating.
Extensive protective functions
Comprehensive, integrated protective circuits reliably protect the system against electrical risks and contribute to the safe operation of all components installed.
This text is machine translated.
ATX-3.1 compatibility with Cybenetics Gold certification
The Rebel P20 Gen2 meets the current ATX 3.1 standard and meets high requirements for efficiency and stability. The Cybenetics Gold certification stands for an efficient power supply and supports a reliable performance for modern PC systems.
Fully modular cable management
Thanks to a fully modular cable management, only the cables actually needed are connected. The flexible cables enable a comfortable installation and provide for a tidy system structure as well as an improved air flow in the housing.
High quality Japanese capacitors
Only Japanese capacitors are used inside the Rebel P20 Gen2. These stand for a particularly high reliability, stable voltage supply and a long service life of the power supply.
Support of modern graphics cards
With a native 12V-2×6 port, the power supply is optimally prepared for current and future generations of high performance graphics cards and enables a direct and stable power supply of modern GPUs.
Quiet operation with hybrid magnetic bearing fan
The 120-mm fan with hybrid magnetic bearing ensures efficient cooling with low operating noise. The integrated Zero RPM mode switches off the fan completely under low load and thus enables an almost noiseless Operating.
Extensive protective functions
Comprehensive, integrated protective circuits reliably protect the system against electrical risks and contribute to the safe operation of all components installed.
This text is machine translated.
Scope of delivery
- Rebel P20 Gen2 1000
- IEC Mains Power Cables
- Set with modular cables
- Fixing screws
