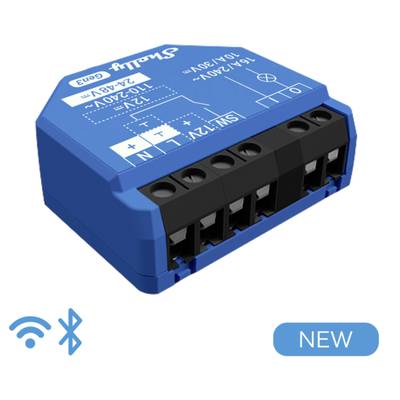

Shelly Shelly 1 Gen 3 Actuator Bluetooth, Wi-Fi
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
5% = € 0.71
€ 13.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€
Highlights & Details
Shelly flush-mounted "1 Gen3" relay max 16 A, 1 channel, WLAN, BT
- WLAN-range extension and Bluetooth gateway
- Potential-free contacts - option for contactor control
- Improved performance - ESP Shelly-C38F with increased 8 MB memory
- Maximum 16 A
Technical specifications
- Wi-Fi protocol 802.11 b/g/n
- Wi-Fi coverage: Up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
- Bluetooth protocol: 4.2
- Bluetooth range: Up to 30 m outdoors, up to 10 m indoors (depending on local conditions)
Alexa
Google Home
- Transfer Standard (Smart Home)
Bluetooth
Wi-Fi
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Channels
1
- Frequency
2.4 GHz
50 m
- Mounting type
Flush mount
- Factory colour
Blue
- Width
42 mm
- Height
38 mm
- Depth
17 mm
- Weight
0.038
n.rel.
- Dim
(W x H x D) 42 x 38 x 17 mm
- Hub
Not required
- Product type
Actuator
Documents & Downloads
Datasheet
Datasheet 3308352 Shelly Shelly 1 Gen 3 Actuator Bluetooth, Wi-Fi
User & Safety Instructions
User & Safety Instructions 3308352 Shelly Shelly 1 Gen 3 Actuator Bluetooth, Wi-Fi
Description
The Shelly 1 Gen3 is a Smart switch with potential-free contacts. You can remotely control a variety of home and office devices from anywhere. Modernize your standard switch boxes, sockets and light switches or any other device with limited space.
This text is machine translated.
This text is machine translated.
Features
- Longer durability of the terminals
- Tremendous safety
- Supported, scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, and custom certificates
- Shelly cloud APP
- No HUB required! Simple control via the Shelly Smart Control APP, different house automation protocols, platforms and voice wizards.
System requirements
- Wi-Fi, iOS, Android, HUAWEI, MQTT
