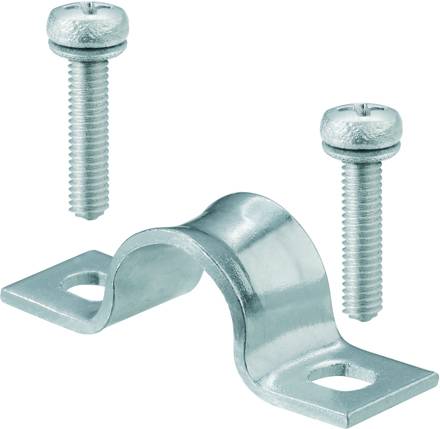

Shield clamp HDC SHIELD CLAMP 8.0 Weidmüller Content: 100 pc(s) Screen clamp
EAN:
Part number:
Item no:
Product type
Screen clamp
Type
HDC SHIELD CLAMP 8.0
Manufacturer part #
1912230000
Content
100 pc(s)
Suitable for
HD
Datasheet (PDF)
Technical specifications
- Type
HDC SHIELD CLAMP 8.0
- Product type
Screen clamp
- Manufacturer part #
1912230000
- Content
100 pc(s)
- Suitable for
HD
- Height
140 mm
- Length
40 mm
- Width
125 mm
- Industrial packaging
Yes
- Weight
4.34 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 365492 Shield clamp HDC SHIELD CLAMP 8.0 Weidmüller Content: 100 pc(s) Screen clamp
User & Safety Instructions
User & Safety Instructions 365492 Shield clamp HDC SHIELD CLAMP 8.0 Weidmüller Content: 100 pc(s) Screen clamp
Description
Shield clamp. Heavy plug connector for the shield support in connectors, there are numerous requirements. In order to these requirements, there are several coordinated solutions to choose from: Screen dissipation via a EMC cable gland. Use of shield mounts in connection with shield clips. The screen holder may vary depending on the type with the standard inserts, modular system ConCept with plastic frame or modular system ConCept with metal frame can be used. The mounting of the shielded conductors on the screen holder is done with shield clips. The shield clips are available in various sizes depending on the type of conductor available..
