Name: SIBA 160000.0,063GT PV fuse SMD 0.063 A 1000 V DC Time delay -T- 1 pc(s)
Brand: SIBA
SKU: 3842422

Ceramic cartridge fuse labeled 'SIBA T2,5A 250V' with metal end caps.

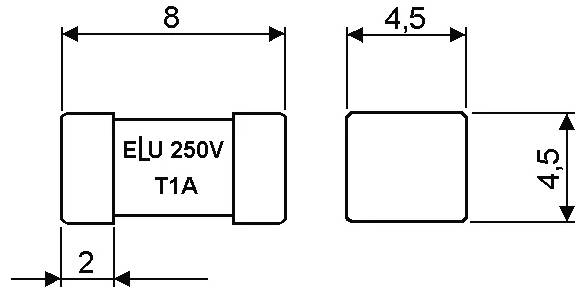

Technical drawing of a fuse showing dimensions: 8 mm length, 4.5 mm width and height, labeled 'ELU 250V T1A'.

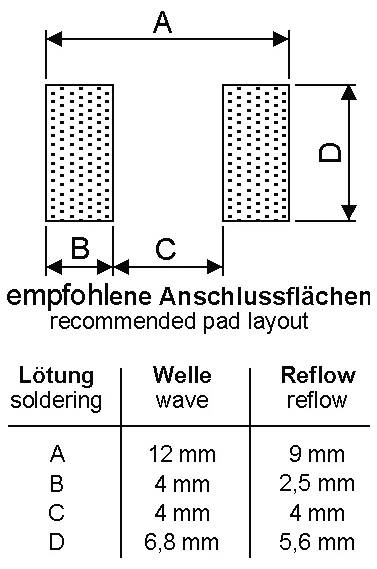

Diagram of recommended pad layout with dimensions A, B, C, D; table compares wave soldering and reflow values in mm.

1/3

SIBA

Product type

PV fuse

Nominal voltage

1000 V DC

Nominal current - rounded value

63 mA

Release characteristics

Time delay -T-

Type

SMD

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SIBA SMD-fuse 160000 slow-blow 100A 250Vac 8x4.5mm

SMD fuse
slow-blow
Anti-transparent ceramic body
Soldering heat resistance (according to IEC60068): 260°C, 10s

Technical specifications

Casing material: Ceramic tube, opaque
Melting Integral: 30 A²/s.
Rated breaking capacity 30,000 A.

Product type: PV fuse

Nominal voltage: 1000 V DC

Dim: (L x W x H) 8.0 x 4.5 x 4.5 mm

Nominal current - rounded value: 63 mA

Nominal current: 0.063 A

Release characteristics: Time delay -T-

Type: SMD

Length: 8.0 mm

Width: 4.5 mm

Height: 4.5 mm

Content: 1 pc(s)

Type: 160000.0,063GT

Weight: 0.7 g

Variants(All information is without VAT, plus shipping costs)

Dim

Nominal current - rounded value

Nominal voltage

Product type

SIBA 160000.0,063GT PV fuse SMD 0.063 A 1000 V DC Time delay -T- 1 pc(s)

Item no:3842422

Unavailable

Conrad Electronic

This article

(L x W x H) 8.0 x 4.5 x 4.5 mm

63 mA

1000 V DC

PV fuse

Piece(s)

Minimum order quantity: 1

Multiple: 1

SIBA 160000.0,04GT Micro fuse SMD 0.04 A 1000 V DC/AC Time delay -T- 1 pc(s)

Item no:3843312

Fast track dispatch on Tue 3 Nov

200 Piece(s)Conrad Electronic

(Ø x H) 10 mm x 4.5 mm

40 mA

1000 V DC/AC

Micro fuse

Piece(s)

Minimum order quantity: 100

Multiple: 1

€ 2.79^*

SIBA 160000.0,1GT Micro fuse SMD 0.10 A 250 V AC Time delay -T- 1 pc(s)

Item no:3843313

Fast track dispatch on Tue 3 Nov

200 Piece(s)Conrad Electronic

(Ø x H) 5 mm x 4.5 mm

100 mA

250 V AC

Micro fuse

Piece(s)

Minimum order quantity: 100

Multiple: 1

€ 1.99^*

SIBA 160000.0,25GT Micro fuse SMD 0.25 A 250 V AC Time delay -T- 1 pc(s)

Item no:3843314

Fast track dispatch on Tue 3 Nov

200 Piece(s)Conrad Electronic

(Ø x H) 5 mm x 4.5 mm

250 mA

250 V AC

Micro fuse

Piece(s)

Minimum order quantity: 100

Multiple: 1

€ 1.49^*

SIBA 160000.0,315GT Micro fuse SMD 0.35 A 250 V AC Time delay -T- 1 pc(s)

Item no:3843315

Fast track dispatch on Tue 3 Nov

200 Piece(s)Conrad Electronic

(Ø x H) 5 mm x 4.5 mm

350 mA

250 V AC

Micro fuse

Piece(s)

Minimum order quantity: 100

Multiple: 1

€ 1.49^*

SIBA 160000.0,5GT Micro fuse SMD 0.50 A 250 V AC Time delay -T- 1 pc(s)

Item no:3843316

Fast track dispatch on Tue 3 Nov

200 Piece(s)Conrad Electronic

(Ø x H) 5 mm x 4.5 mm

500 mA

250 V AC

Micro fuse

Piece(s)

Minimum order quantity: 100

Multiple: 1

€ 1.49^*

SIBA 160000.1GT Micro fuse SMD 1.00 A 250 V AC Time delay -T- 1 pc(s)

Item no:3843317

Fast track dispatch on Tue 3 Nov

200 Piece(s)Conrad Electronic

(Ø x H) 5 mm x 4.5 mm

1 A

250 V AC

Micro fuse

Piece(s)

Minimum order quantity: 100

Multiple: 1

€ 1.49^*

SIBA 160000.3,15GT SMD fuse SMD 3.15 A Time delay -T- 1 pc(s)

Item no:3843318

Fast track dispatch on Tue 3 Nov

200 Piece(s)Conrad Electronic

(L x W x H) 8.0 x 4.5 x 4.5 mm

3.15 A

SMD fuse

Piece(s)

Minimum order quantity: 100

Multiple: 1

€ 1.49^*

SIBA 160000.0,05GT Micro fuse SMD 0.05 A 250 V AC Time delay -T- 1 pc(s)

Item no:3842421

Unavailable

Conrad Electronic

(Ø x H) 5 mm x 4.5 mm

50 mA

250 V AC

Micro fuse

Piece(s)

Minimum order quantity: 1

Multiple: 1

SIBA 160000.0,125GT PV fuse SMD 0.125 A 1000 V DC Time delay -T- 1 pc(s)

Item no:3842423

Unavailable

Conrad Electronic

(L x W x H) 8.0 x 4.5 x 4.5 mm

125 mA

1000 V DC

PV fuse

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3842422 SIBA 160000.0,063GT PV fuse SMD 0.063 A 1000 V DC Time delay -T- 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3842422 SIBA 160000.0,063GT PV fuse SMD 0.063 A 1000 V DC Time delay -T- 1 pc(s)

Description

Can be used when high and only slowly decreasing inrush currents occur

This text is machine translated.

Description

Can be used when high and only slowly decreasing inrush currents occur

This text is machine translated.
