SIBA 160016.0,16GT SMD fuse SMD 0.16 A 125 V DC/AC Time delay -T- 1 pc(s)
Product type
SMD fuse
Nominal voltage
125 V DC/AC
Nominal current - rounded value
160 mA
Release characteristics
Time delay -T-
Type
SMD
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
SIBA SMD-fuse 160016 slow-blow 1,500A 305VAC 0,16A 16,4x4.4mm
- SMD fuse
- slow-blow
- Ceramic tube with filling
- Soldering heat resistance (according to IEC60068): 260°C, 10s
- REACH Art. 33: Contains lead CAS# 7439-92-1
Technical specifications
- Casing material: Ceramic
- Material of connectors: Brass, silver-plated
- Melting Integral: 8.6 A²/s.
- Rated breaking capacity 50 A.
- Voltage drop 120 mV
- Soldibility 260 °C / 10 s
- Product type
SMD fuse
- Nominal voltage
125 V DC/AC

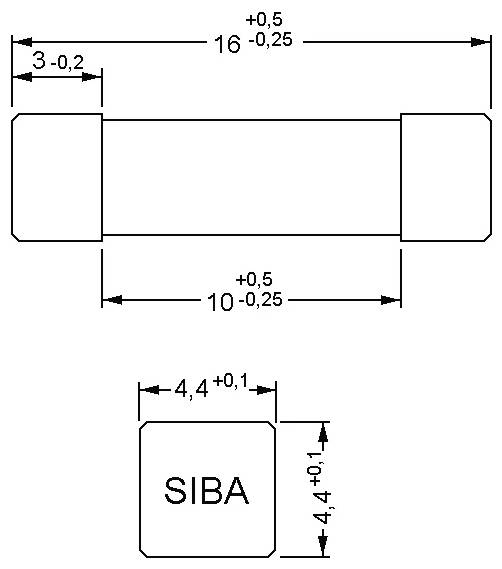

- Dim
(L x W x H) 16.0 x 4.4 x 4.4 mm
- Nominal current - rounded value
160 mA
- Nominal current
0.16 A
- Release characteristics
Time delay -T-
- Type
SMD
- Length
16.0 mm
- Width
4.4 mm
- Height
4.4 mm
- Content
1 pc(s)
- Type
160016.0,16GT
- Certification marks
IEC 60127-4/2, UL 248-14
- Weight
1.0 g
Documents & Downloads
Datasheet
Datasheet 3842431 SIBA 160016.0,16GT SMD fuse SMD 0.16 A 125 V DC/AC Time delay -T- 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3842431 SIBA 160016.0,16GT SMD fuse SMD 0.16 A 125 V DC/AC Time delay -T- 1 pc(s)
Description
To protect the devices and modules against high over and short circuit currents up to 4000A, such as a mains fuse
