SIBA 160016.10GT Micro fuse SMD 10.00 A 250 V AC Time delay -T- 1 pc(s)
Product type
Micro fuse
Nominal voltage
250 V AC
Nominal current - rounded value
10 A
Release characteristics
Time delay -T-
Type
SMD
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
SIBA SMD-fuse 160016 slow-blow 1,500A 250Vac 10A 16,4x4.4mm
- SMD fuse
- slow-blow
- Ceramic tube with filling
- Soldering heat resistance (according to IEC60068): 260°C, 10s
- REACH Art. 33: Contains lead CAS# 7439-92-1
Technical specifications
- Casing material: Ceramic tube, opaque
- Material: Nickel-plated brass connections
- Melting Integral: 370 A²/s.
- Rated breaking capacity 4,000 A.
- Voltage drop 90 mV
- Product type
Micro fuse
- Nominal voltage
250 V AC

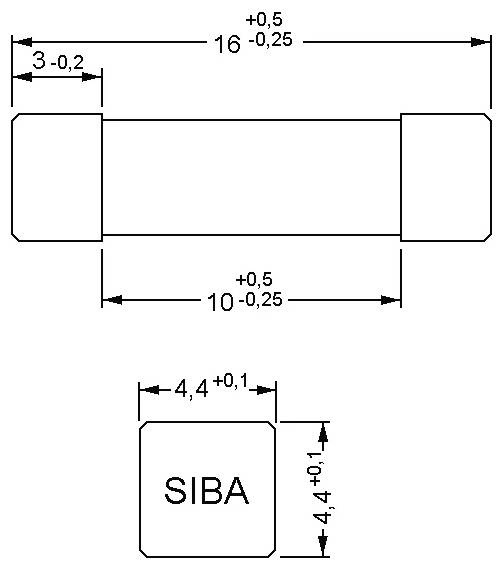

- Dim
(Ø x H) 5 mm x 4.4 mm
- Nominal current - rounded value
10 A
- Nominal current
10.00 A
- Release characteristics
Time delay -T-
- Type
SMD
- Length
20 mm
- Width
4.4 mm
- Height
4.4 mm
- (Ø)
5 mm
- Content
1 pc(s)
- Type
160016.10GT
- Certification marks
IEC 60127-4/2, UL 248-14
- Weight
1.1 g
Documents & Downloads
Datasheet
Datasheet 3843300 SIBA 160016.10GT Micro fuse SMD 10.00 A 250 V AC Time delay -T- 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3843300 SIBA 160016.10GT Micro fuse SMD 10.00 A 250 V AC Time delay -T- 1 pc(s)
Description
To protect the devices and modules against high over and short circuit currents up to 4000A, such as a mains fuse
