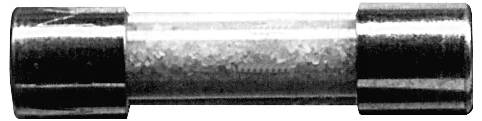

SIBA 5019906.2 Micro fuse (Ø x L) 5 mm x 20 mm 2.00 A 250 V AC Very quick acting -FF- Content 1 pc(s)
Product type
Micro fuse
Nominal voltage
250 V AC
Nominal current - rounded value
2 A
Release characteristics
Very quick acting -FF-
Length
20 mm
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
SIBA G-fuse link 10x38mm 5019906 super-quick 1.000VAC 1,000VDC 2A
- DC fuse link
- Ceramic tube, opaque with solvent filling
- This text is machine translated.
Technical specifications
- Housing material: Glass tube, transparent
- Material connections: Nickel-plated copper alloy
- Melting Integral: 1.5 A²/s.
- Rated breaking capacity 35 A.
- Voltage drop 130 mV
- Product type
Micro fuse
- Nominal voltage
250 V AC
- Dim
(Ø x L) 5 mm x 20 mm
- Nominal current
2.00 A
- Nominal current - rounded value
2 A
- Release characteristics
Very quick acting -FF-
- Length
20 mm
- (Ø)
5 mm
- Certification marks
UL 248-13
- Content
1 pc(s)
- Type
5019906.2
- Weight
10.0 g
Documents & Downloads
Datasheet
Datasheet 3842445 SIBA 5019906.2 Micro fuse (Ø x L) 5 mm x 20 mm 2.00 A 250 V AC Very quick acting -FF- Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3842445 SIBA 5019906.2 Micro fuse (Ø x L) 5 mm x 20 mm 2.00 A 250 V AC Very quick acting -FF- Content 1 pc(s)
