SIBA 7012540.12,5 SMD fuse 12.50 A 125 V DC/AC Very quick acting -FF- Content 10 pc(s)
Product type
SMD fuse
Nominal voltage
125 V DC/AC
Nominal current - rounded value
12.5 A
Release characteristics
Very quick acting -FF-
Content
10 pc(s)
Datasheet (PDF)
Part number:
Item no:
Highlights & Details

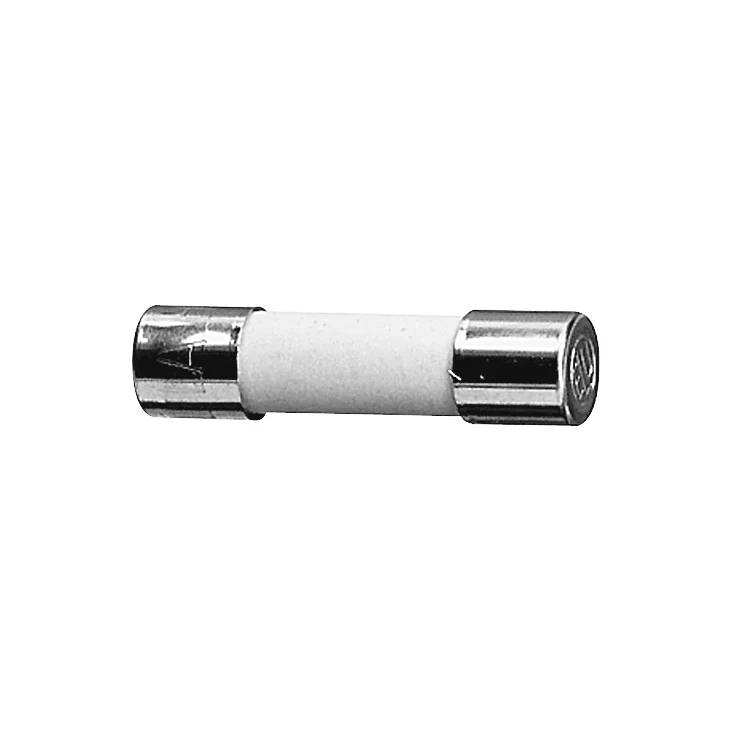

SIBA G-fuse link 6.3X32 mm 7012540 super-quick-blow 500VAC 12.5A
- Ceramic tube, opaque with solvent filling
Technical specifications
- Casing material: Ceramic
- Material of connectors: Brass, silver-plated
- Melting Integral: 0.073 A²/s.
- Rated breaking capacity 50 A.
- Voltage drop 180 mV
- Soldibility 260 °C / 10 s
- Product type
SMD fuse
- Nominal voltage
125 V DC/AC
- Nominal current
12.50 A
- Nominal current - rounded value
12.5 A
- Release characteristics
Very quick acting -FF-
- Content
10 pc(s)
- Type
7012540.12,5
- Weight
2.8 g
Documents & Downloads
Datasheet
Datasheet 3843501 SIBA 7012540.12,5 SMD fuse 12.50 A 125 V DC/AC Very quick acting -FF- Content 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3843501 SIBA 7012540.12,5 SMD fuse 12.50 A 125 V DC/AC Very quick acting -FF- Content 10 pc(s)
Description
As primary protection in devices
