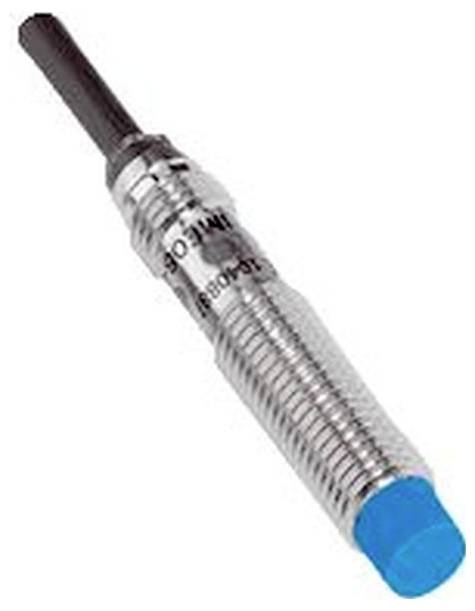

SICK Inductive proximity switch non-shielded PNP 1045368
Product type
Inductive proximity switch
Max. operating voltage
30 V
Outputs
PNP
Switching distance (max.)
2.5 mm
Connector
Cable
EAN:
Part number:
Item no:
Technical specifications
- Product type
Inductive proximity switch
- Type
1045368
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Outputs
PNP
- Switching distance (max.)
2.5 mm
- Switching frequency
4000 Hz
- Connector
Cable
- Installation type
non-shielded
- Material properties
nickel plated
- Enclosure material
Metal
- (Ø)
8 mm
- Dim
(Ø) 8 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818890 SICK Inductive proximity switch non-shielded PNP 1045368
Description
Inductive proximity sensors, IME, IME08-2N5PSZ5K, body type: Short design, switching distance Sn: 2.5 mm, mounting in metal: Not flush, electrical version: DC 3-conductor, switching output: PNP, switching function: NO, connection type: Wire, 3-wire, 5 m
