Image similar

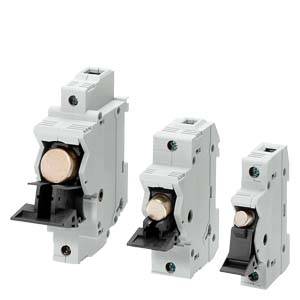

Siemens 3NC1492 Switch disconnector fuse 2-pin 50 A 690 V AC 3 pc(s)
EAN:
Part number:
Item no:
Product type
Switch disconnector fuse
Number of pins
2
Release characteristics
Very quick acting -FF-
Nominal current - rounded value
50 A
Type
Screw connector
Datasheet (PDF)
Technical specifications
- Mounting type: Front mountingFuse insert size: 14x51 mmCross-section/multi-wire connection: 1.5 mm² - 35 mm²
- Type
Screw connector
- Product type
Switch disconnector fuse
- Number of pins
2
- Release characteristics
Very quick acting -FF-
- RoHS-compliant
Yes
- Dim
(W x H x D) 54 x 69 x 95.5 mm
- Content
3 pc(s)
- Nominal current
50 A
- Nominal current - rounded value
50 A
- Nominal voltage
690 V AC
- Width
54 mm
- Height
69 mm
- Depth
95.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2813029 Siemens 3NC1492 Switch disconnector fuse 2-pin 50 A 690 V AC 3 pc(s)
User & Safety Instructions
User & Safety Instructions 2813029 Siemens 3NC1492 Switch disconnector fuse 2-pin 50 A 690 V AC 3 pc(s)
Description
SITOR backup switches 14x 51, up to 50A, 690V AC semiconductor fuses SITOR 3NE, 3NC protect power semiconductors from the effects of a short circuit. The SITOR fuse system from Siemens, an important component of the SENTRON protective components for electrical installations, provides effective protection for people, equipment and systems by safely switching off in case of overload and short circuit. The application area also includes frequency converters with fuses in the input and in the DC-DC link as well as UPS systems and soft starters for motors. The Siemens SITOR fuses feature: 1. Super-quick cut-off characteristics as compared to the conventional NH-fuses. 2. Power semiconductors are also protected safely in case of a short circuit. 3. The Siemens quality standard ensures very good characteristics. 4. SITOR cylinder fuses are approved in accordance with IEC and UL and, for the most part, CCC and can therefore be used worldwide. 5. Partially suitable for installation in NH fuse bases, in NH fuse switch disconnectors and switch disconnectors with fuses.
