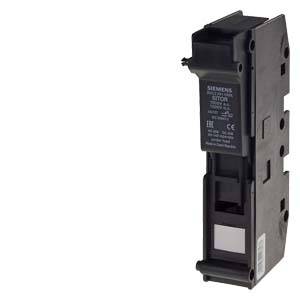

Image similar
Siemens 3NC23910MK Switch disconnector fuse 1-phase 1-pin 63 A 1500 V AC 4 pc(s)
Product type
Switch disconnector fuse
Number of pins
1
Release characteristics
Very quick acting -FF-
Nominal current - rounded value
63 A
Type
Screw connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Floor mountingFuse insert size: 22x127 mmProtection class: IP20Cross-section/multi-wire connection: 1 mm² - 50 mm²
- Type
Screw connector
- Product type
Switch disconnector fuse
- Number of pins
1
- Release characteristics
Very quick acting -FF-
- RoHS-compliant
Yes
- Dim
(L x W x H) 127 x 40 x 200 mm
- Content
4 pc(s)
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Model
1-phase
- Nominal voltage
1500 V AC
- Width
40 mm
- Height
200 mm
- Length
127 mm
- Depth
102 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2813035 Siemens 3NC23910MK Switch disconnector fuse 1-phase 1-pin 63 A 1500 V AC 4 pc(s)
User & Safety Instructions
User & Safety Instructions 2813035 Siemens 3NC23910MK Switch disconnector fuse 1-phase 1-pin 63 A 1500 V AC 4 pc(s)
Description
SITOR Fuseholder 22x 127 63A 1500V AC/DC 1000V 1-pin SITOR 3NE, 3NC protective fuses protect power semiconductors against the effects of a short circuit. The SITOR fuse system from Siemens, an important component of the SENTRON protective components for electrical installations, provides effective protection for people, equipment and systems by safely switching off in case of overload and short circuit. The application area also includes frequency converters with fuses in the input and in the DC-DC link as well as UPS systems and soft starters for motors. The Siemens SITOR fuses feature: 1. Super-quick cut-off characteristics as compared to the conventional NH-fuses. 2. Power semiconductors are also protected safely in case of a short circuit. 3. The Siemens quality standard ensures very good characteristics. 4. SITOR cylinder fuses are approved in accordance with IEC and UL and, for the most part, CCC and can therefore be used worldwide. 5. Partially suitable for installation in NH fuse bases, in NH fuse switch disconnectors and switch disconnectors with fuses.
