Name: Siemens 3NJ41833BF01 Switch disconnector fuse Fuse size = 3 910 A 690 V AC 1 pc(s)
Brand: Siemens
SKU: 2862213

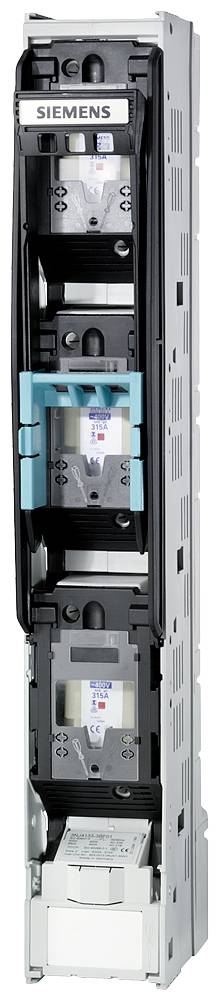

A vertically mounted Siemens protective switchgear box with multiple units and cable connections, suitable for industrial installation.

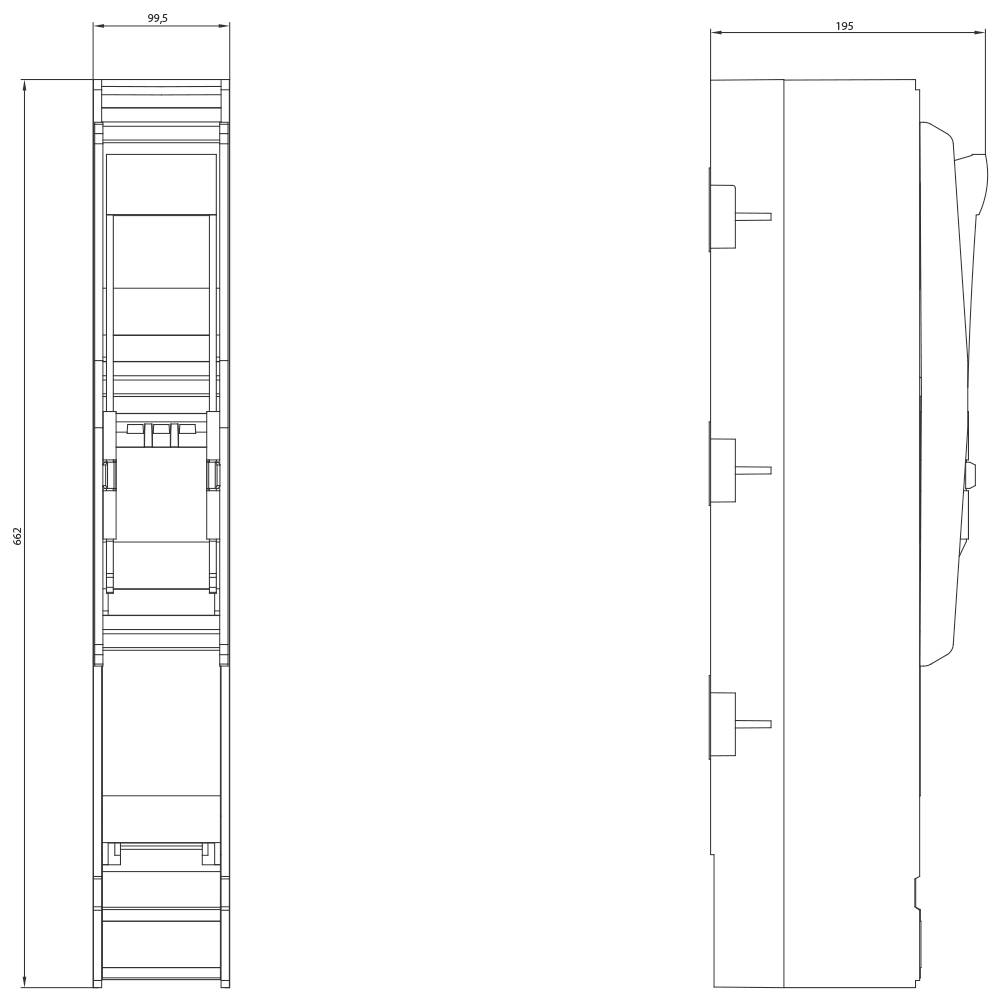

'Technical drawing of an electrical device with two views: Front view with dimensions 99.5 mm x 575 mm, side view 195 mm.'

1/2

Image similar

Product type

Switch disconnector fuse

Fuse size

Number of pins

Nominal current - rounded value

910 A

Type

In strip design

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design of electrical connection / for main circuit: Rail connectionElectrical connection arrangement / for main circuit: Flat connectionDesign of the device: For 185 mm busbar systemSlim terminal, 2 x M 12Suitable for use / switch disconnectors: YesSuitable for use: Transformer protectionMounting type: Permanent installationInbouwpositie loodrechtProtection class IP:IP30Ambient temperature / during operation / minimum: -25 °C.Ambient temperature / during operation / maximum: 55 °C.Power loss/maximum 260 W.Forward current (IC) / at 690 V / maximum permissible: 53 kAInsulation voltage 500 VRail center distance 185 mm

Type: In strip design

Product type: Switch disconnector fuse

Fuse size: 3

Number of pins: 3

RoHS-compliant: Yes

Dim: (W x H x D) 99.5 x 662 x 195 mm

Content: 1 pc(s)

Nominal current: 910 A

Nominal current - rounded value: 910 A

Nominal voltage: 690 V AC

Width: 99.5 mm

Height: 662 mm

Depth: 195 mm

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Fuse size

Nominal current - rounded value

Number of pins

Siemens 3NJ41833BF01 Switch disconnector fuse Fuse size = 3 910 A 690 V AC 1 pc(s)

Item no:2862213

Unavailable

Conrad Electronic

This article

910 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NC1091 Switch disconnector fuse 32 A 690 V AC, 800 V DC 12 pc(s)

Item no:2262479

Fast track dispatch on Tue 3 Nov

2 Set(s)Conrad Electronic

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

Siemens 3NJ41013BF01 Switch disconnector fuse Fuse size = 0 160 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862199

Unavailable

Conrad Electronic

160 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41033CF02 Switch disconnector fuse Fuse size = 00 160 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862200

Unavailable

Conrad Electronic

160 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41033CF12 Switch disconnector fuse Fuse size = 00 160 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862201

Unavailable

Conrad Electronic

160 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41213BF01 Switch disconnector fuse Fuse size = 1 250 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862202

Unavailable

Conrad Electronic

250 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41233BT01 Switch disconnector fuse Fuse size = 1 250 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862203

Unavailable

Conrad Electronic

250 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41233CF01 Switch disconnector fuse Fuse size = 1 250 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862204

Unavailable

Conrad Electronic

250 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41233CF11 Switch disconnector fuse Fuse size = 1 250 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862205

Unavailable

Conrad Electronic

250 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 3NJ41333BF01 Switch disconnector fuse Fuse size = 2 400 A 690 V AC, 440 V DC 1 pc(s)

Item no:2862206

Unavailable

Conrad Electronic

400 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2862213 Siemens 3NJ41833BF01 Switch disconnector fuse Fuse size = 3 910 A 690 V AC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2862213 Siemens 3NJ41833BF01 Switch disconnector fuse Fuse size = 3 910 A 690 V AC 1 pc(s)

Description

3-pole backup circuit breakers, for secondary protection of transformers up to 630kVA for NH fuses GTR 910A max., 400V AC, and NH3 disconnector up to 1250A The 3NJ4 fuse disconnector for low voltage distribution. The 3NJ4 1- or 3-pole switchable fuse switch disconnectors can be used in low-voltage distributors, power and transformer stations and cable distribution cabinets. The Siemens 3NJ4 fuse switch disconnectors are characterized above all by: 1. Complies with IEC/EN 60439-1 and IEC/EN 60947-3. 2. Voltage levels up to AC 690 V. 3. Parking position for maintenance work. 4. Vertical and horizontal installation position. 5. Climatic conditions. 6. Protection class IP30 with closed, IP10 with open grip inserts.
