Siemens 3RA6913-1A Auxiliary switch Compatible with (relay brand): Siemens Piece 1 pc(s)

Four switch modules with labelling '.1 NC, .2 NC, .3 NO, .4 NO', showing different switching states.
An open electrical cabinet reveals cables and electrical components. Machines are visible in the background through a rain-streaked window.

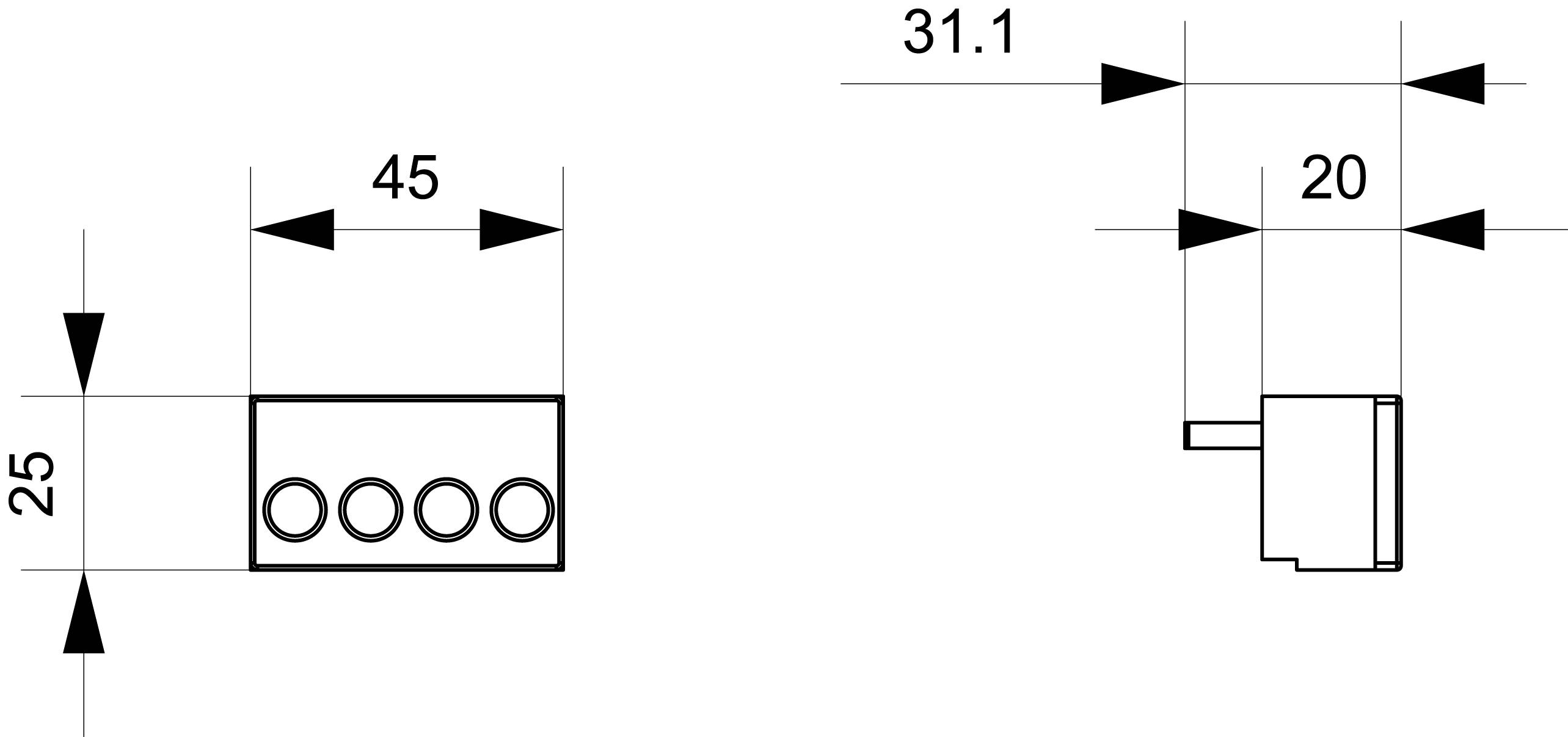

Technical drawing of a connector with four holes. Dimensions: Length 45 mm, Width 25 mm, Overall width 31.1 mm including plug, Plug height 20 mm.
1/3
Image similar
Product type
Auxiliary switch
Connection
Screws
Packaging type
Piece
Type
3RA6913-1A
Auxiliary contact type
1 maker
1 breaker
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Design: Compact branchStripped length: 10 mmTightening torque / for auxiliary contacts / with screw connection / minimum: 0.8 NmTightening torque / for auxiliary contacts / with screw connection / maximum: 1.2 NmDesign of the screw connection / for auxiliary contacts: M6Type of connectable wire cross-sections / with AWG lines / for auxiliary contacts: 2x (20 ... 16), 2x (18 ... 14), 1x 12Type of connectable conductor cross-sections / for auxiliary contacts / single-wire: Max. 2x (1 ... 4 mm²Type of connectable conductor cross-sections / for auxiliary contacts / fine-wired / with wire-end processing: 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²
Packaging type

Piece

Product type

Auxiliary switch

Type

3RA6913-1A

Auxiliary contact type

1 maker

1 breaker

Compatible with

Siemens

Compatible with series

Siemens Sirius series

Mounting type

Push-fit

Connection

Screws

IP20

Min. temperature

-20 °C

Max. temperature

+60 °C

Width

45 mm

Height

32 mm

Depth

25 mm

Dim

(W x H x D) 45 x 32 x 25 mm

Content

1 pc(s)

RoHS-compliant

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2862251 Siemens 3RA6913-1A Auxiliary switch Compatible with (relay brand): Siemens Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2862251 Siemens 3RA6913-1A Auxiliary switch Compatible with (relay brand): Siemens Piece 1 pc(s)

Description

Auxiliary switch 1 NC 1 NO Contact Control circuit connection: Screw terminals Easy, efficient, always up-to-date - the SIRIUS system kit.
