Buy Siemens 3RH2131-1AP00 Contactor 230 V AC 10 A 1 pc(s)

Server cabinet with an open door, showing organised electronic components and cables for network management and data communication.

Diagram of the components of an auxiliary contactor system, showing various modules, their connections and associated adapters in a circuit.

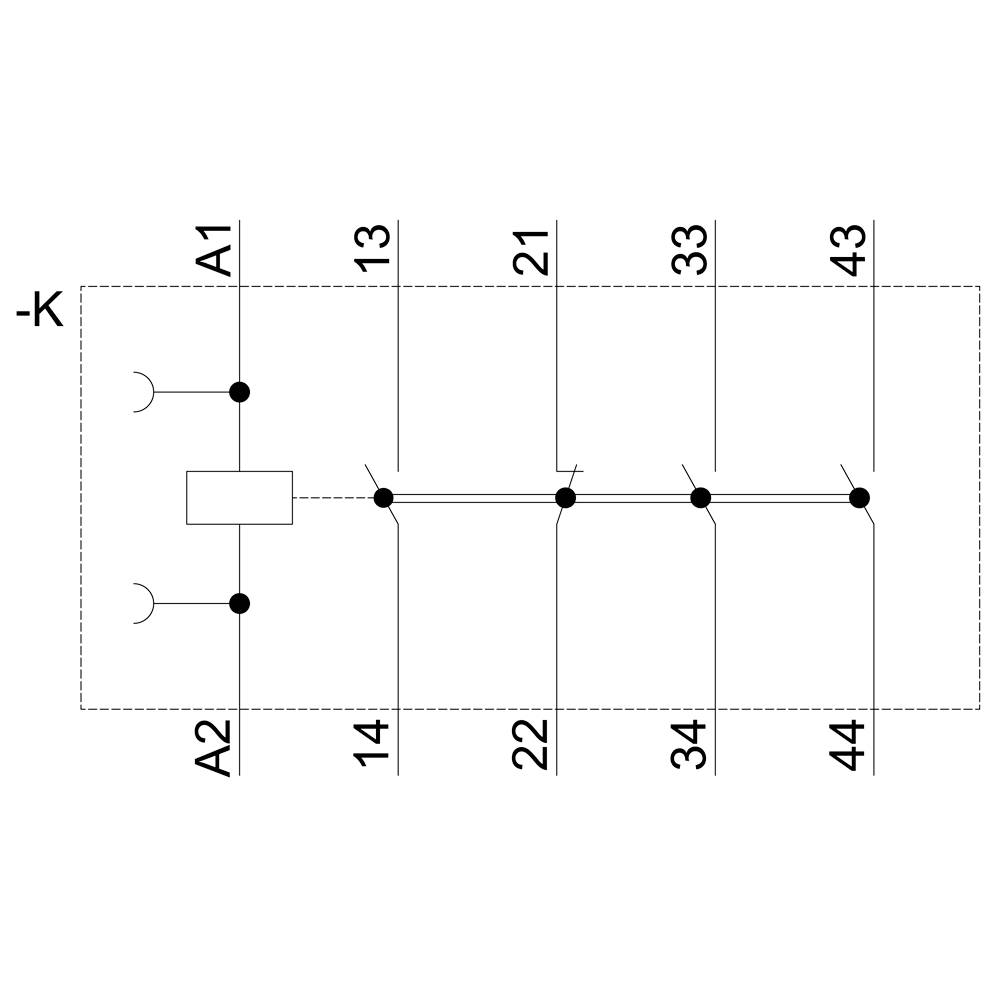

Circuit diagram shows a relay logic with coil terminals A1 and A2, four switch pairs at 14-44. Diagram for electrical control.

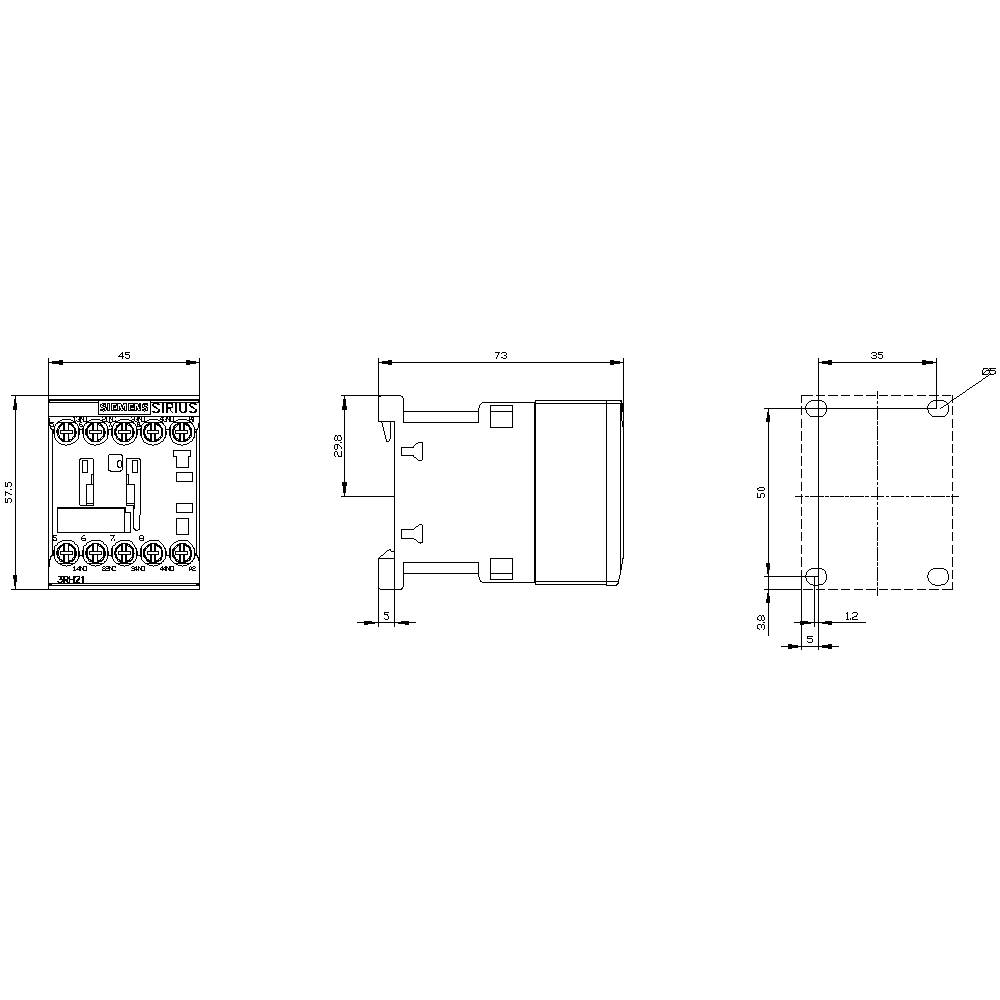

Technical drawing of an electrical component with front, side, and top view. Dimensions specified in millimetres.

1/5

Application

Product type

Contactor

No. of pins

4-pin

Nominal voltage

230 V AC

Current load

10 A

Connection

Screw terminal

Datasheet (PDF)

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 37.81 / piece)

€

Report legal concerns

Technical specifications

Auxiliary contactor, 3 NO + 1 NC, 230 V AC, 50 / 60 Hz, size S00, SIRIUS 3RH2 auxiliary contactor screw connection for switching the control signals in the control circuit. The SIRIUS 3RH2 contactor relays have standardized connection designations and reliable and time-saving connection technology. Output reproduction allows the simultaneous switching of several auxiliary circuits. All contacts are also available as SUVA versions with guidance for safety applications. The contactor relays are climate-proof, have a high contact reliability and are suitable for worldwide use by appropriate approvals (e.g. IEC and UL/CSA). They are available in AC or DC operation and are available with screw or spring-loaded technology. The basic version of the contactor relays is 4-pole and can be expanded up to 8 poles by means of snap-on auxiliary switch blocks. The extensive accessories of the 3RT2 contactors for sizes S00 to S3 can also be used for the 3RH2 contactor relays. The 3RH2 contactor relays replace the proven 3RH1 series. Simple, efficient, always up-to-date - the SIRIUS modular system.

Product type: Contactor

Type: 3RH2131-1AP00

Type: S00

No. of pins: 4-pin

Auxiliary contact type: 3 makers
1 breaker

Nominal voltage: 230 V AC

Current load: 10 A

Mounting type: DIN rail

Connection: Screw terminal

Durability: 3.0E7

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 57.5 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 57.5 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 3

: 1

: 3 A

: 230-230 V

: 230-230 V

: FALSE

: Screw connection

: AC

Documents & Downloads

Datasheet

Datasheet 1431144 Siemens 3RH2131-1AP00 Contactor 230 V AC 10 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1431144 Siemens 3RH2131-1AP00 Contactor 230 V AC 10 A 1 pc(s)

Description

Auxiliary contactor, 3 NO + 1 NC, 230 V AC, 50 / 60 Hz, size S00, auxiliary relay SIRIUS 3RH2 screw terminal for switching the control signals in the control circuit.
The SIRIUS 3RH2 contactor relays have standard connection designations and reliable and time-saving connection technology. The simultaneous switching of several auxiliary circuits is possible through output multiplication. All contacts are also available as SUVA variants with positive guidance for safety applications. The auxiliary contactors are climate-proof, have high contact reliability and are suitable for worldwide use with appropriate approvals (e.g. IEC and UL/CSA).
They are available in AC or DC operation and are available with screw or spring-type tension technology. The basic version of the auxiliary contactor is 4 pole and can be expanded to 8 pole by snap-on auxiliary switch.
The extensive accessories of 3RT2 contactors for sizes S00 to S3 can also be used for 3RH2 contactor relays.
3RH2 contactor relays replace the tried and tested 3RH1 series.
Simple, efficient, always up-to-date - the SIRIUS modular system.
