Siemens 3RQ2000-1CW00 3 change-overs 1 pc(s)

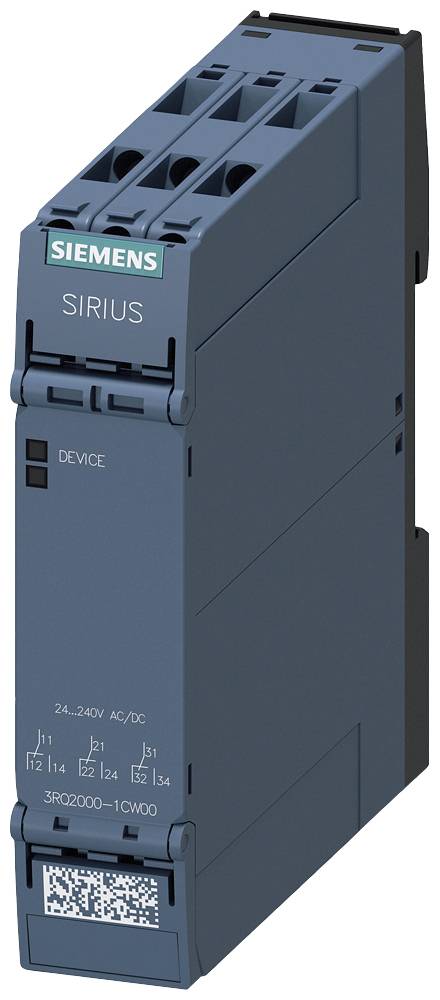

A blue industrial device with the inscription 'Siemens Sirius'. It is a compact starter unit for electrical circuits and control systems.

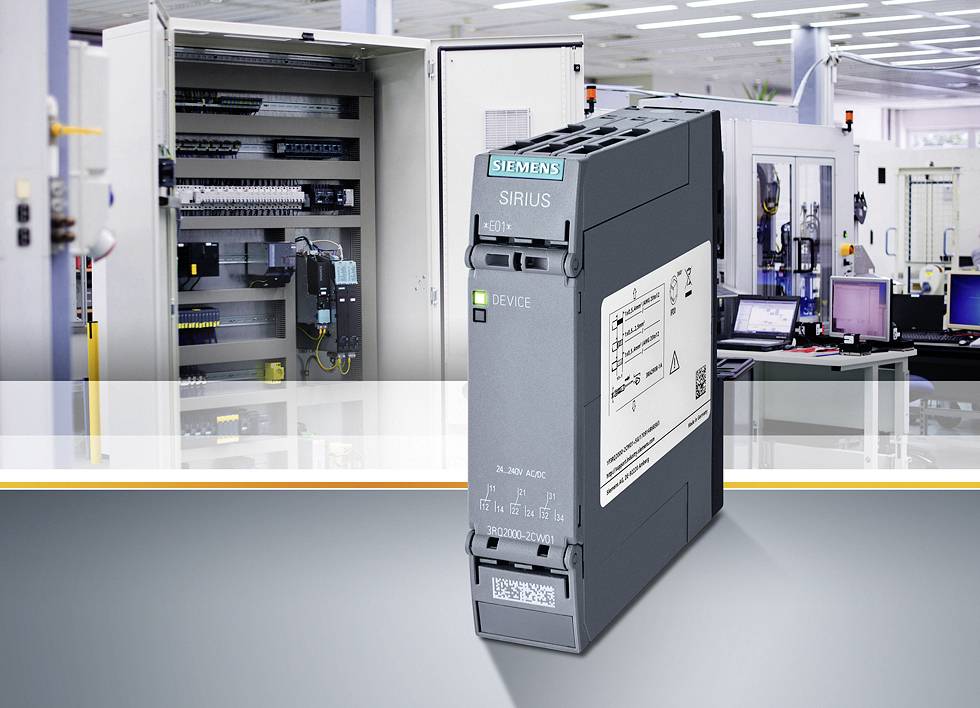

Industrial control unit in front of an open electrical cabinet. In the background, a modern office environment with computers.

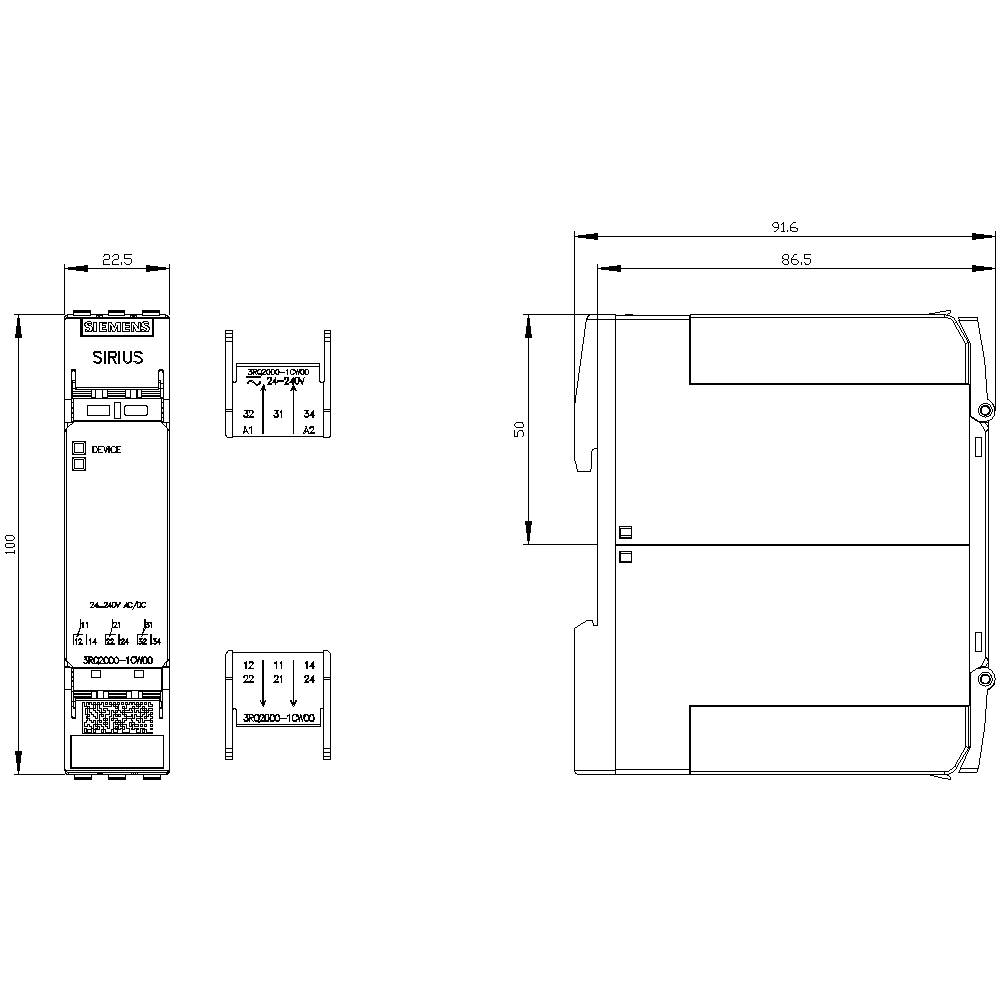

'Technical drawing of a SIRIUS device, showing dimensions of 22.5 mm width, 100 mm height and 91.6 mm depth.'

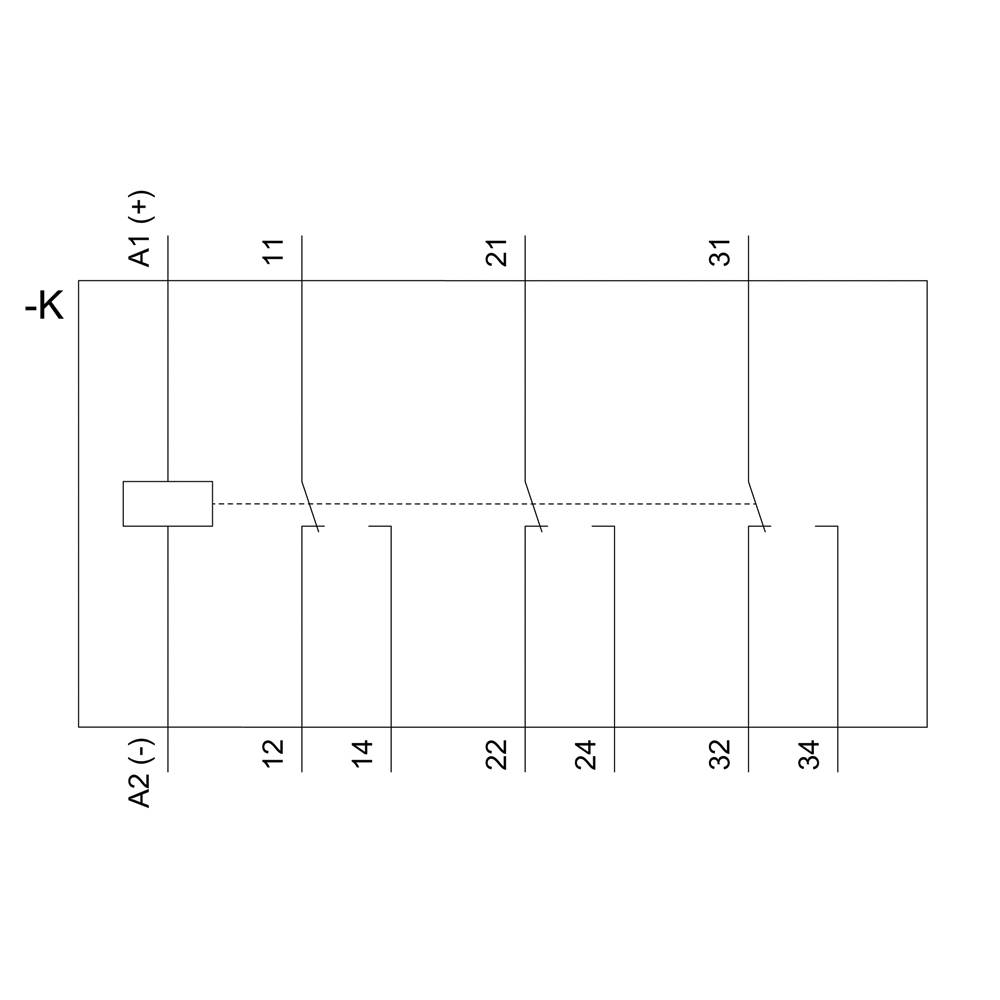

Wiring diagram of an electrical relay switch with connections: A1(+) and A2(-) and additional contacts 11, 12, 21, 22, 31, 32.
1/4
Image similar
Contact type
3 change-overs
Switching voltage (max.)
240 V DC/AC
Type
3RQ2000-1CW00
Contact material
Gold plated
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Type

3RQ2000-1CW00

Contact type

3 change-overs

Contact material

Gold plated

Switching voltage (max.)

240 V DC/AC

Content

1 pc(s)

RoHS-compliant

Yes

22.5

100 mm

90 mm

FALSE

Polarized

Mono stable

FALSE

FALSE

Screw connection

IP20

AC/DC

0

0

3

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2870255 Siemens 3RQ2000-1CW00 3 change-overs 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2870255 Siemens 3RQ2000-1CW00 3 change-overs 1 pc(s)
