Siemens 3RS2600-1BW30 3RS26001BW30 Thermal control relay No. of relay outputs: 2

Industrial component: Electronic device by Siemens, model 'SIRIUS', front-mounted buttons and display for settings and error messages.
An open electrical cabinet with various electrical components and wiring. At the top, a signal lamp displays status indicators.

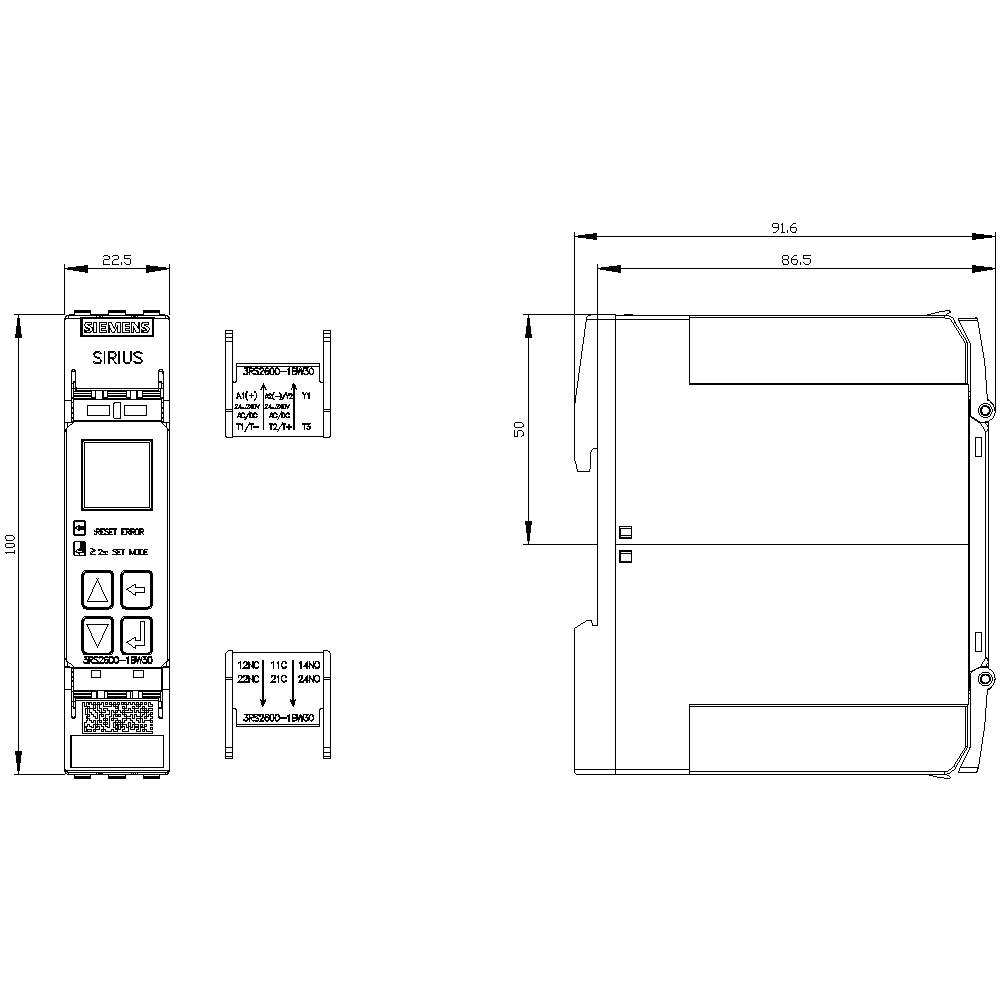

Technical drawing of an electrical device with dimensions. Left-hand view shows controls, front display and product labelling 'SIRIUS'.

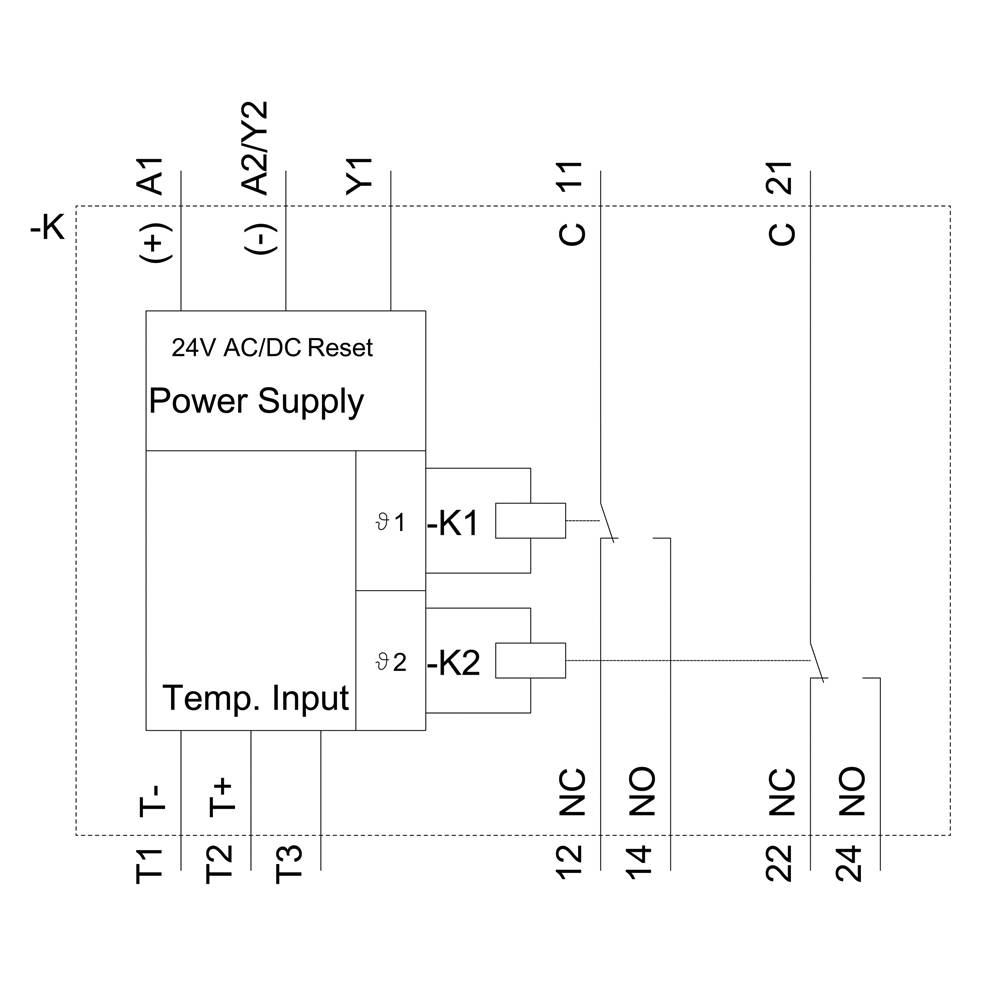

Circuit diagram of a power supply system with 24V AC/DC reset. Shows connections for 2 relays (K1, K2) and temperature input.
1/4
Image similar
Product type
Thermal control relay
No. of relay outputs
2
Type
3RS2600-1BW30
Probe inputs
alle gängigen Fühlertypen. wie z.B. PT100. PT1000. KTY. NTC. Thermoelement
Width
22.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Type

3RS2600-1BW30

Product type

Thermal control relay

No. of relay outputs

2

Probe inputs

alle gängigen Fühlertypen. wie z.B. PT100. PT1000. KTY. NTC. Thermoelement

Width

22.5 mm

22.5

100 mm

90 mm

TRUE

1

TRUE

Screw connection

AC/DC

0

0

2

UKCA

not relevant
