Siemens 3RT1363-6AP36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): S

EAN:
Part number:
Item no:
'A Siemens SIRIUS series electrical contactor, with four connection terminals, typical component for industrial applications.'

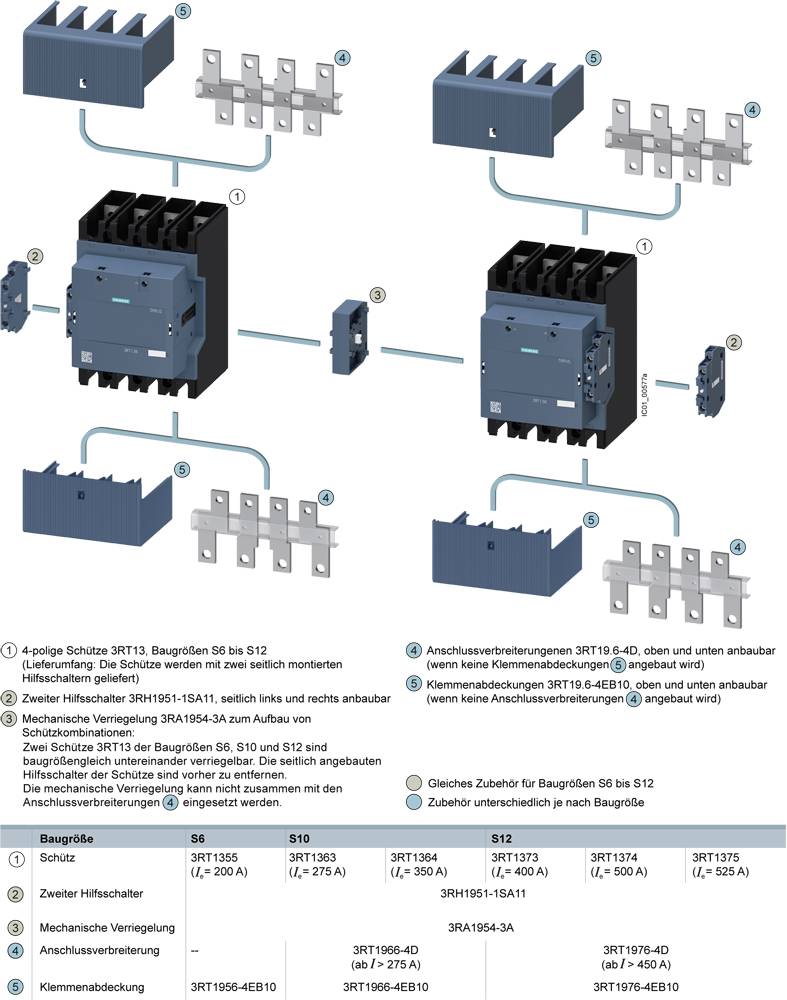

Diagram shows wired contactors 3RT1 from size S0 to S12 with connection instructions and accessories, including terminal adapters.

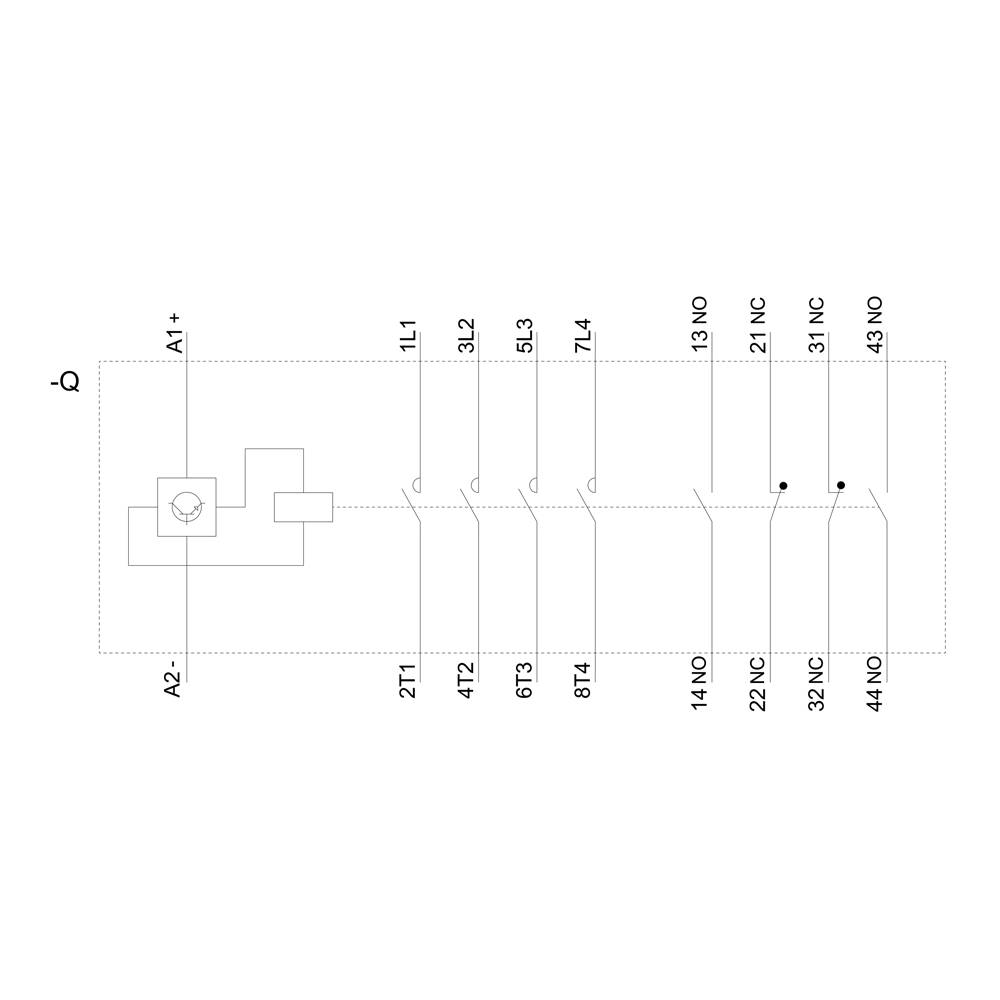

Circuit diagram of an electrical system with multiple components, marked from 1L1 to 44 NO. Connections are represented by lines.

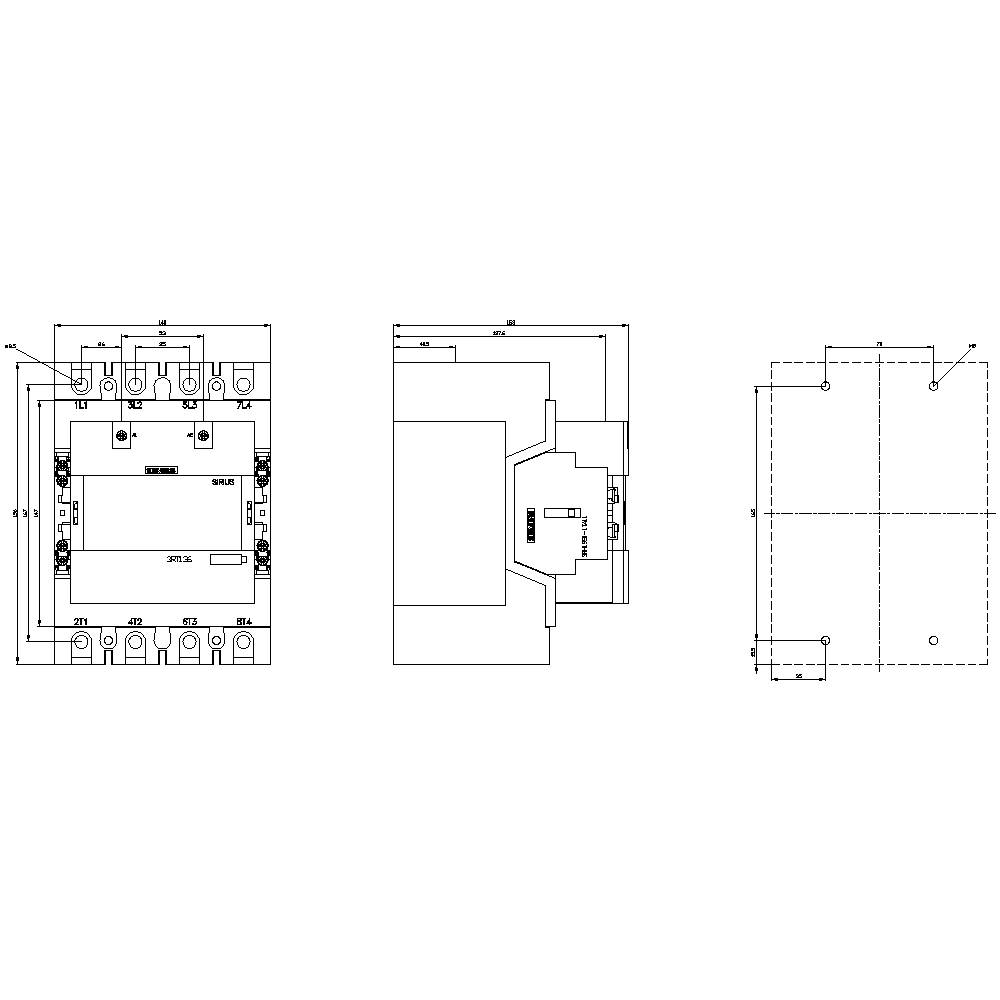

Technical drawing of an electrical switching device with front, side, and top view representation. Dimensions and connection details are provided.
1/4
Image similar
Product type
Contactor
No. of pins
4-pin
Nominal voltage
1000 V
Power
90000 W
Connection
Screws
Terminal strip
Datasheet (PDF)
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Number of NO contacts/on the contactor/for auxiliary contacts: 2
  • Number of NO contacts / for main contacts: 4
  • Number of NO contacts / for auxiliary contacts: 2
  • Number of NO contacts / for auxiliary contacts / can be installed: 2
  • Number of NO contacts / for auxiliary contacts / instantaneous switching: 2
  • Number of NC /on contactor/for auxiliary contacts: 2
  • Number of NC /for auxiliary contacts: 2
  • Number of NC contacts / for auxiliary contacts / can be installed: 2
  • Number of NC contacts / for auxiliary contacts / instantaneous switching: 2
  • Operating current at AC-1 / at 400 V / at ambient temperature 40 °C: 275 A
  • Operating current at AC-3 / at 400 V: 190 A
  • Tightening capacity of the magnetic coil at DC 190 W.
  • Type of connectable wire cross-sections / for AWG lines / for auxiliary contacts: 1x (18 ... 14), 2x (18 ... 14)
  • Installation height at height above sea level / maximum: 2000 m.
  • Range installation: Yes
  • Front contact protection: Finger-proof in vertical contact from the front with frame terminal/cover
  • Insulation voltage of main circuit at pollution level 3: 1000 V.
  • Mirror contact: Yes
  • Protection type: Front IP20 with cover
  • Main circuit surge resistance: 8 kV
  • Product extension / auxiliary switch: Yes
Product type

Contactor

Type

3RT1363-6AP36

Type

S10

No. of pins

4-pin

Contact type

2 makers

2 breakers

Nominal voltage

1000 V

Control voltage (min.)

100 V AC

100 V DC

Control voltage (max.)

250 V AC

250 V DC

Control voltage range

100, 100 - 250, 250 V AC, V DC

Max. switching capacity

90000 W

Permanent current (max.)

275 A

90000 W

Compatible with

Siemens

Compatible with series

Siemens Sirius series

Features

+ auxiliary contact

Mounting type

Screw-fit

Connection

Screws

Terminal strip

Response time

80 ms

Fall time

60 ms

IP00

Min. temperature

-40 °C

Max. temperature

+60 °C

Width

140 mm

Height

196 mm

Depth

153 mm

Dim

(W x H x D) 140 x 196 x 153 mm

Content

1 pc(s)

RoHS-compliant

Yes

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2863526 Siemens 3RT1363-6AP36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): S

User & Safety Instructions

User & Safety Instructions 2863526 Siemens 3RT1363-6AP36 Contactor 2 makers, 2 breakers 90000 W 1000 V + auxiliary contact Compatible with (relay brand): S

Description

Sluice, AC-1, 275 a/400 V/40 °C, S10, 4-pin, AC/DC 100-250V, 2S+2Ö, Connection rails/ screw connection simple, efficient, always up-to-date - the SIRIUS system components.
