Siemens 3RT1373-6AR36 Contactor 2 makers, 2 breakers 132000 W 1000 V + auxiliary contact Compatible with (relay brand):

EAN:
Part number:
Item no:
A Siemens electrical circuit breaker. It has three poles and is designed for the protection of electrical circuits.

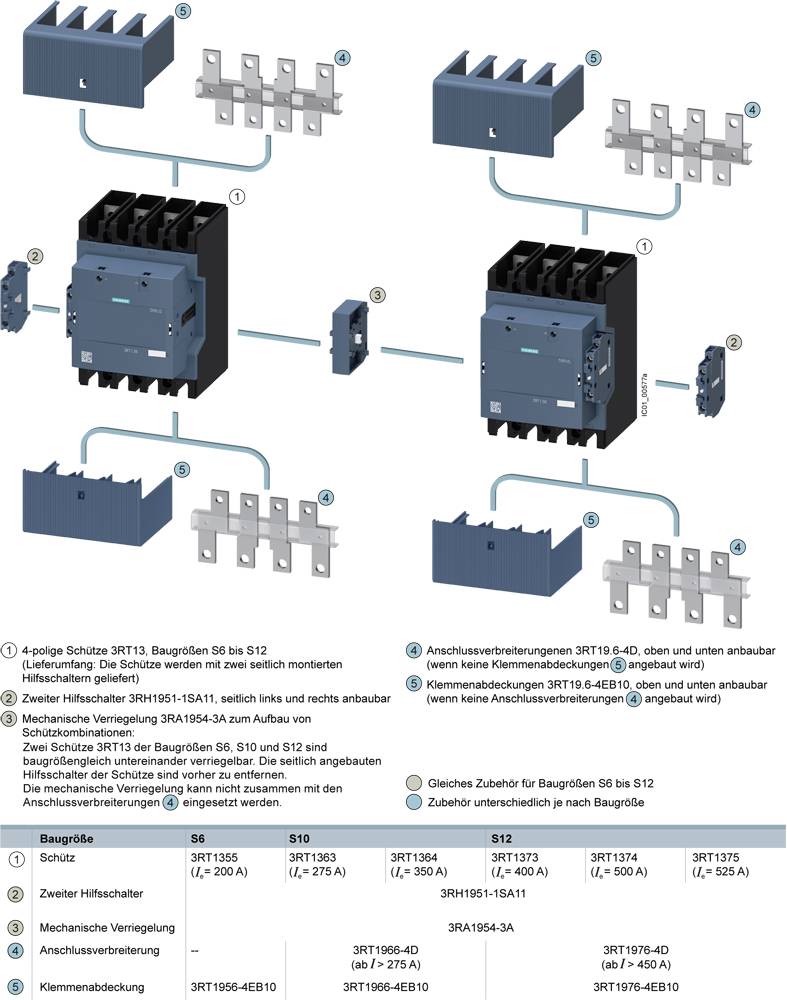

Circuit diagram of a 4-pole contactor '3RT13', Series 58 to 512, with mounting and connection instructions as well as accessory details.

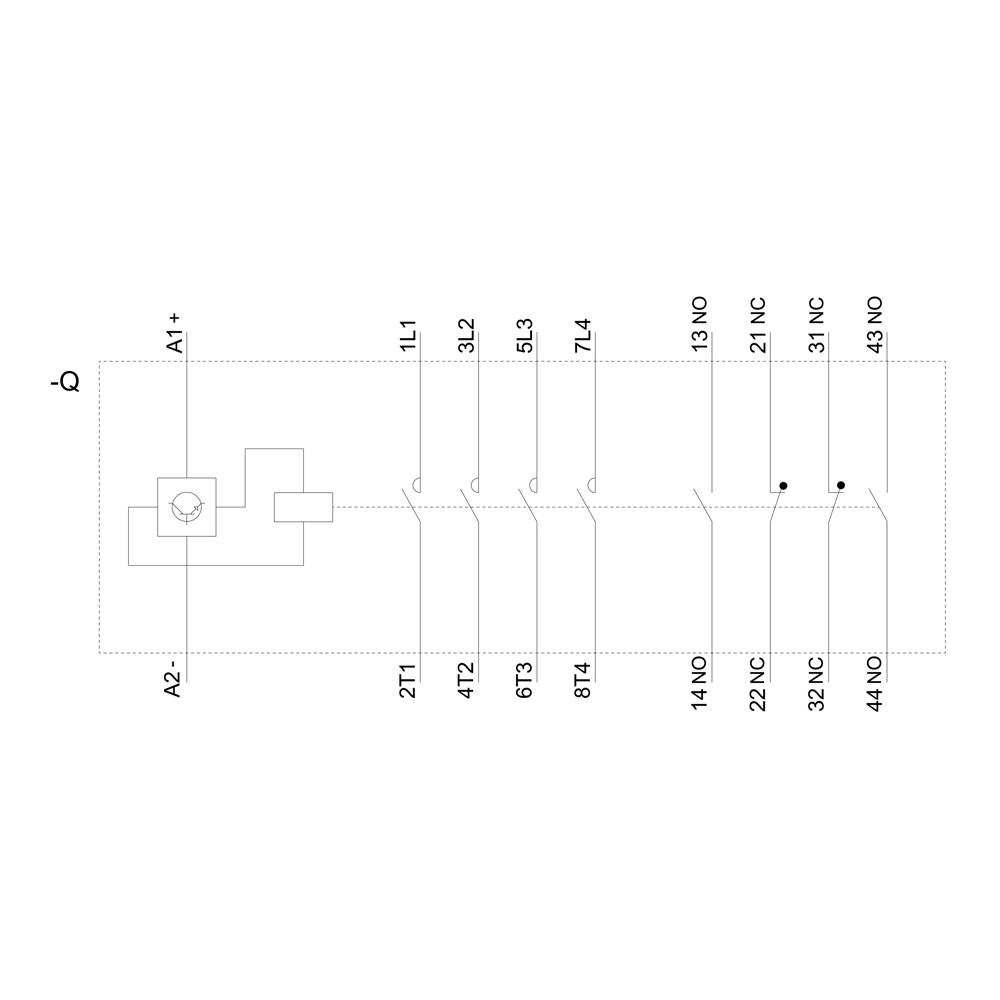

Circuit diagram of an electrical circuit with a series of contacts, labelled as 1L1, 2T1, 4T2, 6T3, 8T4 and 14NO to 44NO.

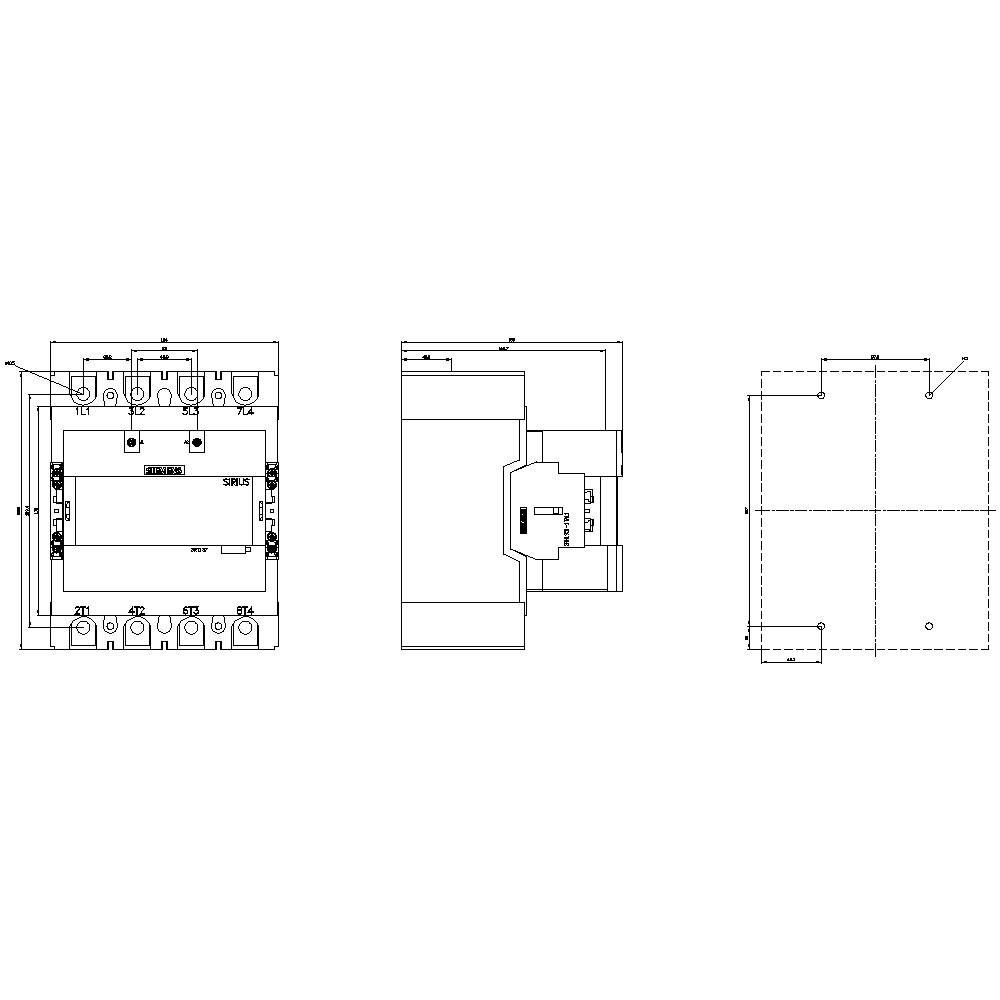

Technical drawing of an electrical switch showing front, side, and top views. Displays connections and mounting details.
1/4
Image similar
Product type
Contactor
No. of pins
4-pin
Nominal voltage
1000 V
Power
132000 W
Connection
Screws
Terminal strip
Datasheet (PDF)
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Number of NO contacts/on the contactor/for auxiliary contacts: 2
  • Number of NO contacts / for main contacts: 4
  • Number of NO contacts / for auxiliary contacts: 2
  • Number of NO contacts / for auxiliary contacts / can be installed: 2
  • Number of NO contacts / for auxiliary contacts / instantaneous switching: 2
  • Number of NC /on contactor/for auxiliary contacts: 2
  • Number of NC /for auxiliary contacts: 2
  • Number of NC contacts / for auxiliary contacts / can be installed: 2
  • Number of NC contacts / for auxiliary contacts / instantaneous switching: 2
  • Operating current at AC-1 / at 400 V / at ambient temperature 40 °C: 400 A
  • Operating current at AC-3 / at 400 V: 265 A
  • Tightening capacity of the magnetic coil at DC 600 W.
  • Type of connectable wire cross-sections / for AWG lines / for auxiliary contacts: 1x (18 ... 14), 2x (18 ... 14)
  • Installation height at height above sea level / maximum: 2000 m.
  • Range installation: Yes
  • Front contact protection: Finger-proof in vertical contact from the front with frame terminal/cover
  • Insulation voltage of main circuit at pollution level 3: 1000 V.
  • Mirror contact: Yes
  • Protection type: Front IP20 with cover
  • Main circuit surge resistance: 8 kV
  • Product extension / auxiliary switch: Yes
Product type

Contactor

Type

3RT1373-6AR36

Type

S12

No. of pins

4-pin

Contact type

2 makers

2 breakers

Nominal voltage

1000 V

Control voltage (min.)

250 V AC

250 V DC

Control voltage (max.)

500 V AC

500 V DC

Control voltage range

250, 250 - 500, 500 V AC, V DC

Max. switching capacity

132000 W

Permanent current (max.)

400 A

132000 W

Compatible with

Siemens

Compatible with series

Siemens Sirius series

Features

+ auxiliary contact

Mounting type

Screw-fit

Connection

Screws

Terminal strip

Response time

80 ms

Fall time

60 ms

IP00

Min. temperature

-40 °C

Max. temperature

+60 °C

Width

184 mm

Height

225 mm

Depth

180 mm

Dim

(W x H x D) 184 x 225 x 180 mm

Content

1 pc(s)

RoHS-compliant

Yes

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2863535 Siemens 3RT1373-6AR36 Contactor 2 makers, 2 breakers 132000 W 1000 V + auxiliary contact Compatible with (relay brand):

User & Safety Instructions

User & Safety Instructions 2863535 Siemens 3RT1373-6AR36 Contactor 2 makers, 2 breakers 132000 W 1000 V + auxiliary contact Compatible with (relay brand):

Description

Sluice, AC-1, 400 a/400 V/40 °C, S12, 4-pin, AC/DC 250-500V, 2S+2Ö, Connection rail/ Screw connection Simple, efficient, always up-to-date - the SIRIUS system components.
